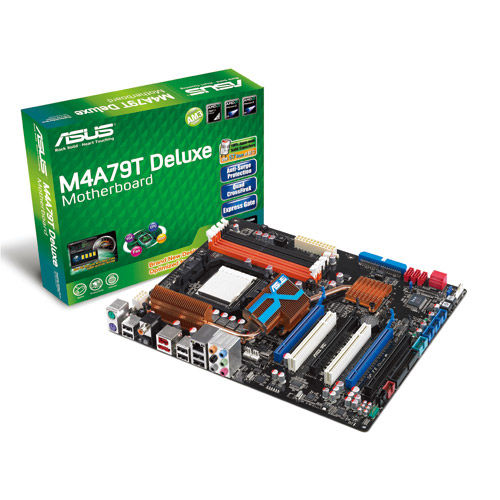

ASUS M4A79T Deluxe Socket AM3 ATX
Brand: ASUS · SKU: M4A79TDELUXE · MPN: M4A79TDELUXE · Category: Components
ASUS M4A79T Deluxe, AMD, Socket AM3, 16 GB, ECC & Non-ECC, 0, 1, 5, 10, JBOD, Gigabit Ethernet. ASUS M4A79T Deluxe Socket AM3 ATX (part number M4A79TDELUXE) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, bios type AMI, audio chip Realtek ALC1200, raid levels 0, 1, 5, 10, JBOD, microphone in Yes, cd/aux audio in Yes, expansion slots 2 x PCI 2.2. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| BIOS type | AMI |
| Audio chip | Realtek ALC1200 |
| RAID levels | 0, 1, 5, 10, JBOD |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| Expansion slots | 2 x PCI 2.2 |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Drivers included | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 1 |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 4 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
AMD® Phenom™ II/ Athlon™ X4/ Athlon™ X3/Athlon™ X2 processors (socket AM3) AMD® Phenom™ II/ Athlon™ X4/ Athlon™ X3/Athlon™ X2 processors (socket AM3) This motherboard supports AMD® Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process. Native DDR3 1066(O.C.) Support This motherboard supports native DDR3 1600(O.C.) that provides faster data transfer rate and more bandwith to increase memory computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications. * DDR3 1600(O.C.) is supported by AM3 CPUs only. Refer to www.asus.com for the supported CPU models. AMD 790FX Chipset AMD 790FX Chipset is designed to support up to 5200MT/s HyperTransport™ 3.0 (HT 3.0) interface speed and quad PCI Express™ 2.0 x16 graphics. It is optimized with AMD latest AM3 and multi-core CPUs to provide excellent system performance and overclocking capabilities. PCIe 2.0 support This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance. ATI CrossFireX™ Technology ATI’s CrossFireX™ boosts image quality along with rendering speed, eliminating the need to scale down screen resolution to get high quality images. CrossFireX™ allows higher anti-aliasing, anisotropic filtering, shading, and texture settings. Adjust your display configurations, experiment with the advanced 3D settings, and check the effects with a real-time 3D-rendered previews within ATI Catalyst™ Control Center. EPU The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power in real-time. It automatically provides the most appropriate power usage for the CPU, VGA card, hard drives, and CPU/chassis fans- helping save power and money! *ASUS EPU is supported by AM2+/AM3 CPU only. AI Nap With AI Nap, the system can continue running at minimum power and noise when you are temporarily away. To wake the system and return to the OS environment, simply click the mouse or press a key. Express Gate Taking only 5 seconds to bootup, Express Gate is the one-stop gateway to instant fun! It´s a unique motherboard built-in OS. You can utilize the most popular Instant Messengers (IM) like MSN, Skype, Google talk, QQ, and Yahoo! Messenger to keep in touch with friends, or quickly check on the weather and e-mails just before leaving your house. What´s more, the user-friendly picture manager lets you view your pictures without entering Windows at anytime! *The actual boot time is subject to hardware configurations and product models. Stack Cool 2 ASUS Stack Cool 2 is a fan-less and zero-noise cooling solution that lowers the temperature of critical heat generating components. The motherboard uses a special design on the printed circuit board (PCB) to dissipate heat these critical components generate. ASUS Q-Fan 2 ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation. Aesthetic Heat- pipe Lowers Temperatures by up to 10°C The aesthetic heat- pipe design effectively directs the heat generated by the chipsets to the heatsink near the back I/O ports - where it can be carried away by existing airflows from the CPU or a bundled optional fan. This innovative and groundbreaking fanless heat pipe design effectively lowers temperatures by up to 10°C without having lifetime problems that a normal chipset fan has. Furthermore, it provides options for users to install side-flow fans or a passive cooler. This Heat Pipe design is the most reliable fanless thermal solution to date. Noise Filter This feature detects repetitive and stationary noises (non-voice signals) like computer fans, air conditioners, and other background noises then eliminates it in the incoming audio stream while recording. SATA on the Go The motherboard supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. The external SATA port located at the back I/O provides smart setup and hot-plug functions. Easily backup photos, videos and other entertainment contents on external devices. IEEE 1394a interface IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices. High Definition Audio Enjoy high-end sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking funct
Key Features
ASUS M4A79T Deluxe. Processor manufacturer: AMD, Processor socket: Socket AM3. Maximum internal memory: 16 GB, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 5, 10, JBOD. Networking features: Gigabit Ethernet. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC1200
