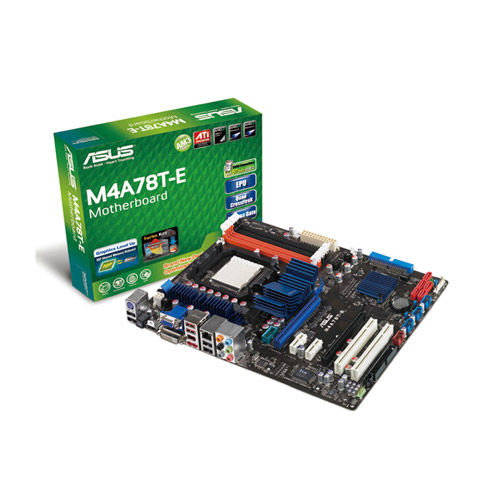

ASUS M4A78T-E motherboard AMD 790GX Socket AM3 ATX

Specifications

Product Description

CPU, Chipset and Graphics Features AMD® Phenom™ II/Athlon™ II/ Sempron™ 100 Series Processors (socket AM3) This motherboard supports AMD® Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process. SidePort Memory This motherboard features SidePort Memory, an individual onboard DDR3 memory serving as memory buffer for integrated graphics. With low CPU usage, the SidePort Memory provides integrated graphics acceleration and effectively boosts graphics performance. Dual-Channel DDR3 1600(O.C.) The motherboard supports DDR3 memory that features data transfer rates of 1600(O.C.)/1333/1066 MHz to meet the higher bandwidth requirements of the latest operation system, 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture doubles the bandwidth of your system memory to boost system performance, eliminating bottlenecks with peak bandwidths of up to 25.6 GB/s. Furthermore, the supply voltage for the memory is reduced from 1.8 V for DDR2 to just 1.5 V for DDR3. This voltage reduction limits the power consumption and heat generation of DDR3 which makes it an ideal memory solution. Hybrid CrossFireX™ Support Boosted Performance with onboard GPU and discrete graphics card ATI Hybrid CrossFireX™ technology is a unique hybrid multi-GPU technology. It takes your gaming experience to the next level boosting PC performance by enabling the chipset’s integrated graphics processor and a discrete GPU to operate simultaneously with combined output for blisteringly-fast frame rates unleashing the graphics performance * Visit www.amd.com for the Hybrid CrossFireX selected GPUs. AMD® 790GX / SB750 AMD® 790GX / SB750 Chipset is designed to support up to 5200MT/s HyperTransport™ 3.0 (HT3.0) interface speed and PCI Express™ 2.0 x 16 graphics. It is optimized with AMD´s latest AM3 and multi-core CPUs to provide excellent system performance and overclocking capabilities. ATI CrossFireX™ Technology ATI’s CrossFireX™ boosts image quality along with rendering speed, eliminating the need to scale down screen resolution to get high quality images. CrossFireX™ allows higher anti-aliasing, anisotropic filtering, shading, and texture settings. Adjust your display configurations, experiment with the advanced 3D settings, and check the effects with a real-time 3D-rendered previews within ATI Catalyst™ Control Center. HDMI/DVI/RGB Support Flexible Graphics Alternatives This motherboard supports multiple digital and analog display output interfaces - HDMI, DVI, and D-Sub. With such diversity of display outputs, you are able to choose and upgrade display devices freely. ASUS Power Solutions 8+1 Phase Power Design To fully unleash the next-generation AM3 CPU´s potential, the ASUS M4 Series motherboards have adopted a brand new 8-phase VRM power design. It delivers high power efficiency and supreme overclocking ability. Furthermore, high quality power components can effectively lower system temperature to ensure longer component lifespan. This series also features an extra 2 (or 1) phase power dedicated to integrated memory/HT controller. ASUS Anti-Surge Protection This special design prevents expensive devices and the motherboard from damage caused by power surges. ASUS Overclocking Tools TurboV Feel the adrenaline rush of real-time O.C. - now a reality with the ASUS TurboV. This easy O.C. tool allows you to overclock without exiting or rebooting the OS; and its user-friendly interface makes overclock with just a few clicks away. Moreover, the ASUS OC profiles in TurboV provides the best O.C. settings in different scenarios. Precision Tweaker 2 Allows the user to adjust the CPU voltage in 0.0125v steps and NB/DRAM voltage in 0.02v steps to finetune voltage to achieve the most precise setting for the ultimate overclocking configuration. Turbo Key ASUS Turbo Key allows the user to turn the PC power button into an overclocking button. After the easy setup, Turbo Key can boost performances without interrupting ongoing work or games - with just one touch!! Other ASUS Features 100% High-quality Solid Conductive Polymer Capacitors! (VRM 5000hrs lifespan @105°C, 500,000hrs @65°C) This motherboard uses all high-quality conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity. ASUS Green Design EPU The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power in real-time. It automatically provides the most appropriate power usage for the CPU, VGA card, hard drives, and CPU/chassis fans- helping save power and money! Express Gate Taking only 5 seconds to bootup, Express Gate is the one-stop gateway to instant fun! It´s

Key Features

ASUS M4A78T-E. Processor manufacturer: AMD, Processor socket: Socket AM3. Maximum internal memory: 16 GB, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 5, 10, JBOD. Maximum graphics card memory: 512 MB, Graphics card: Radeon HD 3300. LAN controller: Atheros L1E, Networking features: Gigabit Ethernet
