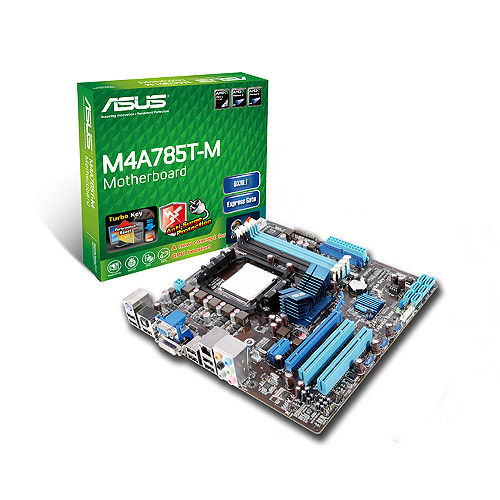

ASUS M4A785T-M motherboard AMD 785G Socket AM3 micro ATX
Brand: ASUS · SKU: M4A785T-M · MPN: M4A785T-M · Category: Components
ASUS M4A785T-M, Intel, Socket AM3, 16 GB, ECC & Non-ECC, 0, 1, 1+0, JBOD, 512 MB
Specifications
| Depth | 244 mm |
|---|---|
| Width | 244 mm |
| BIOS type | AMI |
| I/O ports | 1 x LPT |
| PCI slots | 2 |
| Audio chip | VIA VT1708S |
| RAID levels | 0, 1, 1+0, JBOD |
| Microphone in | Yes |
| LAN controller | Realtek RTL8112L |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Drivers included | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| HDMI ports quantity | 1 |
| Motherboard chipset | AMD 785G |
| Networking features | 10/100/1000 Mbps |
| PS/2 ports quantity | 1 |
| DVI-D ports quantity | 1 |
| PCI Express x1 slots | 1 |
| S/PDIF out connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 244 mm |
Product Description
AMD Phenom II/ Athlon X4/ Athlon X3/Athlon X2 processors (socket AM3) This motherboard supports AMD Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus. This motherboard also supports AMD CPUs in the new 45nm manufacturing process. AMD 785G / SB710 chipset AMD 785G / SB710 Chipset is designed to support up to 5200MT/s HyperTransport 3.0 (HT3.0) interface speed and PCI Express 2.0 x 16 graphics. It is optimized with AMD's latest AM3 and multi-core CPUs to provide excellent system performance and overclocking capabilities. DDR3 1800(O.C.) support The motherboard supports DDR3 memory that features data transfer rates of 1800+(O.C.)/1600(O.C.)/1333/1066/800 MHz to meet the higher bandwidth requirements of the latest operation system, 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture doubles the bandwidth of your system memory to boost system performance, eliminating bottlenecks with peak bandwidths of up to 25.6 GB/s. Furthermore, the supply voltage for the memory is reduced from 1.8 V for DDR2 to just 1.5 V for DDR3. This voltage reduction limits the power consumption and heat generation of DDR3 which makes it an ideal memory solution. Hybrid CrossFireX Support Boosted Performance with onboard GPU and discrete graphics card ATI Hybrid CrossFireX technology is a unique hybrid multi-GPU technology. It takes your gaming experience to the next level boosting PC performance by enabling the chipset’s integrated graphics processor and a discrete GPU to operate simultaneously with combined output for blisteringly-fast frame rates unleashing the graphics performance (Windows Vista OS only).
Key Features
ASUS M4A785T-M. Processor manufacturer: Intel, Processor socket: Socket AM3. Maximum internal memory: 16 GB, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 1+0, JBOD. Maximum graphics card memory: 512 MB. LAN controller: Realtek RTL8112L, Networking features: 10/100/1000 Mbps
Technical Deployment Advisory
Target Personnel
Lifecycle Management Leads
Infrastructure Fit
Hardware Maintenance & Repairs
"The M4A785T-M is the primary choice for Lifecycle Management Leads performing critical Hardware Maintenance & Repairs tasks. It meets all OEM performance specifications for ASUS systems."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS M4A785T-M motherboard AMD 785G Socket AM3 micro ATX (M4A785T-M) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS M4A785T-M motherboard AMD 785G Socket AM3 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS M4A785T-M motherboard AMD 785G Socket AM3 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the M4A785T-M.
