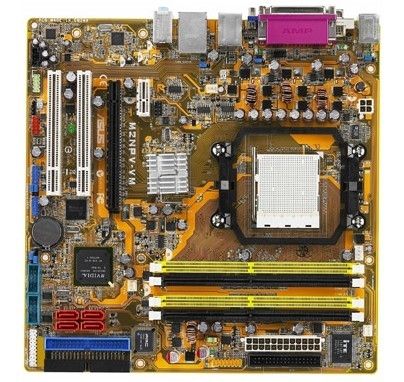

ASUS M2NPV-VM motherboard Socket AM2 micro ATX
Brand: ASUS · SKU: M2NPV-VM · MPN: M2NPV-VM · Category: Components
ASUS M2NPV-VM, AMD, Socket AM2, 8 GB, ECC & Non-ECC, Gigabit Ethernet, micro ATX. ASUS M2NPV-VM motherboard Socket AM2 micro ATX (part number M2NPV-VM) is an enterprise components product available from Server Tech Central. Key specifications include depth 245 mm, width 245 mm, audio chip ADI AD1986A, microphone in Yes, cd/aux audio in Yes, expansion slots 1x PCI Express x16 1x PCI Express x1 2x PCI, bios memory size 32 Mbit, processor socket Socket AM2. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 245 mm |
|---|---|
| Width | 245 mm |
| Audio chip | ADI AD1986A |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| Expansion slots | 1x PCI Express x16 1x PCI Express x1 2x PCI |
| BIOS memory size | 32 Mbit |
| Bundled software | NVIDIA MediaShield RAID ASUS PC Probe II ASUS LiveUpdate AMD Cool ' n' Quiet Anti-virus (OEM) |
| Processor socket | Socket AM2 |
| Special features | ASUS Q-Fan 2 ASUS My Logo ASUS CrashFreeBIOS2 ASUS EZ Flash 2 |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 2 |
| GAME/MIDI connector | Yes |
| Graphics controller | GeForce 6 GPU |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| S/PDIF out connector | Yes |
| Audio output channels | 5.1 channels |
| Manageability features | WfM 2.0, DMI 2.0, WOL PME, WOR, PXE |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| Warranty | 3-Year Warranty |
| Dimensions | 245 mm x 245 mm |
Product Description
ASUS Flagship microATX Motherboard on AMD next generation CPU platform M2NPV-VM provides rich multimedia features for entertainment and advanced specifications for performance. Its unprecedented integrated video quality, Dual VGA out(DVI-D & RGB), HD audio, HDTV out interface(with TV out module) and 1394a support. AMD Cool 'n' Quiet! Technology M2NPV-VM supports AMD Cool 'n' Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment. Dual channel DDR2 800 DDR2 is the next generation memory technology to replace the current DDR. With the highest speed up to 800MHz, DDR2 memory provides great performance for 3D graphics and other memory demanding applications. Gigbit LAN NVIDIA Gb LAN controller delivers transfer speeds up to ten times faster than conventional 10/100 Ethernet connections. Gigabit LAN is the networking standard for the early future and is ideal for handling large amounts of data such as video, audio, and voice. PCI Express Architecture PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better in applications such as 3D gaming. 1394a IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices. ASUS CrashFree BIOS 2 The CrashFree BIOS2 feature now includes the BIOS auto-recovery function in a support CD. Users can reboot their system through the support CD when a bootable disk is not available, and go through the simple BIOS auto-recovery process. ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM. ASUS EZ Flash 2 EZ Flash 2 is a user-friendly BIOS update utility. Simply press the predefined hotkey to launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility. ASUS O.C. Profile The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings. ASUS Q-Fan 2 ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation.
Key Features
ASUS M2NPV-VM. Processor manufacturer: AMD, Processor socket: Socket AM2. Maximum internal memory: 8 GB, ECC сompatibility: ECC & Non-ECC. Networking features: Gigabit Ethernet. Motherboard form factor: micro ATX, Audio output channels: 5.1 channels, Audio chip: ADI AD1986A. BIOS memory size: 32 Mbit
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS M2NPV-VM motherboard Socket AM2 micro ATX (M2NPV-VM) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS M2NPV-VM motherboard Socket AM2 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS M2NPV-VM motherboard Socket AM2 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the M2NPV-VM.
