Chimei Innolux M230HGE-L20 23.0 inch FHD TFT LCD Panel
Brand: Chimei Innolux (CMO) · SKU: M230HGE-L20 · MPN: M230HGE-L20 · Category: Components

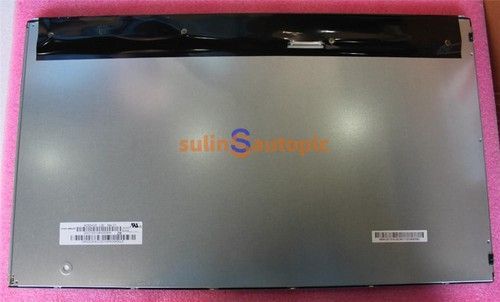

The M230HGE-L20 is a 23.0-inch a-Si TFT-LCD module from Chimei Innolux with a WLED backlight unit and a 30-pin 2ch LVDS interface. It supports a Full HD resolution of 1920x1080 pixels and displays up to 16.7M colors with 72% NTSC color gamut performance. This TN-type display features a brightness of 250 cd/m² and a contrast ratio of 1000:1. It has an active area of 509.184(W) × 286.416(H) mm and an outline dimension of 533.2(W) × 312(H) × 11.3(D) mm, with a net weight of 2.20/2.30 Kgs (Typ./Max.). The surface treatment includes Antiglare and Hard coating (3H). The backlight has a typical working life time of 50K hours, and it requires an external backlight driver. The typical vertical frame rate (Fv) is 75Hz. It complies with RoHS and Halogen Free standards. The product is listed as Discontinued on some sources.
Specifications
| Interface | LVDS (2 ch, 8-bit), 30 pins Connector |
|---|---|
| Brightness | 250 cd/m² (Typ.) |
| Frame Rate | 75Hz (Typical vertical) |
| Panel Type | a-Si TFT-LCD, TN, Normally White, Transmissive |
| Resolution | 1920 x 1080 (FHD) |
| Color Gamut | 72% (NTSC) (Typ.) |
| Diagonal Size | 23.0 inch |
| Response Time | 1.5/3.5 ms (Typ.) (Tr/Td) |
| Backlight Type | WLED (Edge light type - Right side) |
| Contrast Ratio | 1000:1 (Typ.) |
| Surface Treatment | Antiglare, Hard coating (3H) |
| Storage Temperature | -20 ~ 60 °C |
| Operating Temperature | 0 ~ 50 °C |
| Viewing Angle (L/R/U/D) | 85/85/80/80 (Typ.) (CR≥10) |
| Warranty | Not specified (Standard manufacturer warranty likely applies to non-discontinued parts) |
| Weight | 2.20/2.30 Kgs (Typ./Max.) |
| Dimensions | Outline: 533.2(W) × 312(H) × 11.3(D) mm |
Key Features
This is a specification for a 23-inch Full HD (1920x1080) TFT LCD panel, model M230HGE-L20, manufactured by Chimei Innolux. It is a landscape-oriented panel utilizing TN technology with a WLED backlight system, designed for applications like desktop monitors. Key features include a 1000:1 contrast ratio, 250 cd/m² brightness, and a fast response time of 1.5/3.5ms.
