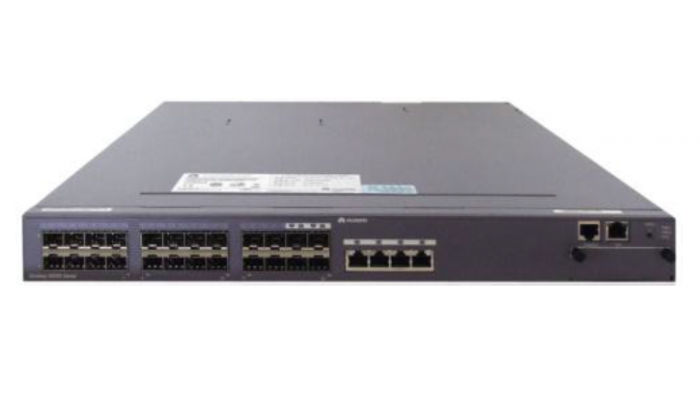

LS-S5328C-EI-24S, Huawei S5300 Switch, 24x100/1000Base-X/4xGE Combo/No Power Module
Brand: Huawei · SKU: LS-S5328C-EI-24S · MPN: LS-S5328C-EI-24S · Category: Networking
S5328C-EI-24S Mainframe(24 100/1000Base-X,4 Combo GE(10/100/1000 BASE-T),Chassis,Dual Slots of power,Without Flexible Card and Power Module)
Specifications
| Flash | 32MB |
|---|---|
| Model | LS-S5328C-EI-24S |
| Weight | 10.08 kg |
| PoE Support | Yes |
| Stack Ports | Two stack ports available on each stack card |
| Availability | > 0.99999 |
| Laser Safety | IEC60825-1; IEC60825-2; EN60825-1; EN60825-2 |
| Memory (RAM) | 256MB |
| EMC Compliance | CISPR22 Class A; CISPR24; EN55022 Class A; EN50024; ETSI EN 300 386 Class A; CFR 47 FCC Part 15 Class A; ICES 003 Class A; AS/NZS CISPR22 Class A; IEC61000-4-2; ITU-T K.20; ITU-T K.44 |
| Safety Standards | IEC 60950-1; EN 60950-1/A11/A12; UL 60950-1; CSA C22.2 No. 60950-1; AS/NZS 60950.1 |
| Relative Humidity | 5% RH to 95% RH, non-condensing |
| Operating Altitude | Non-PoE switch: AC: 0 m to 5000 m; DC: 0 m to 2000 m |
| Rated Voltage Range | -48 V DC to -60 V DC; 100 V AC to 240 V AC, 50/60 Hz |
| Storage Temperature | -40°C to +70°C |
| Maximum Voltage Range | -36 V DC to -72 V DC; 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Operating Temperature | 0°C to 50°C |
| Dimensions (W x D x H) | 442.0mm x 420.0mm x 43.6mm |
| Environmental Standards | RoHS; REACH; WEEE |
| Power Supply Protection | Non-PoE switch: AC: ±6 kV differential mode, ±6 kV common mode; DC: ±1 kV differential mode, ±2 kV common mode |
| Service Port Protection | ±2 kV in common mode |
| Mean Time To Repair (MTTR) | 2 hours |
| Noise (27 °C, Sound Power) | < 41 dBA |
| RPS (Redundant Power Supply) | Not supported |
| Maximum System Power Consumption | 63W (100% throughput, 100% PoE load, full fan speed) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this LS-S5328C-EI-24S, Huawei S5300 Switch, 24x100/1000Base-X/4xGE Combo/No Power Module (LS-S5328C-EI-24S) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This LS-S5328C-EI-24S, Huawei S5300 Switch, 24x100/1000Base-X/4xGE Combo/No Power Module includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the LS-S5328C-EI-24S, Huawei S5300 Switch, 24x100/1000Base-X/4xGE Combo/No Power Module compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the LS-S5328C-EI-24S.
