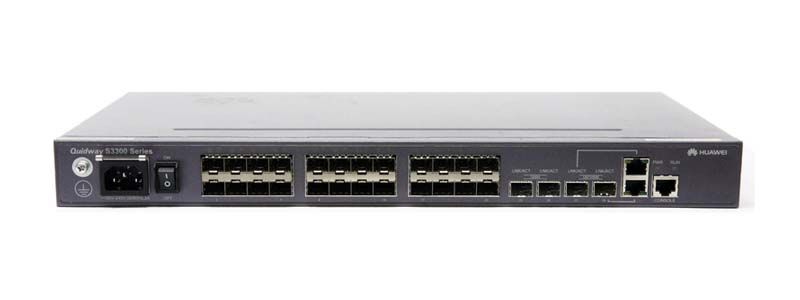

LS-S3328TP-SI-AC, Huawei S3328TP-SI Switch, 24x10/100BASE-T/2xGE Combo/2xGE SFP/AC 110/220V
Brand: Huawei · SKU: LS-S3328TP-SI-AC · MPN: LS-S3328TP-SI-AC · Category: Networking
S3328TP-SI Mainframe(24 10/100 BASE-T ports and 2 Combo GE(10/100/1000 BASE-T+100/1000 Base-X) ports and 2 SFP GE (1000 BASE-X) ports (SFP Req.) and AC 110/220V)
Specifications
| Port | 24 × 10/100Base-TX ports, 2 × 1000Base-X SFP ports, and 2 × Gigabit combo ports (10/100/1000Base-T or 100/1000Base-X) |
|---|---|
| Model | LS-S3328TP-SI-AC |
| Weight | 6.5 kg |
| Security | Hierarchical user management and password protection; DoS, ARP, and ICMP attack defense; IP+MAC+port+VLAN binding; port isolation, port security, sticky MAC, blackhole MAC addresses; limit on learned MAC addresses; IEEE 802.1X authentication and per-port user limit; AAA, RADIUS, HWTACACS+, NAC; SSH v2; CPU protection; blacklisting and whitelisting |
| Multicast | 1,024 multicast groups; IGMP v1/v2/v3 snooping and fast leave; multicast VLAN and cross-VLAN multicast replication; multicast load sharing among bundled ports; controllable multicast; port-based multicast traffic statistics |
| QoS / ACL | Rate limiting on packets sent and received by a port; packet redirection; port-based traffic policing and two-rate three-color CAR; 8 queues per port; WRR, DRR, SP, WRR+SP, DRR+SP scheduling; WRED (S3300HI only); 802.1p and DSCP remarking; packet filtering based on Layer 2–Layer 4 (source/destination MAC, source/destination IP, port number, protocol, VLAN ID); queue-based rate limiting and traffic shaping |
| Reliability | RRPP ring topology, intersecting rings, and multi-instance; Smart Link tree topology and multi-instance with millisecond-level switchover; STP, RSTP, MSTP; BPDU protection, root protection, loopback protection; SEP |
| IPv4 Routing | Static routing, RIP v1, RIP v2, ECMP |
| IPv6 Routing | Static routing and RIPng |
| Power Supply | AC: rated voltage 100 V to 240 V, 50/60 Hz; maximum voltage 90 V to 264 V, 50/60 Hz. DC: rated voltage -48 V to -60 V; maximum voltage -36 V to -72 V (models supporting PoE do not use DC power supplies) |
| IPv6 Features | Neighbor Discovery (ND); PMTU; IPv6 Ping, IPv6 Tracert, IPv6 Telnet; manually configured tunnels; 6-to-4 tunnels; ISATAP tunnels; ACLs based on source/destination IPv6 address, Layer-4 port, and protocol type; MLD v1/v2 snooping |
| VLAN Features | Up to 4,096 VLANs; guest VLAN, voice VLAN, and super VLAN; VLAN assignment based on MAC address, protocol, and IP subnet; basic QinQ and selective QinQ; 1:1 and N:1 VLAN switching |
| Surge Protection | 7 kV surge protection per port; up to 15 kV per port with an extra surge protection device |
| MAC Address Table | 16K MAC address entries; automatic learning and aging; static, dynamic, and blackhole MAC address entries; packet filtering based on source MAC addresses |
| Power Consumption | < 20W |
| Operating Environment | Operating temperature: 0°C to 50°C (long term), -5°C to 55°C (short term); relative humidity: 10% to 90% (non-condensing) |
| Forwarding Performance | 9.6Mpps |
| Port Switching Capacity | 12.8Gbps |
| Dimensions (W × D × H) | 442mm × 220mm × 43.6mm |
| Management and Maintenance | iStack (except S33HI); MAC Forced Forwarding (MFF); auto-config and HGMP; remote configuration and maintenance via Telnet; Virtual Cable Test (VCT); Ethernet OAM (IEEE 802.3ah, 802.1ag); Dying gasp power-off alarm (S3328TP-EI-MC and S3326C-HI only); local port mirroring, RSPAN, packet forwarding on observing port; SNMP v1/v2/v3 and RMON; MUX VLAN and GVRP; NMS and Web management; SSH v2; HTTPS (S3300HI only); 802.3az EEE (S3300HI only); system logs and multi-level alarms |
| Backplane Switching Capacity | 64Gbps |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this LS-S3328TP-SI-AC, Huawei S3328TP-SI Switch, 24x10/100BASE-T/2xGE Combo/2xGE SFP/AC 110/220V (LS-S3328TP-SI-AC) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This LS-S3328TP-SI-AC, Huawei S3328TP-SI Switch, 24x10/100BASE-T/2xGE Combo/2xGE SFP/AC 110/220V includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the LS-S3328TP-SI-AC, Huawei S3328TP-SI Switch, 24x10/100BASE-T/2xGE Combo/2xGE SFP/AC 110/220V compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the LS-S3328TP-SI-AC.
