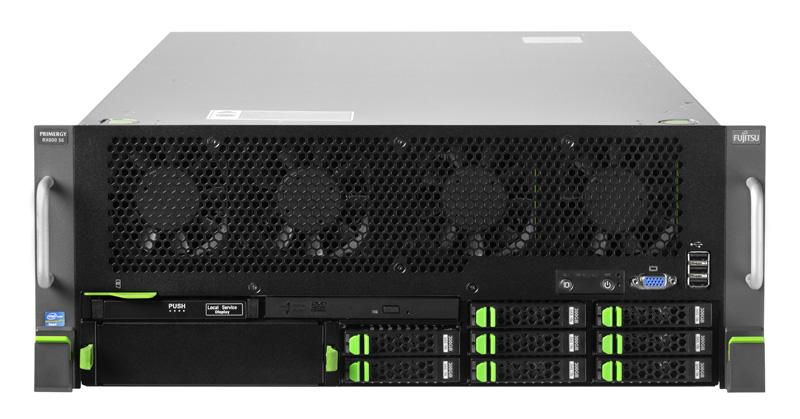

Fujitsu PRIMERGY RX600S5 server Rack (4U) Intel® Xeon® 7000 Sequence X7542 2.67 GHz 16 GB DDR3-SDRAM
Brand: Fujitsu · SKU: LKN:R6005S0013FR · MPN: LKN:R6005S0013FR · Category: Components
Fujitsu PRIMERGY RX600S5, 2.67 GHz, X7542, 16 GB, DDR3-SDRAM, DVD-RW, Rack (4U). Fujitsu PRIMERGY RX600S5 server Rack (4U) Intel® Xeon® 7000 Sequence X7542 2.67 GHz 16 GB DDR3-SDRAM (part number LKN:R6005S0013FR) is an enterprise memory product available from Server Tech Central. Key specifications include ecc Yes, depth 445 mm, tcase 69 °C, width 482.6 mm, height 176 mm, bus type QPI, hot-swap Yes, intel 64 Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| ECC | Yes |
|---|---|
| Depth | 445 mm |
| Tcase | 69 °C |
| Width | 482.6 mm |
| Height | 176 mm |
| Bus type | QPI |
| Hot-swap | Yes |
| Intel 64 | Yes |
| FSB Parity | No |
| Chassis type | Rack (4U) |
| Ethernet LAN | Yes |
| Memory slots | 8x DIMM |
| RAID support | Yes |
| Certification | GS, CE, CSAc/us, FCC, CB, RoHS, WEEE, VCCI, BSMI |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| LAN controller | Intel® 82576 |
| Internal memory | 16 GB |
| Processor cache | 18 MB |
| Processor cores | 6 |
| Processor model | X7542 |
| System bus rate | 5.86 GT/s |
| Processor ARK ID | 46497 |
| Processor family | Intel® Xeon® 7000 Sequence |
| Processor series | Intel Xeon 7500 Series |
| Warranty | 3-Year Warranty |
| Dimensions | 482.6 mm x 445 mm x 176 mm |
Product Description
The scalable Fujtisu Server PRIMERGY RX600 S6 Quad socket with latest Intel Xeon processor series is in every respect a reliable server for critical company IT services, such as a database management system for large corporations or as a consolidation platform to host an immensely large number of applications using virtualization technologies. The ideal interaction of integrated redundancy functions with server management components results in high-level availability and constantly efficient IT production as a character feature of this server platform. Features Using the scalable Intel® QPI architecture in this 4 CPU sockets server results in an excellent increase in performance when compared to the older Front Side Bus server generations. Thanks to the integration of two memory controllers per processor, the CPU to memory bandwidth has been raised up to a factor of 9. Together with the quadrupled maximum memory capacity and the new processor generation with up to 10 cores per processor and 2 threads per core, the system performance achieves unprecedented growth factors. Balanced scale-up performance is achieved by combining various processor choices, using up to 4 x Intel® Xeon® E7-4800 or up to 2 x Intel® Xeon® E7-2800 processors, with PCI Express Generation 2 I/O busses and up to 64 memory DIMMs on 8 configurable memory boards. ECC and SDDC memory protection, memory mirroring support, hot-plug Memory Boards with socket-overlapping memory mirroring, hot-plug redundant fans and power supplies as standard, up to 8x hot-plug 2.5-inch SAS/SATA hard disks, hot-plug PCIe slots LocalView display and integrated Remote Management Controller (iRMC S2) IPMI 2.0 as standard. Benefits This system is designed for critical corporate applications and large scale consolidation. Its new architecture ensures for even more efficient deployment of demanding scale-up computing needs. Irrespective of the server usage, as database or virtualization system, the performance can always be extended so that no bottlenecks can arise as a result of low processor performance or main memory capacity. More demanding database loads can be hosted on RX600 S6 with peace of mind, capitalizing on high performance I/O, massive computing power and up to 2 TB of local memory. Large scale consolidation of tier 1 and tier 2 workloads into virtual machines benefit from the high platform reliability and its balanced scaleability. More consolidation and virtualization efficiency is obtained by using less server instances with the scale-up RX600 S6 platform. Deployment of "fat VMs" for demanding tier 2 applications can be combined with large scale consolidation of tier 1 virtual machines onto significantly less management instances. Enhanced server reliability without extra cost, operational continuity which means more value for your money as well as secured data safety. Secure management control from wherever your experts are located.
Key Features
Fujitsu PRIMERGY RX600S5. Processor family: Intel® Xeon® 7000 Sequence, Processor frequency: 2.67 GHz, Processor model: X7542. Internal memory: 16 GB, Internal memory type: DDR3-SDRAM, Memory layout (slots x size): 4 x 4 GB. HDD interface: Serial ATA, Serial Attached SCSI (SAS). Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Optical drive type: DVD-RW. Chassis type: Rack (4U)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Fujitsu PRIMERGY RX600S5 server Rack (4U) Intel® Xeon® 7000 Sequence X7542 2.67 GHz 16 GB DDR3-SDRAM (LKN:R6005S0013FR) is 100% genuine Fujitsu hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Fujitsu PRIMERGY RX600S5 server Rack (4U) Intel® Xeon® 7000 Sequence X7542 2.67 GHz 16 GB DDR3-SDRAM includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Fujitsu PRIMERGY RX600S5 server Rack (4U) Intel® Xeon® 7000 Sequence X7542 2.67 GHz 16 GB DDR3-SDRAM compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the LKN:R6005S0013FR.
