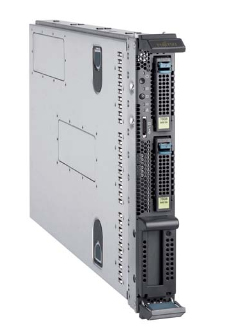

Fujitsu PRIMERGY BX620 S6 server Blade Intel® Xeon® 5000 Sequence E5620 2.4 GHz 12 GB DDR3-SDRAM 331 W
Brand: Fujitsu · SKU: LKN:B6206S0006FR · MPN: LKN:B6206S0006FR · Category: Components
Fujitsu PRIMERGY BX620 S6, 2.4 GHz, E5620, 12 GB, DDR3-SDRAM, 331 W, Blade. Fujitsu PRIMERGY BX620 S6 server Blade Intel® Xeon® 5000 Sequence E5620 2.4 GHz 12 GB DDR3-SDRAM 331 W (part number LKN:B6206S0006FR) is an enterprise memory product available from Server Tech Central. Key specifications include ecc Yes, depth 470 mm, tcase 77.6 °C, width 286 mm, height 43 mm, bus type QPI, hdd size 2.5", hot-swap Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| ECC | Yes |
|---|---|
| Depth | 470 mm |
| Tcase | 77.6 °C |
| Width | 286 mm |
| Height | 43 mm |
| Bus type | QPI |
| HDD size | 2.5" |
| Hot-swap | Yes |
| Intel 64 | Yes |
| Stepping | B1 |
| FSB Parity | No |
| Idle States | Yes |
| Chassis type | Blade |
| Ethernet LAN | Yes |
| Memory slots | 12x DIMM |
| Power supply | 331 W |
| RAID support | Yes |
| HDD interface | Serial ATA II, Serial Attached SCSI (SAS) |
| LAN controller | Intel® 82575EB |
| Processor code | SLBV4 |
| Internal memory | 12 GB |
| Processor cache | 12 MB |
| Processor cores | 4 |
| Processor model | E5620 |
| Warranty | 3-Year Warranty |
| Dimensions | 286 mm x 470 mm x 43 mm |
Product Description
The PRIMERGY BX Blade Servers are the ideal choice for data center solutions of today and tomorrow. Our blade servers provide maximum performance and maximum redundancy, but with only minimum space requirements, low power consumption and a reduction in the time and effort required for cabling. The PRIMERGY BX system family is designed to share components between chassis in order to react quickly and easily to changing business requirements. Storage and server blades can be added without any extra effort, as would be needed when cabling or adding management software. You can use the same applications, rely on the same server and storage components and establish connections to the same networks. The PRIMERGY BX Blade Servers are flexible and have complete control via a central administration instance that is redundant in design; they minimize administrative time and effort, freeing you of time-consuming administration tasks. Our build-to-order process ensures that only completely installed and previously tested solutions are supplied, which have been precisely adapted to individual requirements and which will grow with future business requirements. PRIMERGY BX620 S6 The Fujitsu PRIMERGY BX620 S6 Server Blade can be equipped with up to two Dual-, Quad- or Six-Core CPUs of the latest Intel® Xeon® processor 5500 or 5600 series. The new Intel® Xeon® processor series, the first 32 nm processors, automatically regulate the power consumption and adapt the server performance according to the application requirements, thus maximizing energy efficiency and performance. 12 DIMM slots and a memory capacity of up to 192GB make the server blade ideal for virtualization scenarios and compute-intensive applications. Six onboard Ethernet channels with iSCSI support are available as communication interfaces. The server blade also has two optional slots for a mezzanine card and an SAS storage module. Green IT is an important component of the new Dual Socket Server Blades. The innovative cooling concept Cool-safe™ reduces energy consumption and intelligent ServerView power management functions make saving energy easy, reducing the power costs of each server. All things considered, the new PRIMERGY BX620 S6 Server Blade helps do more with less power, which in turn contributes to a significant reduction in costs during its entire product lifecycle. Efficient system administration is supported by the integrated Remote Management Controller (iRMC S2). The iRMC S2 integrates remote management functions for the server and is the ideal solution for autonomous remote monitoring, diagnostics and maintenance.
Key Features
Fujitsu PRIMERGY BX620 S6. Processor family: Intel® Xeon® 5000 Sequence, Processor frequency: 2.4 GHz, Processor model: E5620. Internal memory: 12 GB, Internal memory type: DDR3-SDRAM, Memory layout (slots x size): 3 x 4 GB. HDD size: 2.5", HDD interface: Serial ATA II, Serial Attached SCSI (SAS). Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Power supply: 331 W. Chassis type: Blade
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Fujitsu PRIMERGY BX620 S6 server Blade Intel® Xeon® 5000 Sequence E5620 2.4 GHz 12 GB DDR3-SDRAM 331 W (LKN:B6206S0006FR) is 100% genuine Fujitsu hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Fujitsu PRIMERGY BX620 S6 server Blade Intel® Xeon® 5000 Sequence E5620 2.4 GHz 12 GB DDR3-SDRAM 331 W includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Fujitsu PRIMERGY BX620 S6 server Blade Intel® Xeon® 5000 Sequence E5620 2.4 GHz 12 GB DDR3-SDRAM 331 W compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the LKN:B6206S0006FR.
