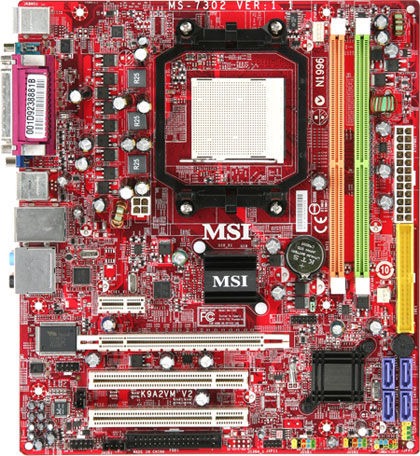

MSI K9A2VM-F V2 AMD 780V Socket AM2 micro ATX
Brand: MSI · SKU: LIM722A700168 · MPN: LIM722A700168 · Category: Components
MSI K9A2VM-F V2, AMD, Socket AM2, 4 GB, 1.8 V, 0, 1, 0+1, 5, JBOD, 10/100/1000 Mbit
Specifications
| Depth | 215 mm |
|---|---|
| Width | 244 mm |
| PCI slots | 2 |
| Audio chip | Realtek ALC888 / ALC662 |
| RAID levels | 0, 1, 0+1, 5, JBOD |
| Microphone in | Yes |
| TPM connector | Yes |
| Memory voltage | 1.8 V |
| CD/AUX audio in | Yes |
| Drivers included | Yes |
| Processor socket | Socket AM2 |
| CPU fan connector | Yes |
| Headphone outputs | 6 |
| Power source type | ATX |
| USB 2.0 connectors | 3 |
| Motherboard chipset | AMD 780V |
| Networking features | 10/100/1000 Mbit |
| PS/2 ports quantity | 2 |
| PCI Express x1 slots | 1 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Serial ports quantity | 1 |
| Number of memory slots | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 215 mm |
Product Description
Chipset - AMD 780V and SB700 Chipset Main Memory - Supports Dual DDR2 533/667/800/1066 (only for AM2+) - 2 DDR2 DIMMs (240pin / 1.8V) - Supports a maximum memory size up to 4GB. Slots - 1 PCI Express x16 slot (PCI Express Bus SPEC V2.0 compliant) - 1 PCI Express x1 slot - 2 PCI slots, support 3.3V/ 5V PCI bus Interface. Audio - Chipset integrated by Realtek® ALC888/ALC662 - Flexible 8-channel audio with jack sensing - Compliant with Azalia 1.0 Spec LAN - Supports 10/ 100 Fast Ethernet by Realtek 8101E - Or Supports PCIE LAN 10/100/1000 Fast Ethernet by Realtek 8111B/ 8111C.
Key Features
MSI K9A2VM-F V2. Processor manufacturer: AMD, Processor socket: Socket AM2. Maximum internal memory: 4 GB, Memory voltage: 1.8 V. RAID levels: 0, 1, 0+1, 5, JBOD. Networking features: 10/100/1000 Mbit. Motherboard form factor: micro ATX, Motherboard chipset: AMD 780V, Audio output channels: 7.1 channels
