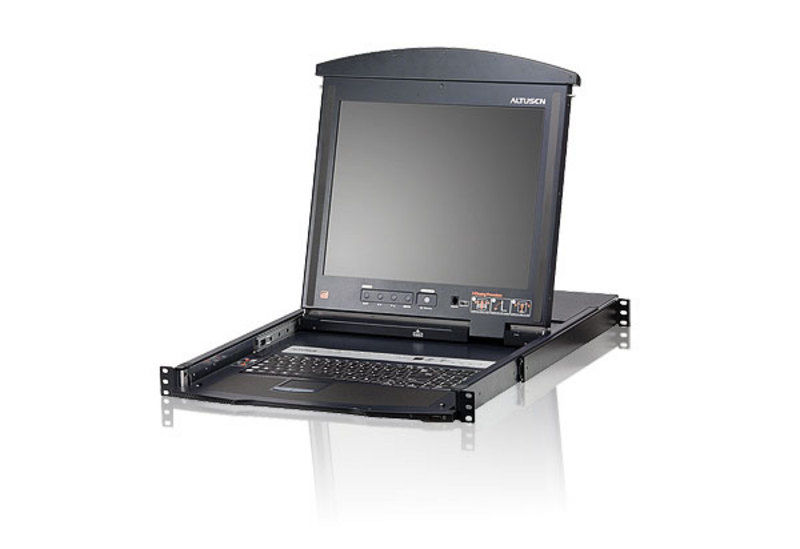

ATEN KL1516AN KVM switch Rack mounting Black
Brand: ATEN · SKU: KL1516AN · MPN: KL1516AN · Category: Data Center
ATEN KL1516AN, 1280 x 1024 pixels, Rack mounting, 28 W, 1U, Black. ATEN KL1516AN KVM switch Rack mounting Black (part number KL1516AN) is an enterprise kvm switches product available from Server Tech Central. Key specifications include depth 684 mm, width 482 mm, height 44 mm, weight 21 kg, display LED, resolution 1280 x 1024 pixels, usb powered No, input voltage 100-240 V. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 684 mm |
|---|---|
| Width | 482 mm |
| Height | 44 mm |
| Weight | 21 kg |
| Display | LED |
| I/O ports | 1 x SPHD-18 M 2 x USB Type A 16 x SPHD-15/17 1 x DB-25 M 1 x RJ-11 F 1 x 3-prong AC |
| Resolution | 1280 x 1024 pixels |
| USB powered | No |
| Input voltage | 100-240 V |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Scan interval | 255 s |
| LED indicators | Yes |
| Package weight | 25.2 kg |
| Ports quantity | 16 |
| Product colour | Black |
| Mouse port type | USB |
| Built-in display | Yes |
| Display diagonal | 48.3 cm (19") |
| Housing material | Metal |
| Relative humidity | 0 - 80% |
| AC input frequency | 50 - 60 Hz |
| Keyboard port type | PS/2 |
| Maximum resolution | 1280 x 1024 pixels |
| Warranty | 3-Year Warranty |
| Weight | 21 kg |
| Dimensions | 482 mm x 684 mm x 44 mm |
Product Description
Features - Integrated KVM console with 17" or 19" LCD monitor in a Dual Rail housing - A single console controls up to 16 computers - Space-Saving RJ-45 connectors and Cat 5e/6 cabling - KVM adapter cables designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types - OSD tree structure makes finding and managing computers easy - Conveniently located station and port selectors with LED displays to quickly switch to target computers - Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operationmm in U of rack space - Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse) - Supports external USB mouse - Dual Rail - LCD monitor slides independently of the keyboard/touchpad - LCD module rotates up to 120 degrees for a more comfortable viewing angle - Console lock - enables the console drawer to remain securely locked away in position when not in use - Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions - Daisy chain up to 31 additional KVM switches to control up to 512 computers - Auto Scan mode enables continuous monitoring of user-selected computers - Multiplatform support: PC, Mac, Sun and Serial - Superior Video Quality- Supports the video resolutions up to 1600x1200@60Hz for up to 40 meters, and 1280x1024@75 Hz for up to 50 meters - Configure port access rights for users on a port - by - port basis - Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display) - Multiple User Accounts -Supports up to 10 user and 1 administrator accounts - Two-Level Password Security- Supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation - LCD power button helps save energy and prolong displays’ life - Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously - Adapter ID - Firmware Upgradeable Package Contents - 1x KL1516A 16-Port Cat 5 High-Density Dual Rail LCD KVM Switch with Standard Rack Mount Kit - 1x Firmware Upgrade Cable - 1x 1ADP-0005-005G Power Cord - 1x User Instructions
Key Features
ATEN KL1516AN. Keyboard port type: PS/2, Mouse port type: USB. Maximum resolution: 1280 x 1024 pixels, Scan interval: 255 s. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Display: LED, Display diagonal: 48.3 cm (19"). Input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Power consumption (typical): 28 W
