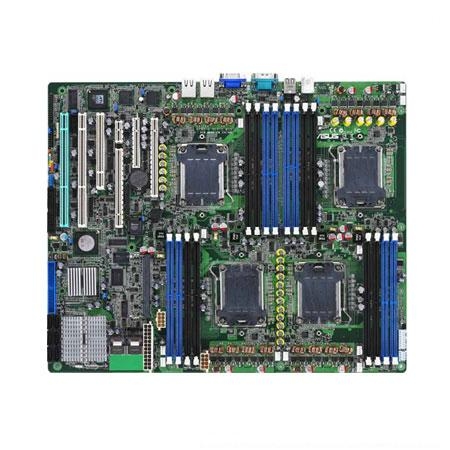

ASUS KFN5-Q/SAS motherboard Socket F (1207) SWTX
Brand: ASUS · SKU: KFN5-Q/SAS · MPN: KFN5-Q/SAS · Category: Components
ASUS KFN5-Q/SAS, AMD, Socket F (1207), 64 GB, ECC, 0, 1, 5, 10, JBOD, Broadcom BCM5721
Specifications
| PCI slots | 1 |
|---|---|
| PCI-X slots | 2 |
| RAID levels | 0, 1, 5, 10, JBOD |
| Certification | FCC, CFR47 Part 15, Class B, CE, EN55022 & EN55024 |
| LAN controller | Broadcom BCM5721 |
| Processor socket | Socket F (1207) |
| CPU fan connector | Yes |
| ECC сompatibility | ECC |
| USB 2.0 connectors | 1 |
| PS/2 ports quantity | 1 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| Serial ports quantity | 1 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 2 |
| Maximum internal memory | 64 GB |
| Motherboard form factor | SWTX |
| Number of COM connectors | 1 |
| Number of SATA connectors | 6 |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Chassis intrusion connector | Yes |
| Operating temperature (T-T) | 10 - 35 °C |
| Warranty | 3-Year Warranty |
Product Description
The KFN5-Q/SAS serverboard is based on Quad-Core/Dual-Core AMD Opteron™ 8000 series 4-way processors technology, ideal for compute-intensive server applications such High-performance Computing (HPC), Clustering, Virtualization and backend database server. Outstanding Performance - KFN5-Q/SAS provides outstanding computing power by supporting up to 4-way 16-core AMD Opteron™ 8000 series processors Highly Memory Expansion capability - 16 DIMMs support DDR2 667 ECC Reg. Memory up to 64GB - High memory capacity helps to optimize native Quad-Core performance Complete RAID Support for Data Protection - Built-in SATA RAID driver support provides software RAID 0, 1, 0+1 & 5 for windows; - Onboard LSI® 1068 SAS controller provides RAID 0,1 & 1E ; - Optional PCI-X ZCR (Zero Channel RAID) with BBU support for cost-effective hardware RAID 5 upgrade Wide-Range Expansion for Versatile Use - Two PCI-E I/O provide more head room to scale up the I/O performance; - Two PCI-X slots reserve legacy server-class add-on card capability to save investment; - HTX support offers the highest bandwidth directly-link based on HyperTransport technology ASUS Server Management Solution - ASWM (ASUS Server Web-based Management) software for easy-to-use and effective system manageability - Optional ASMB3-SOL card (IPMI2.0 module) provides Out-of-Band and remote server management
Key Features
ASUS KFN5-Q/SAS. Processor manufacturer: AMD, Processor socket: Socket F (1207). Maximum internal memory: 64 GB, ECC сompatibility: ECC. RAID levels: 0, 1, 5, 10, JBOD. LAN controller: Broadcom BCM5721. Motherboard form factor: SWTX, Certification: FCC, CFR47 Part 15, Class B, CE, EN55022 & EN55024
