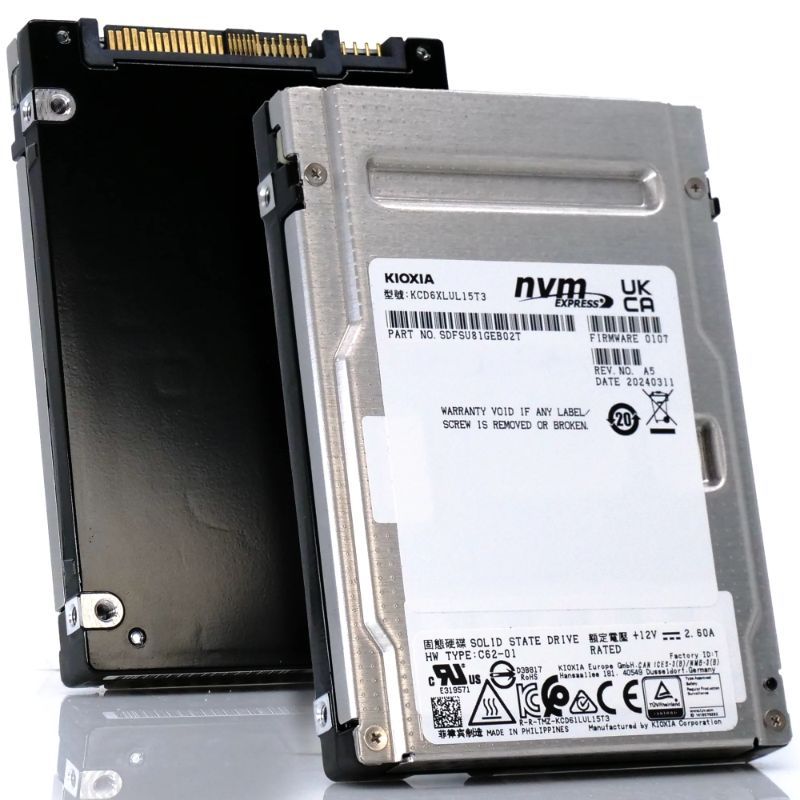

Brand: KIOXIA · SKU: KCD6XLUL15T3 · MPN: KCD6XLUL15T3 · Category: Storage
The KIOXIA CD6-R Series is a read-intensive data center NVMe™ SSD optimized for scale-out and cloud applications like big data/IoT, online transaction processing, and virtualization. It features a PCIe® Gen4 x4 interface, delivering consistent performance up to 1M IOPS (random read) and 85K IOPS (random write), with active power consumption between 13-19 W. The drive utilizes KIOXIA's 96-layer BiCS FLASH™ 3D TLC memory, offers 1 DWPD (Drive Writes Per Day) of endurance, and comes in a 2.5-inch form factor with up to 15.36 TB capacity. It supports SFF-TA-1001 (U.3), Power Loss Protection (PLP), and security options like SIE.
| MTBF | 2,500,000 Hours |
|---|---|
| Capacity | 15.36TB |
| Features | Power Loss Protection (PLP), End-to-End Data Protection |
| Endurance | 1 DWPD (Drive Writes Per Day) |
| Interface | PCIe Gen 4.0 x4 NVMe |
| NAND Type | 96-layer BiCS FLASH™ 3D TLC |
| Drive Type | Read Intensive Data Center NVMe SSD |
| Form Factor | 2.5-inch, 15mm thickness |
| Random Read IOPS | Up to 1M IOPS (some sources cite 750K IOPS) |
| Security Options | SIE, SED, FIPS 140-2 (as available) |
| Random Write IOPS | 85K IOPS (some sources cite 30K IOPS) |
| Protocol/Compliance | NVMe 1.4 specification compliant, SFF-TA-1001 conformant (U.3) |
| Sequential Read Speed | Up to 5,500 MB/s |
| Power Consumption (Active) | 13-19 W |
| Warranty | 3 Year Seller Warranty (Varies by retailer) |
| Weight | 0.5lb |
| Dimensions | 2.7in (Width) x 0.4in (Height) x 4in (Depth) |
The KIOXIA CD6-R Series KCD6XLUL15T3 is a high-capacity, enterprise-class, read-intensive Solid State Drive designed for demanding hyperscale and cloud data center environments. It leverages a PCIe Gen4 x4 interface and proprietary controller/firmware along with 96-layer BiCS FLASH™ TLC to deliver consistent high read performance and 15.36TB of storage capacity in a 2.5-inch, 15mm U.3 form factor.
Yes, this KIOXIA CD6-R Series 15.36TB PCIe Gen4 NVMe SSD (2.5-inch, U.3) (KCD6XLUL15T3) is 100% genuine KIOXIA hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This KIOXIA CD6-R Series 15.36TB PCIe Gen4 NVMe SSD (2.5-inch, U.3) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the KCD6XLUL15T3.
