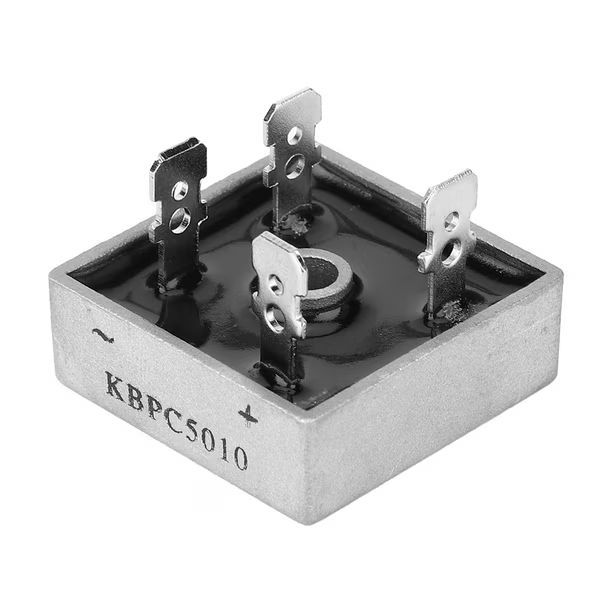

KBPC5010 50A 1000V Single-Phase Bridge Rectifier
Brand: Generic / Various · SKU: KBPC5010 · MPN: KBPC5010 · Category: Components
KBPC5010 is a 50A 1000V single-phase silicon bridge rectifier with a 4-pin through-hole package, high surge capability, and metal case.
Specifications
| Phase | Single Phase |
|---|---|
| Application | AC-to-DC full-wave rectification |
| Terminal Type | 0.25 inch (6.35mm) Faston Lugs / Solderable |
| Peak Forward Surge Current | 400A - 500A |
| Operating Temperature Range | -55°C to +150°C |
| Maximum Average Forward Current | 50A |
| Maximum Forward Voltage (per diode) | 1.1V @ 25A |
| Maximum Repetitive Peak Reverse Voltage | 1000V |
| Warranty | 3-Year Warranty |
| Weight | 30g |
| Dimensions | 28.8 x 28.8 x 11.23 mm |
Key Features
The KBPC5010 50A 1000V Single-Phase Bridge Rectifier is designed for full-wave AC-to-DC power conversion in electronic and electrical applications. This silicon bridge rectifier provides a 1000V maximum repetitive peak reverse voltage and a 50A average forward rectified current rating. Its four-pin KBPC through-hole package features a high-conductivity metal case and a mounting hole for secure installation and heat dissipation. The device offers high forward surge-current capability and low forward voltage drop. Depending on the manufacturer variant, electrical isolation and surge-current ratings can vary, so the specific datasheet should be checked before final system design.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this KBPC5010 50A 1000V Single-Phase Bridge Rectifier (KBPC5010) is 100% genuine Generic / Various hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This KBPC5010 50A 1000V Single-Phase Bridge Rectifier includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the KBPC5010 50A 1000V Single-Phase Bridge Rectifier compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the KBPC5010.
