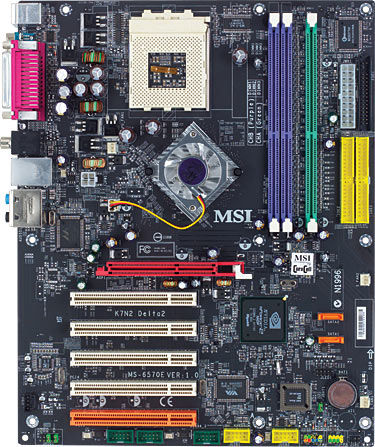

MSI K7N2 DELTA2 PLATINUM Retail Socket A (462) ATX
Brand: MSI · SKU: K7N2 DELTA2 PLATINUM · MPN: K7N2 DELTA2 PLATINUM · Category: Components
MSI K7N2 DELTA2 PLATINUM Retail, AMD, Socket A (462), 400 MHz, 3 GB, 0, 1, 0+1, JBOD, 10/100/1000 Ethernet
Specifications
| RAID levels | 0, 1, 0+1, JBOD |
|---|---|
| Audio output | Chip integrated (5.1 channel H/W audio) |
| Expansion slots | 1x AGP 1.5V 4X/8X 5x 32-bit PCI |
| Processor socket | Socket A (462) |
| Power source type | ATX |
| Networking features | 10/100/1000 Ethernet |
| Processor manufacturer | AMD |
| Maximum internal memory | 3 GB |
| Motherboard form factor | ATX |
| Processor system buses supported | 400 MHz |
| Warranty | 3-Year Warranty |
Product Description
CPU Supports Socket A for AMD® Athlon™/Athlon™ XP/Duron™/ Sempron™ processors @FSB 266/333/400MHz Supports up to 3200+ processor or higher Chipset NVIDIA® nForce2 400 Ultra Chipset Supports DDR200/266/333/400 AGP 8X and PCI Advanced high performance memory controller NVIDIA® nForce2 Gigabit MCP Chipset Integrated Ethernet MAC Integrated Hardware Sound Blaster/Direct Sound AC97 audio Ultra DMA 66/100/133 master mode PCI EIDE controller Supports USB 2.0 Integrated SATA Interface Main Memory Supports six memory banks using three 184-pin DDR DIMMs Support Dual channel PC3200/2700/2100/1600 DDR SDRAMs Supports both 64-bit and 128-bit DDR SDRAM Maximum memory size of 3GB Supports 2.5v DDR SDRAM DIMM Slots One AGP (Accelerated Graphics Port) 1.5V 4X/8X slot Five 32-bit PCI bus slots (support 3.3v/5v PCI bus interface) On-Board IDE Two IDE controller on the NVIDIA® nForce2 Gigabit MCP chipset provides IDE HDD/CDROM with PIO, Bus Master and Ultra DMA133/ 100/66 operation modes Can connect up to four IDE devices SATA Interface Integrated SATA Phy, supporting up to 2 ports One SATA controller, supporting two drives in master mode NV RAID (Software) Supports 2 serial ATA plus 1 ATA 133 RAID 0, or 1, 0+1, JBOD is supported Booting from RAID Cross controller RAID support Rebuilding on the Fly Spare Disk Allocation Supports Windows 2000 and later versions Audio Chip integrated (5.1 channel H/W audio) Direct Sound AC97 audio 6 channel analog output Digital SPDIF out signal compatible W/S-Bracket Network On-Board 10/100/1000 Ethernet A 802.3 NVIDIA MAC for 1000 BASE-T/100 BASE-T/10 BASE-T Gigabit/Fast Ethernet/Ethernet RGMII for Gigabit/Fast Ethernet/Ethernet USB Interface 8 USB ports Controlled by Gigabit MCP southbridge 4 ports in the rear I/O, 4 ports via external bracket In-Chip IEEE1394 Supports up to 3 x 1394 ports (via external bracket). Transfer rate is up to 400Mbps. On-Board Peripherals On-Board Peripherals include: 1 floppy port that supports one FDD with 360KB, 720KB, 1.44MB and 2.88MB 1 serial port 1 parallel port supports SPP/EPP/ECP mode 1 Audio jack(5-in-1), coaxial/fiber SPDIF out 3 IEEE1394 connectors (via external bracket) 8 USB ports (Rear x 4 / Front x 4) 1 RJ-45 jack 1 D-Bracket2 pinheader
Key Features
MSI K7N2 DELTA2 PLATINUM Retail. Processor manufacturer: AMD, Processor socket: Socket A (462), Processor system buses supported: 400 MHz. Maximum internal memory: 3 GB. RAID levels: 0, 1, 0+1, JBOD. Networking features: 10/100/1000 Ethernet. Motherboard form factor: ATX, Power source type: ATX
