Brand: HPE Aruba · SKU: JZ321A · MPN: JZ321A · Category: Networking

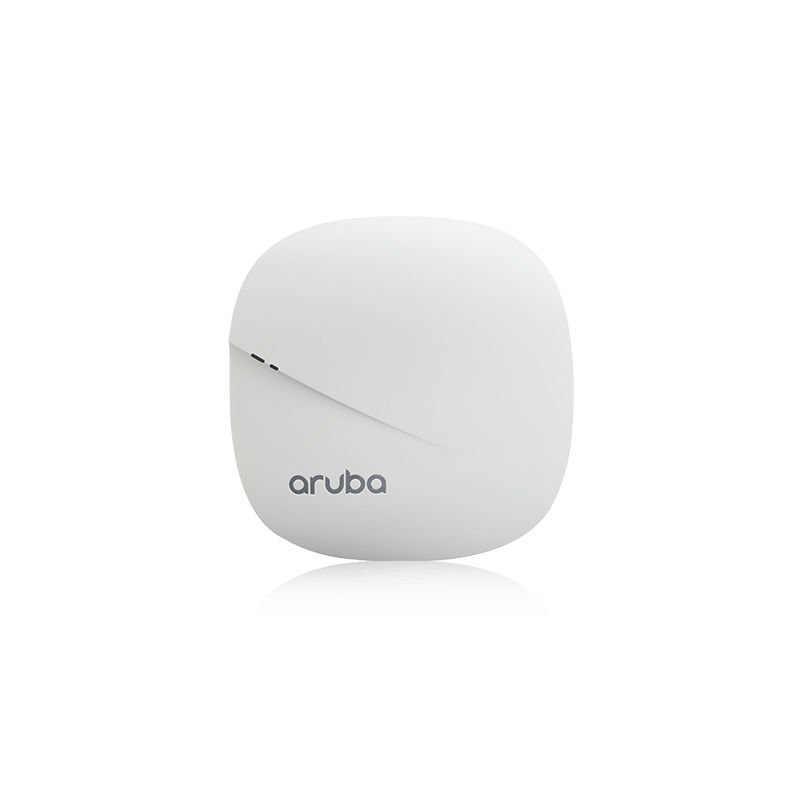

The HPE Aruba JZ321A AP-303 is a dual-radio wireless access point with internal antennas, designed for medium-density enterprise environments. It features dual 2x2:2 MU-MIMO radios supporting IEEE 802.11a/b/g/n/ac standards. It offers a maximum concurrent data rate of up to 867 Mbps in the 5GHz band and up to 300 Mbps in the 2.4GHz band, resulting in an aggregate peak data rate of 1.2 Gbps. It includes two vertically polarized dual-band downtilt omnidirectional antennas with peak antenna gain of -3.3dBi in the 2.4GHz band and 5.8dBi in the 5GHz band. The AP supports Power over Ethernet (PoE) via an 802.3af compliant source or a direct 12Vdc source (power sources not included). It also has integrated BLE for location services and is capable of being managed by Aruba Central. It supports up to 255 wireless clients per Wi-Fi radio and 16 BSSIDs per radio.
| MIMO | 2x2:2 MU-MIMO |
|---|---|
| Model Name | AP-303 |
| Antenna Type | Internal, 2x Vertically polarized dual-band downtilt omnidirectional |
| Power Options | Power over Ethernet (PoE) - 802.3af compliant source | Direct DC source - 12Vdc nominal |
| 5GHz Data Rate | 867 Mbps |
| Frequency Bands | 2.4 GHz, 5 GHz |
| Interface Ports | 1x 1 Gigabit Ethernet RJ45, 1x 1 Gigabit Ethernet PoE RJ45 |
| 2.4GHz Data Rate | 300 Mbps |
| Management Ports | 1x Reset Button, 1x RJ45 Console, 1x USB 2.0 |
| Capacity (BSSIDs) | 16 per radio |
| Capacity (Clients) | 255 per Wi-Fi radio |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Antenna Gain (5GHz) | 5.8dBi |
| Antenna Gain (2.4GHz) | -3.3dBi |
| Wireless LAN Standard | IEEE 802.11ac |
| Aggregate Peak Data Rate | 1.2 Gbps |
| Warranty | 1 Year (Return/Replacement) |
| Weight | 260g |
| Dimensions | 150mm (W) x 150mm (D) x 35mm (H) |
The HPE Aruba JZ321A AP-303 is a cost-effective, unified campus access point designed for medium-density environments. It delivers 802.11ac Wave 2 performance with dual 2x2:2 MU-MIMO radios and integrated BLE for location services. It supports deployment in either controller-based (ArubaOS) or controller-less (InstantOS) mode.
Yes, this HPE Aruba AP-303 (US) Dual 2x2:2 MU-MIMO Radio Internal Antennas Unified Campus AP (JZ321A) is 100% genuine HPE Aruba hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This HPE Aruba AP-303 (US) Dual 2x2:2 MU-MIMO Radio Internal Antennas Unified Campus AP includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the JZ321A.
