Brand: Aruba (HPE) · SKU: JW017A · MPN: JW017A · Category: Components

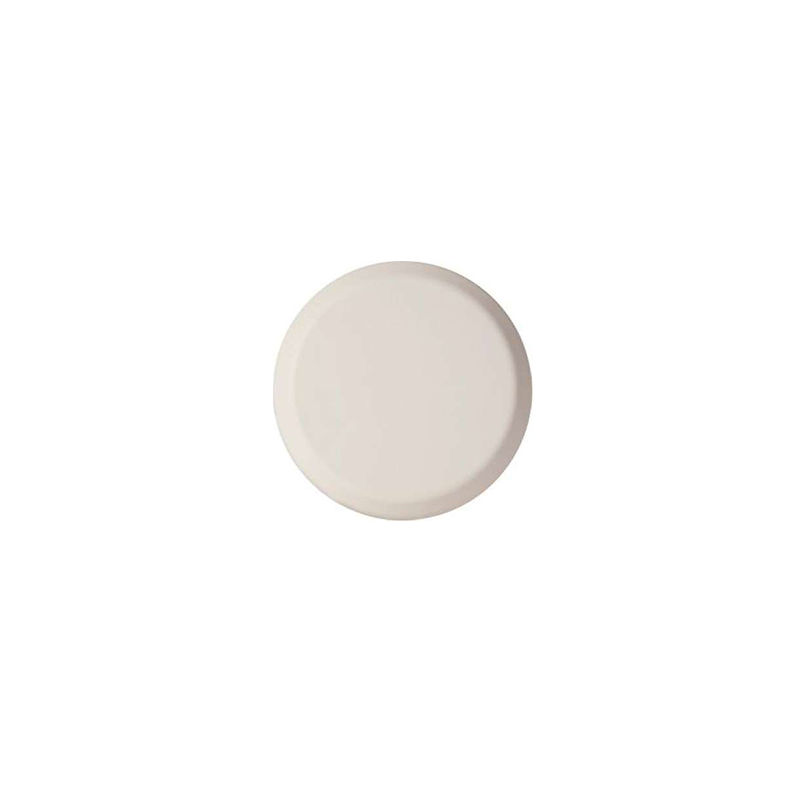

The JW017A is the Aruba AP-ANT-40, a dual-band 4-element omni-directional antenna designed for Wi-Fi MIMO applications. It is housed in a compact, low-profile, and discrete plastic enclosure, suitable for ceiling or wall mounting indoors. Each of the four MIMO antenna elements connects to the Aruba Access Point via a low-loss, plenum-rated coaxial pigtail. The radiation patterns are uniform and symmetrical, providing high-level signal density into defined coverage zones for optimum MIMO performance.
| VSWR | <2.0:1 |
|---|---|
| Color | White |
| Material | PC/ABS |
| Mounting | Ceiling mountable, Wall-mountable, Indoor |
| Impedance | 50 Ohm |
| Directivity | Omni-directional |
| Cable Length | 29.5 in or 750mm (plenum-rated pigtail) |
| MIMO Support | 4x4 |
| Polarization | Linear Vertical |
| Product Type | Antenna |
| Product Model | AP-ANT-40 |
| Connector Type | RP-SMA (Male) |
| Frequency Range | 2.4 - 2.5 GHz and 4.9 - 6.0 GHz |
| Max Input Power | 10 watts |
| Connector Quantity | 4 |
| Antenna Gain (5 GHz) | 5 dBi (for 4900 MHz - 6000 MHz) or 5.8 dBi |
| Antenna Gain (2.4 GHz) | 4 dBi (for 2400 MHz - 2500 MHz) or 3.8 dBi |
| Max Operating Temperature | 158 °F |
| Min Operating Temperature | -22 °F |
| Warranty | Varies by retailer/distributor |
| Weight | 14.46 oz |
| Dimensions | Diameter: 7.01", Height: 1.26" (other dimensions listed as 7 in x 1.3 in) |
The Aruba AP-ANT-40 (JW017A) is a high-performance, dual-band, 4x4 MIMO omni-directional antenna designed for indoor enterprise Wi-Fi deployments. It supports both 2.4 GHz and 4.9-6 GHz bands, featuring 50 Ohm impedance and RP-SMA connectors. Its low-profile ceiling mount design ensures good coverage symmetry, making it ideal for high-density environments.
Yes, this HPE Aruba AP-ANT-40 Indoor 4X4 MIMO Antenna (JW017A) is 100% genuine Aruba (HPE) hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This HPE Aruba AP-ANT-40 Indoor 4X4 MIMO Antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the JW017A.
