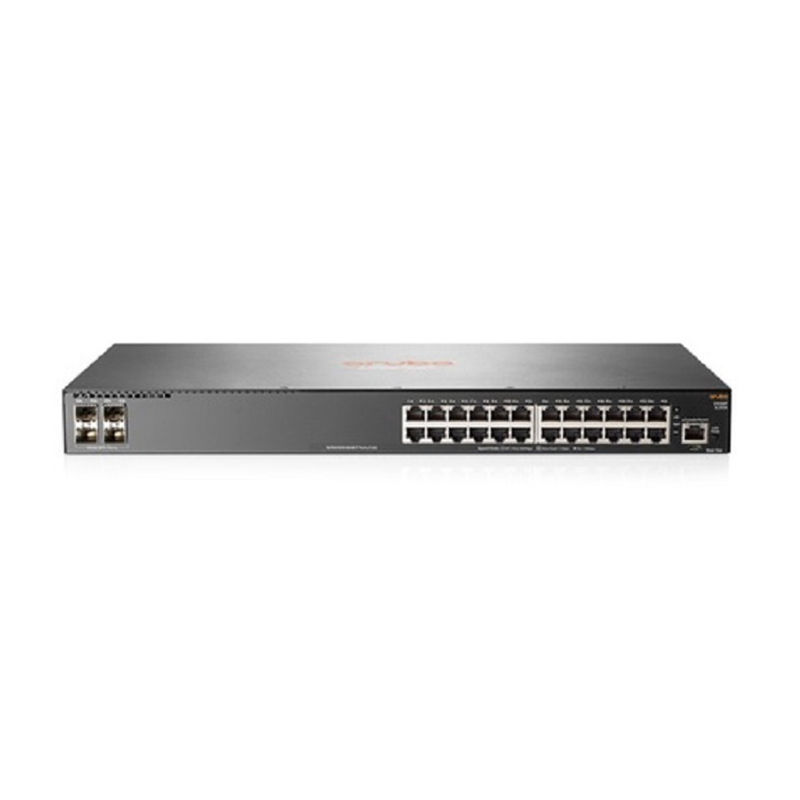

JL354A, Aruba 2540 Switch, 24xGE/4xSFP+
SKU: JL354A · MPN: JL354A · Category: Networking
Aruba 2540 24G 4SFP+ Switch
Specifications
| Weight | 5.31 lb (2.41 kg) |
|---|---|
| Current | 0.6/0.4 A |
| Voltage | 100–127/200–240 VAC, rated |
| Frequency | 50/60 Hz |
| Dimensions | 17.42(w) x 7.88(d) x 1.73(h) in. (44.25 x 20.02 x 4.39 cm) (1U height) |
| Throughput | up to 95.2 Mpps |
| 10 Gbps Latency | <1.6 µs (64-byte packets) |
| 1,000 MB Latency | <3.8 µs (64-byte packets) |
| Routing table size | 2,000 entries (IPv4), 1,000 entries (IPv6 |
| Switching capacity | 128 Gbps |
| I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 4 SFP+ 1/10GbE ports; PHY-less |
| Maximum power rating | 29.3 W |
| Memory and processor | Dual Core ARM® Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress, 4 GB eMMC |
| Operating temperature | 32°F to 113°F (0°C to 45°C); up to 5,000 Feet,-0°C to 40°C (32°F to 104°F) up to 10,000 Feet |
| MAC address table size | 16,384 entries |
| Maximum heat dissipation | 100 BTU/hr (105.5 kJ/hr) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C), noncondensing |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this JL354A, Aruba 2540 Switch, 24xGE/4xSFP+ (JL354A) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This JL354A, Aruba 2540 Switch, 24xGE/4xSFP+ includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the JL354A, Aruba 2540 Switch, 24xGE/4xSFP+ compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the JL354A.
