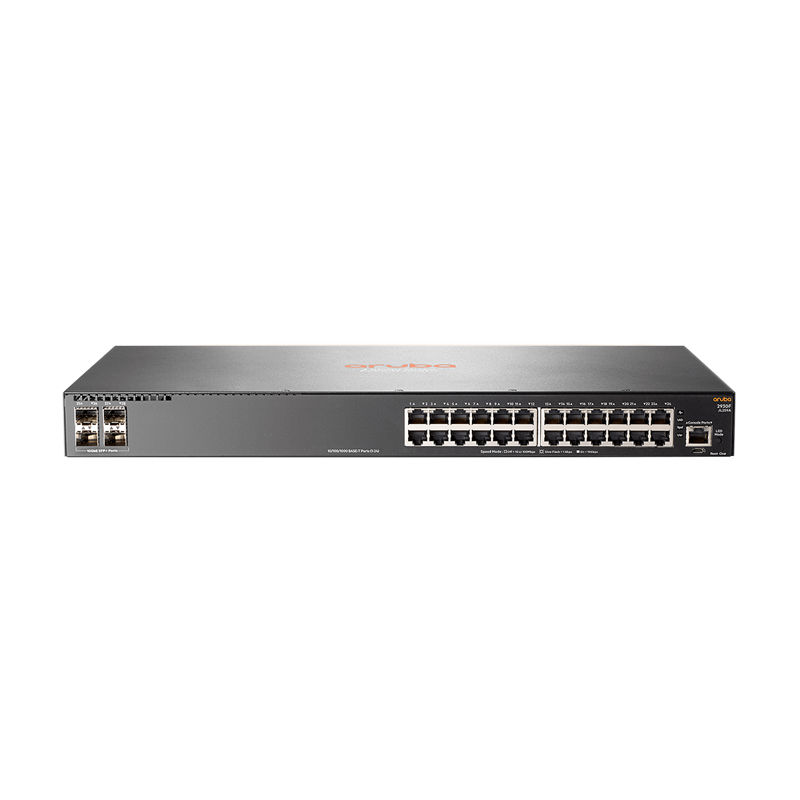

JL259A, Aruba 2930F Switch, 24xGE/4xSFP/No Fan & PSU
Brand: Aruba · SKU: JL259A · MPN: JL259A · Category: Networking
Specifications
| Type | Aruba 2930F 24G 4SFP Switch |
|---|---|
| Model | JL259A |
| Current | 0.6/0.4 A |
| Voltage | 100 - 127 / 200 - 240 V AC, rated |
| Acoustic | Power: 49.7 dB, Pressure: 37.1 dB |
| Immunity | Generic: EN 55024:2010/CISPR 24, ESD IEC 61000-4-2, Radiated IEC 61000-4-3, EFT/Burst IEC 61000-4-4, Surge IEC 61000-4-5, Conducted IEC 61000-4-6, Power frequency magnetic field IEC 61000-4-8, Voltage dips and interruptions IEC 61000-4-11, Harmonics IEC/EN 61000-3-2, Flicker IEC/EN 61000-3-3 |
| Emissions | EN 55022:2010/CISPR 22 Class A, FCC CFR 47 Part 15 Class A, VCCI Class A, ICES-003 Class A, CNS 13438 |
| Frequency | 50/60 Hz |
| Dimensions | 4.39 x 44.25 x 20.02 cm (1.73 x 17.42 x 7.88 in), 1U height |
| Idle power | 19.5 W |
| Management | Aruba AirWave Network Management, IMC – Intelligent Management Center, Command-line interface, Web browser, Configuration menu, SNMP manager, Telnet, RMON1, FTP, Out-of-band management (serial RS-232C or micro USB) |
| Throughput | up to 41.7 Mp/s |
| Product Type | Aruba 2930F 24G 4SFP Switch |
| 1000 Mb Latency | < 3.8 µs (64-byte packets) |
| Airflow direction | Side-to-side |
| Routing table size | 10000 entries (IPv4), 5000 entries (IPv6) |
| Switching capacity | 56 Gb/s |
| I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only, 4 SFP |
| Maximum power rating | 29.3 W |
| Memory and processor | Dual Core ARM Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM, Packet buffer size: 12.38 MB (4.5MB Ingress/7.785MB Egress), 4 GB eMMC |
| Operating temperature | 0°C to 45°C (32°F to 113°F) up to 5000 Feet, 0°C to 40°C (32°F to 104°F) up to 10000 Feet |
| Safety certifications | UL 60950-1, 2nd Edition, EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013, IEC 60950-1:2005 +A1:2009 +A2:2013, CSA 22.2 No. 60950-1-07 2nd, EN 60825-1:2007 / IEC 60825-1:2007 Class 1 |
| MAC address table size | 32768 entries |
| Maximum heat dissipation | 105.5 kJ/hr (100 BTU/hr) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this JL259A, Aruba 2930F Switch, 24xGE/4xSFP/No Fan & PSU (JL259A) is 100% genuine Aruba hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This JL259A, Aruba 2930F Switch, 24xGE/4xSFP/No Fan & PSU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the JL259A, Aruba 2930F Switch, 24xGE/4xSFP/No Fan & PSU compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the JL259A.
