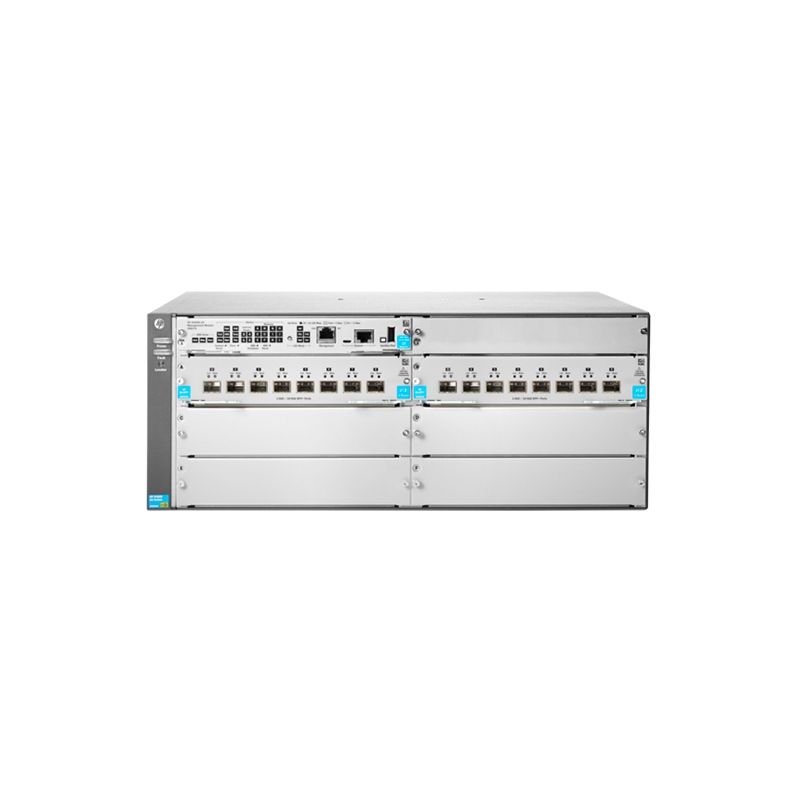

JL095A, Aruba 5406R Switch, 16xSFP+ ports/Modular chassis/v3 zl2
Brand: Aruba · SKU: JL095A · MPN: JL095A · Category: Networking
Specifications
| Type | HPE 5406R 16-port SFP+ (No PSU) v3 zl2 Switch |
|---|---|
| Model | JL095A |
| Notes | Supported 1G SFP transceivers are revision “B” or later (product number ends with the letter “B” or later; For example, J9142B, J8177C) |
| Safety | CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950 |
| Voltage | 110–127/200–240 VAC, rated (depending on power supply chosen) |
| Fan Tray | Includes: 1 x J9831A, 1 fan tray slot |
| Immunity | EN 55024, CISPR 24, IEC 61000-4-2; 4 kV CD, 8 kV AD; HPE ENV. 765.002, IEC 61000-4-3; 3 V/m, IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line) IEC 61000-4-5; 1 kV/2 kV AC, 1 kV signal, 0.5 kV DC, IEC 61000-4-6; 3 Vrms, IEC 61000-4-8; 1 A/m, 50 or 60 Hz, IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods, EN 61000-3-2, IEC 61000-3-2, EN 61000-3-3, IEC 61000-3-3 |
| Emissions | FCC part 15 Class A; EN 55022/CISPR 22 Class A |
| Idle power | 215 W |
| Management | IMC—Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); SNMP Manager; Out-of-band management (serial RS-232C or micro USB); AirWave Network Management |
| Environment | Operating temperature: 32°F to 113°F (0°C to 45°C); 0°C to 40°C with J8177C transceiver installed, 0°C to 35°C with FIPS Opacity Shield installed, Operating relative humidity: 15% to 95% @ 113°F (45°C), noncondensing, Nonoperating/Storage temperature: -40°F to 158°F (-40°C to 70°C), Nonoperating/Storage relative humidity: 15% to 95% @ 149°F (65°C), noncondensing, Altitude: Up to 10,000 ft (3 km), Acoustic: Power: 44 dB, Pressure: 31.7 dB ISO 7779, ISO 9296 |
| Product Type | HPE 5406R 16-port SFP+ (No PSU) v3 zl2 Switch |
| Power supplies | 2 power supply slots, 1 minimum power supply required (ordered separately) |
| I/O ports and slots | 16 open 10GbE SFP+ transceiver slots, 4 open module slots, Supports up to 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPE Smart Rate Multi-Gigabit or 12 40GbE ports, or a combination |
| Included accessories | 1 HPE 5400R zl2 Management Module (J9827A), 1 HPE 5406R zl2 Switch Fan Tray (J9831A), 2 HPE 8-port 1G/10GbE SFP+ MACsec v3 zl2 Module (J9993A) |
| Memory and processor | v3 Gigabit Module: Dual ARM® Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal, v2 Gigabit Module: ARM 11 @ 450 MHz; Packet buffer size: 18 MB internal, v3 10G Module: Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal, v2 10G Module: ARM 11 @ 550 MHz; Packet buffer size: 18 MB internal, v3 40G Module: Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal, Management Module: Freescale P2020 dual core @ 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM |
| Dimensions (W x D x H) | 17.5(w) x 17.75(d) x 6.9(h) in. (44.45 x 45.09 x 17.53 cm) (4U height) |
| Mounting and enclosure | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included); Horizontal surface mounting only |
| Maximum heat dissipation | 2450 BTU/hr (2584.75 kJ/hr), (max. non-PoE); 3700 BTU/hr (3903 kJ/hr), (max. using PoE) |
| Electrical characteristics | Frequency: 50/60 Hz, 80plus.org Certification: Gold, Description: Does not come with power supply. Two power supply slots are available; three different power supplies are available. See power supply products for additional specifications. |
| Performance (IPv6 Ready Certified) | 1000 Mb Latency: < 2.8 µs (FIFO 64-byte packets), 10 Gbps Latency: < 1.8 µs (FIFO 64-byte packets), 40 Gbps Latency: < 1.5 µs (FIFO 64-byte packets), Throughput: up to 571.4 Mpps, Routing/Switching capacity: 960 Gbps, Switch fabric speed: 1015 Gbps, Routing table size: 10000 entries (IPv4), 5000 entries (IPv6), MAC address table size: 64000 entries |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this JL095A, Aruba 5406R Switch, 16xSFP+ ports/Modular chassis/v3 zl2 (JL095A) is 100% genuine Aruba hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This JL095A, Aruba 5406R Switch, 16xSFP+ ports/Modular chassis/v3 zl2 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the JL095A, Aruba 5406R Switch, 16xSFP+ ports/Modular chassis/v3 zl2 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the JL095A.
