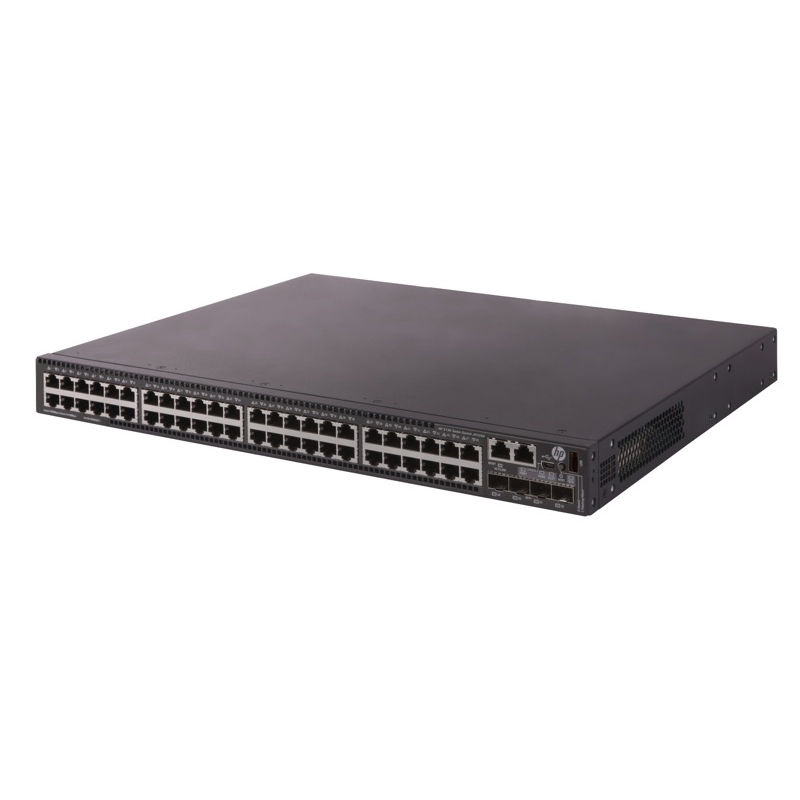

JH326A, HPE 5130 Switch, 48xGE PoE+/4x10GE SFP+/1 Expansion Slot

SKU: JH326A · MPN: JH326A · Category: Networking

JH326A, HPE 5130 Switch, 48xGE PoE+/4x10GE SFP+/1 Expansion Slot
Request for Quote
In Stock • 10 units

HPE 5130 48G PoE+ 4SFP+ 1-slot HI Switch

View Networking Products

Specifications

TypeHPE 5130 48G PoE+ 4SFP+ HI with 1 Interface Slot Switch
SafetyUL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; ROHS Compliance; AS/NZS 60950-1; GB 4943; EAC (EurAsian Conformity Certification)
Weight12.5 kg (27.56 lb)
Voltage100 - 240 V ac, rated (90 - 264 V ac, max) -48 to -60 V dc, rated) (depending on power supply chosen)
AcousticLow-speed fan: 57.6 dB, High-speed fan: 66.9 dB; ISO 7779
Fan trayAirflow direction is Front (port side) to Back (power cord side)
ImmunityGeneric EN 55024 ESD EN300 386
EmissionsEMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-4/2012.04; EN 6100-3-2:2006+A1:2009 + A2:2009; EN 61000-3- 2:2006+A1:2009+A2:2009; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000- 4-6:2009; AS/NZS CISPR 22:2009 Class A; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000- 4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A
Frequency50/60 Hz
PoE power1440 W PoE+
Idle power75 W
ManagementIMC - Intelligent Management Center, Command-line interface, Web browser, SNMP manager
Throughputup to 190.5 Mpps
Product TypeHPE 5130 48G PoE+ 4SFP+ HI with 1 Interface Slot Switch
Power supplies2 power supply slots 1 minimum power supply required (ordered separately)
10 Gbps Latency< 3 &micro;s
1000 Mb Latency< 5 &micro;s
Routing table size32768 entries (IPv4), 16384 entries (IPv6)
I/O ports and slots48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 8 support MACSec 4 SFP+ 10GbE ports 1 port expansion module slot Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports, with optional module
Maximum power rating670 W
Memory and processor2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash
Operating temperature0&deg;C to 45&deg;C(32&deg;F to 113&deg;F)
Dimensions (H x W x D)4.37 x 43.99 x 46 cm (1.72 x 17.32 x 18.11 in) (1U height)
MAC address table size32768 entries
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this JH326A, HPE 5130 Switch, 48xGE PoE+/4x10GE SFP+/1 Expansion Slot (JH326A) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This JH326A, HPE 5130 Switch, 48xGE PoE+/4x10GE SFP+/1 Expansion Slot includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the JH326A, HPE 5130 Switch, 48xGE PoE+/4x10GE SFP+/1 Expansion Slot compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the JH326A.
