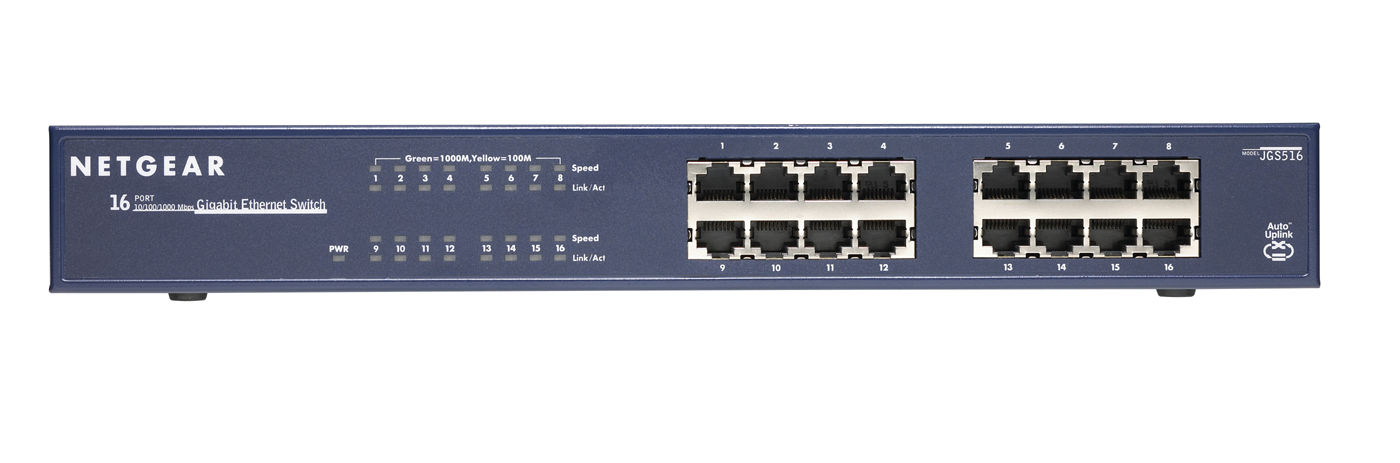

NETGEAR JGS516 Unmanaged Blue
Brand: NETGEAR · SKU: JGS516-200EUS · MPN: JGS516-200EUS · Category: Components
NETGEAR JGS516, Unmanaged. NETGEAR JGS516 Unmanaged Blue (part number JGS516-200EUS) is an enterprise components product available from Server Tech Central. Key specifications include depth 169 mm, width 328 mm, height 43 mm, weight 1.47 kg, latency 20 μs, bandwidth 32 Gbit/s, stackable No, switch type Unmanaged. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 169 mm |
|---|---|
| Width | 328 mm |
| Height | 43 mm |
| Weight | 1.47 kg |
| Latency | 20 μs |
| Bandwidth | 32 Gbit/s |
| Stackable | No |
| Switch type | Unmanaged |
| Certification | CE mark, commercial FCC Part 15 Class A VCCI Class A EN 55022 (CISPR 22), Class A, EN 50082-1, EN 55024 C-Tick |
| Product colour | Blue |
| Power connector | DC-in jack |
| Connectivity LEDs | Y |
| Weight (imperial) | 1.62 kg (3.57 lbs) |
| Dimensions (WxDxH) | 330 x 207 x 43 mm |
| Power requirements | 100-240VAC/50-60 Hz |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
| Connectivity technology | Wired |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -20 - 70 °C |
| Maximum data transfer rate | 0.1 Gbit/s |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | 32 - 122 °F |
| Power consumption (typical) | 25 W |
| Warranty | 3-Year Warranty |
| Weight | 1.47 kg |
| Dimensions | 328 mm x 169 mm x 43 mm |
Product Description
Take Gigabit to the Desktop NETGEAR’s JGS500 Gigabit Switch Series gives your office network a megaboost of speed and capacity that is within your budget. With up to 48 Gbps of bandwidth, these 16- and 24-port switches can blast 2000 Mbps per port while their affordable prices enable you to put them everywhere. Use it to take Gigabit Ethernet directly to the desktop! Standards-based for easy integration of 10-, 100-, and 1000-Mbps devices, these unmanaged, rack-mountable switches feature 10/100/1000 automatic speed and full/half-duplex sensing plus Auto Uplink on every port. Users can take advantage of the their ability to deliver large amounts of multimedia, image, and video information in no time at all. Ideal for workgroups, labs, departments, or growing offices looking for oustanding performance at a low price. High Capacity 1000-Mbps speeds and a switching capacity of up to 48 Gbps meet the performance needs for even the most bandwidth-hungry applications. The JGS500 series are perfect for graphics, multimedia, and other applications that have to move large files across the network quickly. Affordable Aggressive prices enable your workgroup, department or small network to ramp up to Gigabit speeds, even all the way to the desktop. Flexible Each port is equipped with automatic speed and duplex sensing, plus Auto Uplink to adjust for straight-through or crossover cables to make the right link. Standards-based design makes it easy to combine 10-, 100-, and 1000-Mbps devices on your network. Convenient Easy to set up and easy to use, these unmanaged switches have per port LED’s for effortless network monitoring. They are compact enough for the desktop but come with a rack-mount kit. They are also compatible with PC, Macintosh, Linux, and Unix operating systems.
Key Features
NETGEAR JGS516. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports quantity: 16, Power connector: DC-in jack
Frequently Asked Questions
Is this product genuine OEM?
Yes, this NETGEAR JGS516 Unmanaged Blue (JGS516-200EUS) is 100% genuine NETGEAR hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This NETGEAR JGS516 Unmanaged Blue includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the NETGEAR JGS516 Unmanaged Blue compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the JGS516-200EUS.
