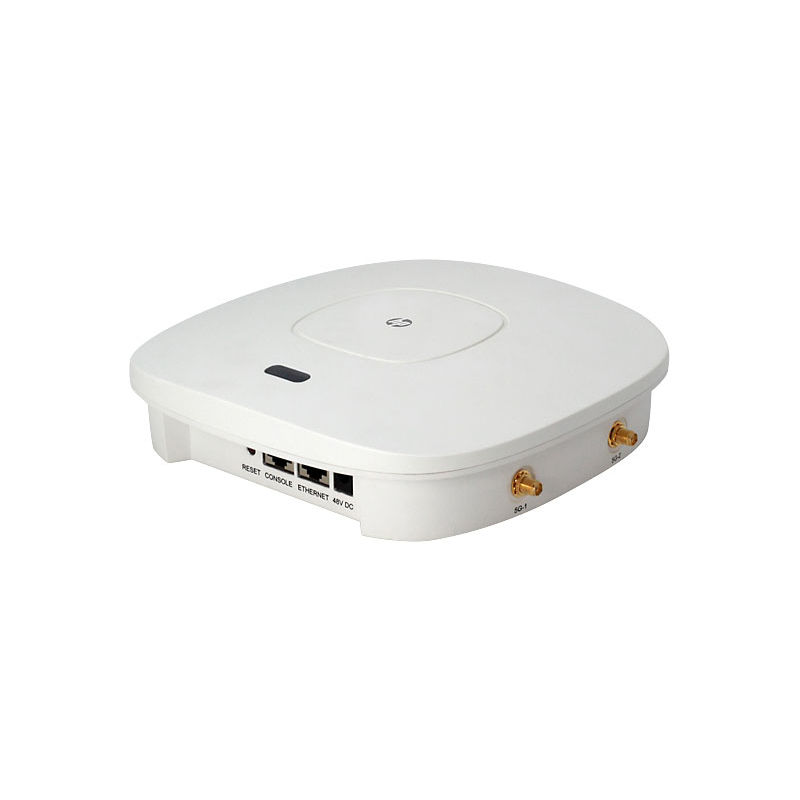

JG688A, HPE 425 Wireless Access Point, 8x802.11n AP/Worldwide Version/8-Pack
SKU: JG688A · MPN: JG688A · Category: Networking
HP 425 Wireless 802.11n (WW) 8 Pack AP
Specifications
| Type | HP 425 Wireless Dual Radio 802.11n (WW) 8 unit Eco-pack Access Points |
|---|---|
| Ports | · 1 RJ-45 autosensing 10/100/1000 port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 1 RJ-45 serial console port |
| Radio | FCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN 300 328; ARIB STD-T66; IDA Registration (Singapore); RCR STD-33; ARIB STD-T71 (Japan); EN 301 893 (EU); KCC approval (Korea) |
| Safety | UL 2043; UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1 |
| Weight | 1.65 lb (.75 kg) mounting bracket |
| Medical | EN60601-1-2 |
| Features | Dual radio: IEEE 802.11a/n for high-throughput applications and IEEE 802.11b/g/n for legacy support applications - Integrated antennas for both IEEE radios, supporting two spatial streams and 2x2 MIMO - Four embedded antennas - Both radios operate at full power and full performance on IEEE 802.3af PoE/Gigabit Ethernet - External antenna, optional |
| Mobility | IEEE 802.11a High Speed Physical Layer in the 5 GHz Band IEEE 802.11b Higher-Speed Physical Layer Extension in the 2.4 GHz Band IEEE 802.11h Dynamic Frequency Selection IEEE 802.11d Global Harmonization IEEE 802.11i Medium Access Control (MAC) Security Enhancements IEEE 802.11g Further Higher Data Rate Extension in the 2.4 GHz Band |
| Emissions | EN 55022 Class B; EN 301 489-1; EN 301 489-17; ICES-003 Class B; FCC Part 15, Class B |
| Dimensions | 7.43(w) x 7.43(d) x 2(h) in (18.86 x 18.86 x 5.08 cm) |
| RF Exposure | FCC Bulletin OET-65C; RSS-102; CFR 47, Part 2, Subpart J; ANSI/IEEE C95.1 (99); Ministry of Health Safety Code 6; Australian Radiation Protection Std. |
| Product Type | HP 425 Wireless Dual Radio 802.11n (WW) 8 unit Eco-pack Access Points |
| Frequency band | World Wide |
| AP characteristics | Radios (built-in): 802.11 a/n, b/g/n Radio operation modes: Client access, Local mesh, Packet capture AP operation modes: Controlled Wi-Fi Alliance: Certification a/b/g/n Wi-Fi Certified Antenna: (2) 4 dBi 2.4 GHz and (2) 5 dBi 5 GHz omnidirectional antennas Number of internal antennas: 4 Number of external antennas: 4 |
| Memory and processor | Single core @ 560 MHz, 128 MB flash, 128 MB SDRAM |
| Operating temperature | 32°F to 113°F (0°C to 45°C) |
| Mounting and enclosure | Indoor, plenum rated;Includes ceiling/wall mount kei as well as two ceiling mounting |
| Electrical characteristics | Description: IEEE 802.3af PoE compliant for Gigabit Ethernet Maximum power rating: 12.9 W |
| Operating relative humidity | 5% to 95%, |
| Non-operating/ Storage relative humidity | 5% to 95%, noncondensing |
| noncondensing Non-operating/ Storage temperature | -40°F to 158°F (-40°C to 70°C) |
| Warranty | 3-Year Warranty |
