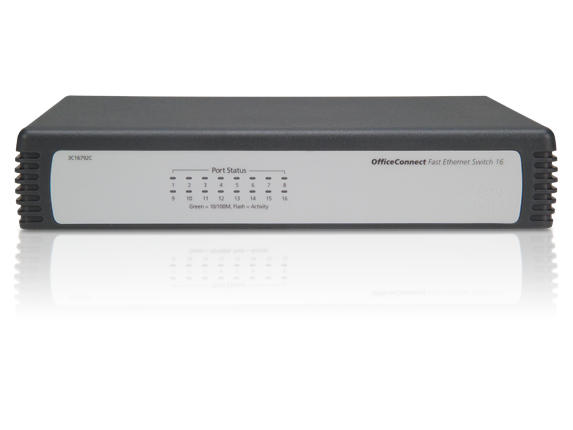

HP V 1405-16 Unmanaged L2 Fast Ethernet (10/100) Grey
Brand: HP · SKU: JD858AABA · MPN: JD858AABA · Category: Components
HP V 1405-16, Unmanaged, L2, Fast Ethernet (10/100), Full duplex. HP V 1405-16 Unmanaged L2 Fast Ethernet (10/100) Grey (part number JD858AABA) is an enterprise components product available from Server Tech Central. Key specifications include depth 160 mm, width 208.3 mm, height 40.6 mm, weight 640 g, stackable No, throughput 2.4 Mpps, 10g support No, full duplex Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 160 mm |
|---|---|
| Width | 208.3 mm |
| Height | 40.6 mm |
| Weight | 640 g |
| Stackable | No |
| Throughput | 2.4 Mpps |
| 10G support | No |
| Full duplex | Yes |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Auto MDI/MDI-X | Yes |
| Product colour | Grey |
| AC input voltage | 100 - 240 V |
| MAC address table | 4096 entries |
| AC input frequency | 50 - 60 Hz |
| Switching capacity | 3.2 Gbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Packet buffer memory | 1.6 MB |
| Latency (10-100 Mbps) | 5 µs |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 - 40 °C |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Warranty | 3-Year Warranty |
| Weight | 640 g |
| Dimensions | 208.3 mm x 160 mm x 40.6 mm |
Product Description
HP 1405 Small Office Switch Series consists of plug-and-play unmanaged 5-, 8-, and 16-port Layer 2 switches designed for small offices, in both Gigabit and Fast Ethernet configurations. The switches are preconfigured for fast, easy installation, with connections using low-cost Ethernet copper cabling. They support administration-friendly features such as auto-negotiation and automatic cable type detection (MDI/MDIX). They are Class B certified and approved for both business and home office locations. Version 2 5- and 8-port models have energy-saving features such as Energy Efficient Ethernet (EEE) and idle-port powerdown. All models are fanless for quiet and "green" operation, and are designed for high reliability, long life, low power consumption, and low total cost of ownership. These switches come with a 3-year warranty, covering unit and adapter, and 3-year access to HP phone support. Quality of Service (QoS) • IEEE 802.1p prioritization with DSCP: v2 devices deliver data to devices based on the priority and type of traffic using Differentiated Services Code Point (DSCP) Connectivity • Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 ports Performance • Half-/Full-duplex auto-negotiating capability on every port: doubles the throughput of every port Ease of use • Flow control: helps ensure reliable communications during full-duplex operation Flexibility • Fanless design: enables quiet operation for deployment in open spaces (selected models) Additional information • Green initiative support: provides support for RoHS and WEEE regulations Warranty and support • 3-year warranty: with advance replacement and next-business-day delivery (available in most countries)
Key Features
HP V 1405-16. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 4096 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u
Frequently Asked Questions
Is this product genuine OEM?
Yes, this HP V 1405-16 Unmanaged L2 Fast Ethernet (10/100) Grey (JD858AABA) is 100% genuine HP hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This HP V 1405-16 Unmanaged L2 Fast Ethernet (10/100) Grey includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the HP V 1405-16 Unmanaged L2 Fast Ethernet (10/100) Grey compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the JD858AABA.
