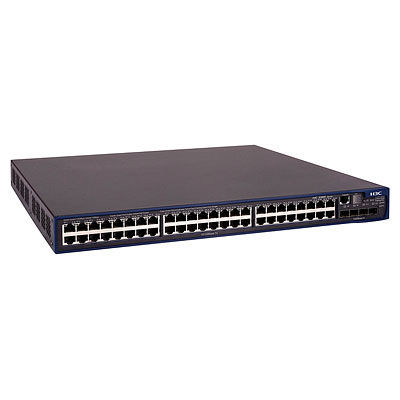

HP A 3600-48-PoE EI Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
Brand: HP · SKU: JD328AABA · MPN: JD328AABA · Category: Components
HP A 3600-48-PoE EI, Managed, L3, Fast Ethernet (10/100), Power over Ethernet (PoE), Rack mounting, 1U. HP A 3600-48-PoE EI Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black (part number JD328AABA) is an enterprise components product available from Server Tech Central. Key specifications include depth 440 mm, width 420 mm, height 43.6 mm, weight 6.5 kg, stackable Yes, throughput 11.8 Mpps, 10g support No, form factor 1U. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 440 mm |
|---|---|
| Width | 420 mm |
| Height | 43.6 mm |
| Weight | 6.5 kg |
| Stackable | Yes |
| Throughput | 11.8 Mpps |
| 10G support | No |
| Form factor | 1U |
| Full duplex | Yes |
| Switch type | Managed |
| Console port | RJ-45 |
| Flash memory | 16 MB |
| Switch layer | L3 |
| VLAN support | Yes |
| DHCP features | DHCP server, DHCP client |
| IGMP snooping | Yes |
| Rack mounting | Yes |
| Port mirroring | Yes |
| Product colour | Black |
| Internal memory | 64 MB |
| Routing entries | 8448 |
| SSH/SSL support | Yes |
| AC input voltage | 100 - 240 V |
| Heat dissipation | 563 BTU/h |
| Warranty | 3-Year Warranty |
| Weight | 6.5 kg |
| Dimensions | 420 mm x 440 mm x 43.6 mm |
Product Description
The HP 3600 EI Switch Series delivers premium levels of intelligent and resilient performance, security, and reliability for robust switching at the enterprise network edge. The series consists of Layer 3 Fast Ethernet and PoE/PoE+ switches, with advanced features that can accommodate the most demanding applications. Secure, resilient connectivity and the latest traffic-prioritization technologies enhance converged networks. Designed for increased flexibility and scalability, HP 3600 EI series switches come with 24 or 48 10/100 ports, four active SFP-based Gigabit Ethernet ports for stacking and uplinks, and a 24-port 100BASE-FX switch with two or four Gigabit Ethernet SFP slots. Quality of Service (QoS) • Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic Management • IPv6 management for v2 switches: future-proofs networking, asthe switch is capable of being managed whether the attached network is running IPv4 or IPv6; supportspingv6, tracertv6, Telnetv6, TFTPv6, DNSv6, syslogv6, FTPv6, SNMPv6, DHCPv6, and RADIUS for IPv6 Connectivity • Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 ports Performance • Gigabit Ethernet interface: provides a connection to the network that eliminates the network as a bottleneck Resiliency and high availability • Separate data and control paths: keeps control separated from services and keeps service processing isolated; increases security and performance Manageability • RMON (remote monitoring): provides advanced monitoring and reporting capabilities for statistics, history, alarms, and events Layer 2 switching • 16/32K MAC address table: provides access to many Layer 2 devices
Key Features
HP A 3600-48-PoE EI. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. Full duplex. MAC address table: 32000 entries, Switching capacity: 17.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Frequently Asked Questions
Is this product genuine OEM?
Yes, this HP A 3600-48-PoE EI Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black (JD328AABA) is 100% genuine HP hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This HP A 3600-48-PoE EI Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the HP A 3600-48-PoE EI Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the JD328AABA.
