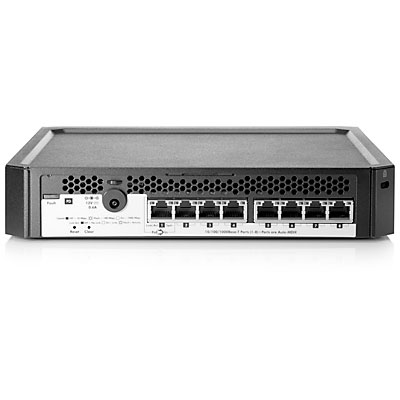

HP PS1810-8G Managed L2 Gigabit Ethernet (10/100/1000) Grey
Brand: HP · SKU: J9833AABA · MPN: J9833AABA · Category: Components
HP PS1810-8G, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex
Specifications
| Depth | 245 mm |
|---|---|
| Width | 230 mm |
| Height | 43.9 mm |
| Weight | 1.23 kg |
| Throughput | 11.9 Mpps |
| 10G support | No |
| Full duplex | Yes |
| Switch type | Managed |
| Auto-sensing | Yes |
| Flash memory | 8 MB |
| Switch layer | L2 |
| VLAN support | Yes |
| Rack mounting | No |
| Auto MDI/MDI-X | Yes |
| Port mirroring | Yes |
| Product colour | Grey |
| Internal memory | 128 MB |
| SSH/SSL support | Yes |
| AC input voltage | 100 - 240 V |
| Latency (1 Gbps) | 2.3 µs |
| Link aggregation | Yes |
| MAC address table | 8000 entries |
| AC input frequency | 50 - 60 Hz |
| Switching capacity | 16 Gbit/s |
| Warranty | 3-Year Warranty |
| Weight | 1.23 kg |
| Dimensions | 230 mm x 245 mm x 43.9 mm |
Product Description
HP PS1810 Switch Series devices are smart-managed, fixed-configuration Gigabit Layer 2 switches that are purpose built to work with HP ProLiant Gen8 Servers. They are designed for small businesses looking for key networking features in an easy-to-administer solution. The series includes 8- and 24-port Gigabit switch models. 24 port model include SFP ports for fiber connectivity. 8 port model has an innovative design that allows it to be stacke on the HP Proliant MicroServer Gen8. Both models have fanless design making them ideal for office deployments. The 8-port Gigabit Ethernet model can optionally be powered by an upstream Power over Ethernet (PoE) switch. Key feature is the auto-discovery and monitoring of HP Proliant Servers. Customizable features include VLANs, Spanning Tree, and link aggregation trunking. The 8- and 24-port models include the latest energy-saving capabilities—Energy Efficient Ethernet (EEE) and idle-port power down All come with a lifetime warranty. Management • HP Proliant Server Dashboard: enables autodiscovery of HP ProLiant Gen8 servers in the network; provides up-to-date server health status for up to ten monitored servers Connectivity • Auto-MDI/MDIX: adjusts automatically for straight-through or crossover cables on all ports Layer 2 switching • VLAN support and tagging: supports up to 64 port-based VLANs and dynamic configuration of IEEE 802.1Q VLAN tagging, providing security between workgroups Resiliency and high availability • IEEE 802.1D Spanning Tree Protocol (STP) and IEEE 802.1W Rapid Spanning Tree Protocol (RSTP; v2 models): provides redundant links while preventing network loops Security • Secure Sockets Layer (SSL): encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch Ease of use • Locator LED (switch): allows users to set the locator LED on a specific switch to either turn on, blink, or turn off; simplifies troubleshooting by making it easy to locate a particular switch within a rack of similar switches Flexibility • Flexible mounting options: stacks physically on top of an HP ProLiant MicroServer Gen8 due to the unique design of the switch (8-port model); 24-port model ships with rackmount kit; both switches support desktop, wall mount, and under table mounting options
Key Features
HP PS1810-8G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Frequently Asked Questions
Is this product genuine OEM?
Yes, this HP PS1810-8G Managed L2 Gigabit Ethernet (10/100/1000) Grey (J9833AABA) is 100% genuine HP hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This HP PS1810-8G Managed L2 Gigabit Ethernet (10/100/1000) Grey includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the HP PS1810-8G Managed L2 Gigabit Ethernet (10/100/1000) Grey compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the J9833AABA.
