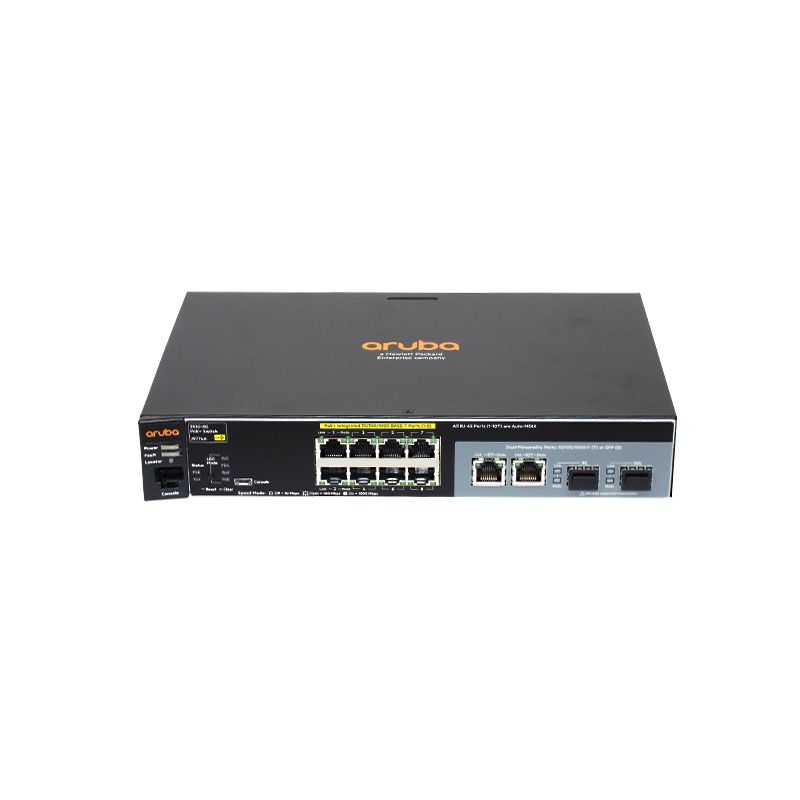

J9774A, Aruba 2530 Switch, 8xGE PoE+/Fanless/Layer 2
SKU: J9774A · MPN: J9774A · Category: Networking
Specifications
| Weight | 2.2 lb (1 kg) |
|---|---|
| Current | 1.4 A |
| Frequency | 50/60 Hz |
| Processor | ARM9E @ 800 MHz, 128 MB flash,256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated |
| AC voltage | 100 - 127/200 - 240 VAC |
| Dimensions | 10.00(w) x 6.28(d) x 1.75(h) in (25.4 x 15.95 x 4.45 cm) (1U height) |
| Throughput | up to 14.8 Mpps (64-byte packets) |
| 100 Mb Latency | < 7.4 µs (LIFO 64-byte packets) |
| 1000 Mb Latency | < 2.6 µs (LIFO 64-byte packets) |
| Switching capacity | 20 Gbps |
| I/O ports and slots | 8 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10E-T/100BASE-TX: half or full; 1000BASE-T: full only 2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100BaseTX; IEEE 802.3ab1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) 1 dual-personality (RJ-45 or USB micro-B) serial console port |
| Maximum power rating | 86 W |
| Operating temperature | 32°F to 113°F (0°C to 45°C) |
| MAC address table size | 16000 entries |
| Mounting and enclosure | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); Horizontal surface mounting; Wall mounting |
| Operating relative humidity | 15% to 95% @ 104°F (40°C),noncondensing |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this J9774A, Aruba 2530 Switch, 8xGE PoE+/Fanless/Layer 2 (J9774A) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This J9774A, Aruba 2530 Switch, 8xGE PoE+/Fanless/Layer 2 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the J9774A, Aruba 2530 Switch, 8xGE PoE+/Fanless/Layer 2 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the J9774A.
