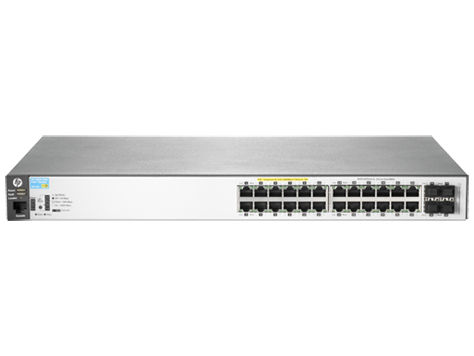

HP 2530-24G-PoE+ Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Brand: HP · SKU: J9773AABA · MPN: J9773AABA · Category: Components
HP 2530-24G-PoE+, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U. HP 2530-24G-PoE+ Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey (part number J9773AABA) is an enterprise components product available from Server Tech Central. Key specifications include depth 330.2 mm, width 443 mm, height 44.5 mm, weight 3.95 kg, stackable Yes, throughput 41.6 Mpps, 10g support No, form factor 1U. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 330.2 mm |
|---|---|
| Width | 443 mm |
| Height | 44.5 mm |
| Weight | 3.95 kg |
| Stackable | Yes |
| Throughput | 41.6 Mpps |
| 10G support | No |
| Form factor | 1U |
| Full duplex | Yes |
| MIB support | Y |
| Memory type | DDR3-SDRAM |
| Switch type | Managed |
| Auto-sensing | Yes |
| Flash memory | 128 MB |
| Switch layer | L2 |
| VLAN support | Yes |
| Rack mounting | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Port mirroring | Yes |
| Product colour | Grey |
| Internal memory | 256 MB |
| Processor model | ARM9 |
| SSH/SSL support | Yes |
| Warranty | 3-Year Warranty |
| Weight | 3.95 kg |
| Dimensions | 443 mm x 330.2 mm x 44.5 mm |
Product Description
Features Cost-Effective, Reliable and Secure Access Layer Switches - The HP 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. - Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, and IPv6 host support. - Right size deployment with choice of 8-, 24-, and 48-port models available with Gigabit or Fast Ethernet ports, optional PoE+, and optional 10GbE uplinks. - Power savings with fanless models, Energy Efficient Ethernet (IEEE 802.3az), and ability to disable LEDs and enable port low power mode. - Limited Lifetime Warranty 2.0 with 3 years 24x7 phone support and no software licensing required. Security and Quality of Service (QoS) - The HP 2530 Switch Series supports flexible authentication methods including Local MAC, 802.1X, and MAC and Web for greater policy-driven application security. - Advanced denial of service (DOS) protection, such as DHCP Protection, Dynamic ARP protection, and Dynamic IP lockdown, enhance security. Flexible traffic controls include ACLs and QoS. - Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to either two or four queues using weighted deficit round robin (WDRR) or strict priority (SP). - Defend your IPv6 network with DHCPv6 Protection. Simple Deployment and Management - The HP 2530 Switch Series supports a choice of management interfaces with Web GUI, command-line interface (CLI), and SNMP with either console or micro USB ports. - Quiet operation with fanless and variable speed fan models. - Flexible deployment with wall, table, and rack mounting options. - TR-069 delivers zero touch deployment for devices with dynamic IP addresses and on private networks. Single View of the Network - The HP 2530 Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management. - RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
Key Features
HP 2530-24G-PoE+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Frequently Asked Questions
Is this product genuine OEM?
Yes, this HP 2530-24G-PoE+ Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey (J9773AABA) is 100% genuine HP hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This HP 2530-24G-PoE+ Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the HP 2530-24G-PoE+ Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the J9773AABA.
