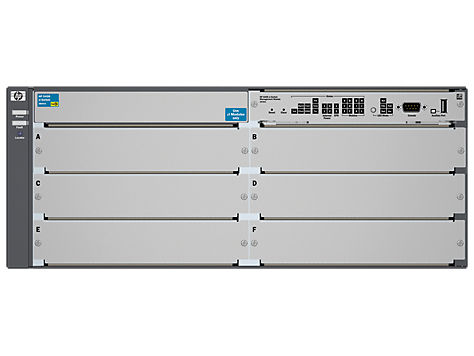

HP ProCurve 5406 zl Managed L3 10G Ethernet (100/1000/10000) 4U Grey
Brand: HP · SKU: J9642AZ · MPN: J9642AZ · Category: Components
HP ProCurve 5406 zl, Managed, L3, 10G Ethernet (100/1000/10000), Rack mounting, 4U. HP ProCurve 5406 zl Managed L3 10G Ethernet (100/1000/10000) 4U Grey (part number J9642AZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 450.9 mm, width 444.5 mm, height 175.3 mm, weight 10.7 kg, ip routing Yes, throughput 282.1 Mpps, 10g support Yes, form factor 4U. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 450.9 mm |
|---|---|
| Width | 444.5 mm |
| Height | 175.3 mm |
| Weight | 10.7 kg |
| IP routing | Yes |
| Throughput | 282.1 Mpps |
| 10G support | Yes |
| Form factor | 4U |
| Memory type | DDR-SDRAM |
| Switch type | Managed |
| Auto-sensing | Yes |
| Flash memory | 4 MB |
| Switch layer | L3 |
| VLAN support | Yes |
| DHCP features | DHCP server, DHCP client |
| IGMP snooping | Yes |
| Rack mounting | Yes |
| Auto MDI/MDI-X | Yes |
| Product colour | Grey |
| Internal memory | 256 MB |
| SSH/SSL support | Yes |
| AC input voltage | 100 - 240 V |
| Heat dissipation | 2450 BTU/h |
| Latency (1 Gbps) | 3.7 µs |
| Warranty | 3-Year Warranty |
| Weight | 10.7 kg |
| Dimensions | 444.5 mm x 450.9 mm x 175.3 mm |
Product Description
The HP 5400 zl Switch Series consists of advanced intelligent switches in the HP modular chassis product line, which includes 6-slot and 12-slot chassis and associated zl modules and bundles. The foundation for the switch series is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as Quality of Service (QoS) and security, to be implemented in a scalable yet granular fashion. With 10/100, Gigabit Ethernet, and 10 Gigabit Ethernet interfaces; choice of PoE+ and non-PoE; integrated Layer 3 features; and HP AllianceOne solutions, the 5400 zl switch series offers excellent investment protection, flexibility, and scalability, as well as ease of deployment, operation, and maintenance. Features Software-defined networking - OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths Quality of Service (QoS) - Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis - Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers - Traffic prioritization: allows real-time traffic classification into eight priority levels mapped to eight queues - Bandwidth shaping: Port-based rate limiting: provides per-port ingress-/egress-enforced increased bandwidth. Classifier-based rate limiting: uses an access control list (ACL) to enforce increased bandwidth for ingress traffic on each port. Reduced bandwidth: provides per-port, per-queue egress-based reduced bandwidth. - Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ Management - Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch located anywhere on the network - RMON, XRMON, and sFlow v5: provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events - IEEE 802.1AB Link Layer Discovery Protocol (LLDP): advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications - Uni-Directional Link Detection (UDLD): monitors a cable between two switches and shuts down the ports on both ends if the cable is broken, turning the bidirectional link into a unidirectional one; this prevents network problems such as loops - Management simplicity: provides common software features and CLI implementation across all HP ProVision-based switches (including the zl and yl switches) Connectivity - IEEE 802.3az Energy Efficient Ethernet: lowers power consumption in periods of low link usage (supported on v2 zl 10/100/1000 and 10/100 modules) - IEEE 802.3af Power over Ethernet (PoE): provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access points, and security cameras - IEEE 802.3at Power over Ethernet Plus: provides up to 30 W per port to IEEE 802.3 for PoE- and PoE+-powered devices, such as video IP phones, IEEE 802.11n wireless access points, and advanced pan/zoom/tilt security cameras - Prestandard PoE support: detects and provides power to prestandard PoE devices - High-density port connectivity: provides up to 12 interface module slots and up to 288 wire-speed 10/100/1000 PoE-enabled ports or 96 10-GbE ports per system
Key Features
HP ProCurve 5406 zl. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 64000 entries, Switching capacity: 379.2 Gbit/s. Rack mounting, Form factor: 4U
Frequently Asked Questions
Is this product genuine OEM?
Yes, this HP ProCurve 5406 zl Managed L3 10G Ethernet (100/1000/10000) 4U Grey (J9642AZ) is 100% genuine HP hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This HP ProCurve 5406 zl Managed L3 10G Ethernet (100/1000/10000) 4U Grey includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the HP ProCurve 5406 zl Managed L3 10G Ethernet (100/1000/10000) 4U Grey compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the J9642AZ.
