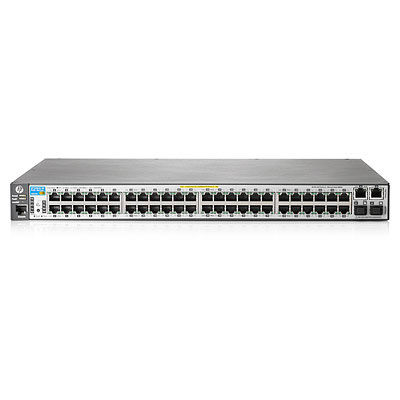

HP ProCurve 2620-48 Managed L3 1U Silver
Brand: HP · SKU: J9626A#*KIT1 · MPN: J9626A#*KIT1 · Category: Components
HP ProCurve 2620-48, Managed, L3, Full duplex, Rack mounting, 1U. HP ProCurve 2620-48 Managed L3 1U Silver (part number J9626A#*KIT1) is an enterprise components product available from Server Tech Central. Key specifications include depth 254 mm, width 443 mm, height 43.9 mm, weight 2.94 kg, latency 100 Mb Latency: < 8.3 µs (LIFO); 1000 Mb Latency: < 2.9 µs (LIFO), stackable Yes, throughput 13 Mpps, 10g support No. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 254 mm |
|---|---|
| Width | 443 mm |
| Height | 43.9 mm |
| Weight | 2.94 kg |
| Latency | 100 Mb Latency: < 8.3 µs (LIFO); 1000 Mb Latency: < 2.9 µs (LIFO) |
| Stackable | Yes |
| Throughput | 13 Mpps |
| 10G support | No |
| Form factor | 1U |
| Full duplex | Yes |
| Memory type | SDRAM |
| Noise level | 36.5 dB |
| Switch type | Managed |
| Switch layer | L3 |
| DHCP features | DHCP client |
| Rack mounting | Yes |
| Auto MDI/MDI-X | Yes |
| Product colour | Silver |
| Internal memory | 512 MB |
| Processor model | PowerPC MPC8313 |
| SSH/SSL support | Yes |
| AC input voltage | 100 - 240 V |
| MAC address table | 16000 entries |
| AC input frequency | 50 - 60 Hz |
| Warranty | 3-Year Warranty |
| Weight | 2.94 kg |
| Dimensions | 443 mm x 254 mm x 43.9 mm |
Product Description
The HP 2620 Switch Series consists of five switches with 10/100 connectivity. The HP 2620-24 Switch is a fanless switch with quiet operation, making it ideal for deployments in open spaces. The HP 2620-24-PPoE+ Switch, HP 2620-24-PoE+ Switch, and HP 2620-48-PoE+ Switch are IEEE 802.3af- and IEEE 802.3at-compliant switches and provide up to 30 W per powered port. The HP 2620-48 Switch has variable speed fans for quiet operation. All 2620 series switches include two 10/100/1000BASE-T ports and two SFP slots for Gigabit Ethernet uplink connectivity. An optional redundant external power supply is also available to provide redundancy in the event of a power supply failure. With IPv4/IPv6 static and RIP routing, robust security and management features, free lifetime warranty, and free software updates, the HP 2620 Switch Series is a cost-effective solution for customers who are building converged enterprise edge networks. Features Quality of Service (QoS) - Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers - Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to eight queues - Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ - Rate limiting: sets per-port ingress enforced maximums and per-port, per-queue guaranteed minimums Connectivity - Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 ports - IPv6: IPv6 host: allows the switches to be managed and deployed at the edge of an IPv6 network. Dual stack (IPv4/IPv6): provides a transition mechanism from IPv4 to IPv6; supports connectivity for both protocols. MLD snooping: forwards IPv6 multicast traffic to the appropriate interface; prevents IPv6 multicast traffic from flooding the network. - IEEE 802.3af Power over Ethernet (PoE): provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access points, and security cameras - IEEE 802.3at Power Over Ethernet Plus: provides up to 30 W per port to IEEE 802.3 for PoE-/PoE+-powered devices such as video IP phones, IEEE 802.11n wireless access points, and advanced pan/tilt/zoom security cameras - Pre-standard PoE support: detects and provides power to pre-standard PoE devices; see list of supported devices in the product FAQ at www.hp.com/networking/support Resiliency and high availability - External redundant power supply: provides high reliability - IEEE 802.3ad Link Aggregation Protocol (LACP) and HP port trunking: support up to 24 trunks, each with up to 8 links (ports) per trunk - IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees Manageability - Dual flash images: provides independent primary and secondary operating system files for backup while upgrading - Friendly port names: allow assignment of descriptive names to ports - Find-Fix-Inform: finds and fixes common network problems automatically, then informs administrator - Multiple configuration files: allow multiple configuration files to be stored to a flash image - Software updates: free downloads from the Web Layer 2 switching - VLANs: provide support for 512 VLANs and 4,094 VLAN IDs - Jumbo packet support: supports up to 9220-byte frame size to improve the performance of large data transfers - IEEE 802.1v protocol VLANs: isolate select non-IPv4 protocols automatically into their own VLANs - Layer 3 routing - Static IP routing: provides manually configured routing; includes ECMP capability - Routing Information Protocol (RIP): provides RIPv1 and RIPv2 routing Security - Access control lists (ACLs): provide IP Layer 3 filtering based on source/destination IP address/subnet and source/destination TCP/UDP port number - Source-port filtering: allows only specified ports to communicate with each other - RADIUS/TACACS+: eases switch management security administration by using a password authentication server - Secure Shell: encrypts all transmitted data for secure remote CLI access over IP networks - Secure Sockets Layer (SSL): encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch
Key Features
HP ProCurve 2620-48. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 17.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Rack mounting, Form factor: 1U
