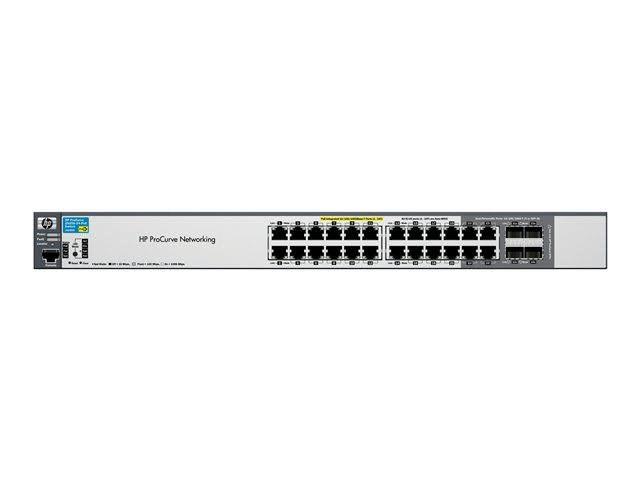

HP ProCurve 2520-24G-PoE Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Brand: HP · SKU: J9299AABA · MPN: J9299AABA · Category: Components
HP ProCurve 2520-24G-PoE, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U. HP ProCurve 2520-24G-PoE Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black (part number J9299AABA) is an enterprise components product available from Server Tech Central. Key specifications include depth 246.1 mm, width 443 mm, height 44.5 mm, weight 3.27 kg, stackable Yes, throughput 35.7 Mpps, 10g support No, form factor 1U. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 246.1 mm |
|---|---|
| Width | 443 mm |
| Height | 44.5 mm |
| Weight | 3.27 kg |
| Stackable | Yes |
| Throughput | 35.7 Mpps |
| 10G support | No |
| Form factor | 1U |
| Full duplex | Yes |
| MIB support | Y |
| Memory type | DDR2-SDRAM |
| Switch type | Managed |
| Auto-sensing | Yes |
| Console port | RJ-45 |
| Flash memory | 32 MB |
| Switch layer | L2 |
| VLAN support | Yes |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Rack mounting | Yes |
| Auto MDI/MDI-X | Yes |
| Port mirroring | Yes |
| Product colour | Black |
| Internal memory | 128 MB |
| Warranty | 3-Year Warranty |
| Weight | 3.27 kg |
| Dimensions | 443 mm x 246.1 mm x 44.5 mm |
Product Description
The HP 2520 switch series is ideally suited for small and medium businesses looking to deploy voice, video, or wireless solutions that require Power over Ethernet (PoE) connectivity. The series consists of four switches: the HP 2520-8-PoE, 2520-24-PoE, 2520-8G-PoE, and 2520-24G-PoE Switches. The four models offer a choice of either Fast Ethernet or Gigabit Ethernet connectivity. All models also include support for dual-personality Gigabit Ethernet ports that can be used for either copper or fiber connectivity. All products are fully managed via SNMP, command-line interface (CLI), and graphical user interface (GUI) and offer a Layer 2 feature set. In addition, the products provide deployment flexibility with compact, quiet, and energy-efficient designs. Quality of Service (QoS) • Selectable queue configuration: allows you to increase performance and/or traffic reliability by selecting the number of queues that best meet the requirements of your network applications; switch will map 8 priorities to either 2 or 4 queues Management • Choice of management interfaces: Web graphical user interface (GUI): easy-to-use graphical interface allows configuration of the switch from any Web browser. Command-line interface (CLI): robust command-line interface provides advanced configuration and diagnostics. Simple Network Management Protocol (SNMPv2c/SNMPv3): allows switch to be managed with a variety of third-party network management applications. Connectivity • Auto-MDIX: automatically adjusts for straight-through or crossover cables on all ports Performance • Switch on a chip: provides highly integrated, high-performance switch design with a non-blocking architecture Resiliency and high availability • Port trunking and link aggregation: Trunking: supports up to eight links per trunk to increase bandwidth and create redundant connections. IEEE 802.3ad Link Aggregation Protocol (LACP): eases configuration of trunks through automatic configuration. Layer 2 switching • VLAN support and tagging: supports the IEEE 802.1Q (4,094 VLAN IDs) and up to 256 port-based VLANs simultaneously Security • Manager and operator privilege levels: enables read-only (operator) and read-write (manager) access on management interfaces
Key Features
HP ProCurve 2520-24G-PoE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Frequently Asked Questions
Is this product genuine OEM?
Yes, this HP ProCurve 2520-24G-PoE Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black (J9299AABA) is 100% genuine HP hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This HP ProCurve 2520-24G-PoE Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the HP ProCurve 2520-24G-PoE Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the J9299AABA.
