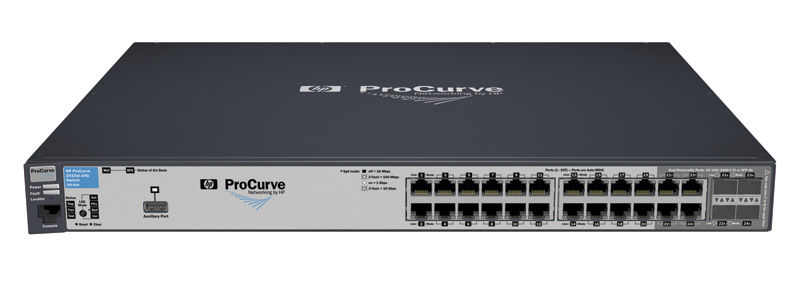

HP ProCurve E2910-24G-PoE+ al Switch + Care Pack Managed Power over Ethernet (PoE) 1U

Specifications

Product Description

The HP 2910 al Switch Series consists of four switches: the HP 2910-24G al and 2910-24G-PoE+ al Switches with 24 10/100/1000 ports, and the HP 2910-48G al and 2910-48G-PoE+ al Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or mini-GBIC connectivity. In addition, the 2910 al Switch Series supports up to four optional 10 Gigabit Ethernet (CX4 and/or SFP+) ports, thereby offering the most flexible and easy-to-deploy uplinks in its class. Together with static and RIP IPv4 routing, robust security and management, enterprise-class features, free lifetime warranty, and free software updates, the 2910 series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at enterprise edge and remote branch offices, converged networks, and data center top of rack. Features Quality of Service (QoS) - Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to eight queues - Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers - Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ - Rate limiting: per-port ingress enforced maximums Connectivity - 10 Gbps Ethernet connectivity: up to four optional and flexible 10-Gigabit ports (CX4 and/or SFP+), with optional interconnect kit for short-distance connectivity - IPv6: IPv6 host: allows the switches to be managed and deployed at the edge of IPv6 networks . Dual stack (IPv4/IPv6): provides transition mechanism from IPv4 to IPv6; supports connectivity for both protocols. MLD snooping: forwards IPv6 multicast traffic to the appropriate interface; prevents IPv6 multicast traffic from flooding the network. - IEEE 802.3af Power over Ethernet (PoE): provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access points, and security cameras - IEEE 802.3at Power Over Ethernet Plus: provides up to 30 W per port to IEEE 802.3 for PoE/PoE+ powered devices such as video IP phones, IEEE 802.11n wireless access points, and advanced pan/zoom/tilt security cameras - Pre-standard PoE support: detects and provides power to pre-standard PoE devices Performance - High-performance architecture: 128 Gbps switching fabric with up to 95 Mpps (24-port switches) and 176 Gbps switching fabric with up to 131 Mpps (48-port switches) - Selectable queue configurations: allow you to increase performance by selecting the number of queues and associated memory buffering that best meet the requirements of your network applications Resiliency and high availability - IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w - IEEE 802.3ad Link Aggregation Protocol (LACP) and HP port trunking: support up to 24 trunks, each with up to 8 links (ports) per trunk - Optional redundant power supply: supplies backup power in case of power failure (note: HP E620 Redundant/External Power Supplyprovides only RPS functionality) Manageability - RMON, XRMON, and sFlow: provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events - Uni-Directional Link Detection (UDLD): monitors a link between two switches and blocks the ports on both ends of the link if the link goes down at any point between the two devices - Command authorization: leverages RADIUS to link a custom list of CLI commands to an individual network administrator's login; also provides an audit trail - Dual flash images: provides independent primary and secondary operating system files for backup while upgrading - Multiple configuration files: allow multiple configuration files to be stored to a flash image Layer 2 switching - VLAN support and tagging: supports IEEE 802.1Q (4,094 VLAN IDs) and 256 VLANs simultaneously - GARP VLAN Registration Protocol: allows automatic learning and dynamic assignment of VLANs - Jumbo packet support: supports up to 9220-byte frame size to improve the performance of large data transfers - IEEE 802.1v protocol VLANs: isolate select non-IPv4 protocols automatically into their own VLANs Layer 3 routing - Static IP routing: provides manually configured routing; includes ECMP capability - Routing Information Protocol (RIP): provides RIPv1 and RIPv2 routing

Key Features

HP ProCurve E2910-24G-PoE+ al Switch + Care Pack. Switch type: Managed. Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
