Brand: Cisco · SKU: ISR4431-AXV/K9 · MPN: ISR4431-AXV/K9 · Category: Components

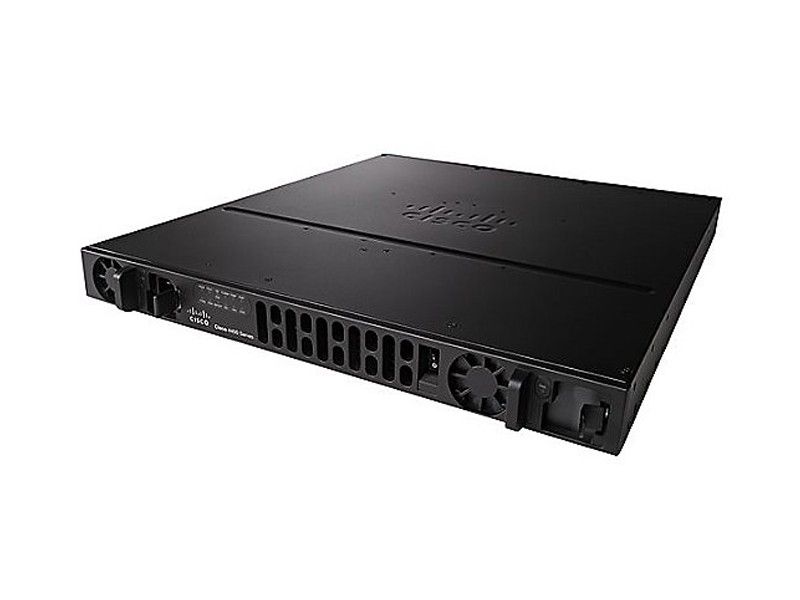

The Cisco ISR4431-AXV/K9 is a high-performance, modular enterprise router designed for branch offices requiring integrated voice, video, and data services. Part of the Cisco 4000 Series Integrated Services Routers, this AXV bundle specifically includes the Application Experience with Voice features, featuring a PVDM4-64 module, security (SEC), unified communications (UC), and Application (APP) licenses, along with a CUBE-25 license for session border control. It delivers aggregate throughput ranging from 500 Mbps to 1 Gbps. The architecture is built with separate control and data planes to ensure stable performance under heavy loads. It supports dual power supplies for redundancy and offers extensive connectivity with four onboard Gigabit Ethernet ports and three Network Interface Module (NIM) slots for modular expansion.
| Licensing | APP, SEC, UC, CUBE-25 |
|---|---|
| NIM Slots | 3 |
| Form Factor | 1RU Rack-mountable |
| Power Supply | Dual redundant AC options supported |
| Voice Module | PVDM4-64 |
| Routing Protocols | OSPF, BGP, EIGRP, MPLS, IS-IS, RIP, Static Routing |
| Security Features | Stateful Firewall, IPsec VPN, SSL VPN, IPS, URL Filtering |
| Aggregate Throughput | 500 Mbps to 1 Gbps |
| Default Flash Memory | 8 GB |
| Onboard WAN/LAN Ports | 4 (RJ-45 and SFP) |
| Default DRAM (Data Plane) | 2 GB |
| Default DRAM (Control Plane) | 4 GB |
| Warranty | 1-Year Limited Hardware Warranty (Cisco Standard) |
| Weight | 18.52 lbs (8.4 kg) |
| Dimensions | 1.73 x 17.25 x 20.0 inches (43.9 x 438.15 x 508 mm) |
The Cisco 4431 ISR provides a converged branch platform with industry-leading network, compute, and WAN services. It is designed to handle the growing need for application-aware networking in distributed enterprise sites, providing direct communication with private data centers and public clouds across diverse links including MPLS and the Internet.
Yes, this Cisco ISR 4431 AXV Bundle (PVDM4-64, APP, SEC, UC lic, CUBE-25) (ISR4431-AXV/K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Cisco ISR 4431 AXV Bundle (PVDM4-64, APP, SEC, UC lic, CUBE-25) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ISR4431-AXV/K9.
