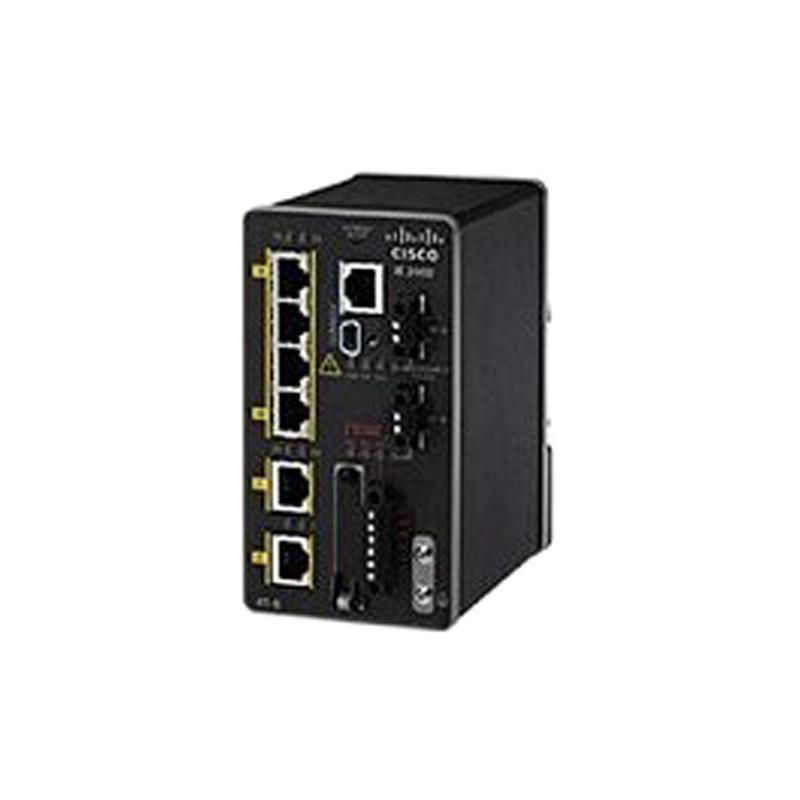

Cisco IE-2000-4T-B Industrial Ethernet Switch
Brand: Cisco · SKU: IE-2000-4T-B · MPN: IE-2000-4T-B · Category: Networking
The Cisco IE 2000 Series is a range of compact, ruggedized access switches designed for industrial environments such as automotive, oil and gas, mining, transportation, and energy. The IE-2000-4T-B is a fixed configuration model with 6 total ports and features the LAN Base manufacturing license. It supports Layer 2 switching with advanced features, industrial automation protocols (EtherNet/IP and PROFINET MRP), and high resilience via Cisco Resilient Ethernet Protocol (REP). Key hardware includes 6 FE RJ45 ports and necessary industrial environmental compliance and certifications. The device supports zero-touch discovery, fast boot-up time (60 seconds), and has an alarm I/O for two inputs and one output relay.
Specifications
| DRAM | 256 MB with ECC memory |
|---|---|
| Alarm I/O | Two alarm inputs to detect dry contact open or close; one alarm output relay |
| Max VLANs | 1005 (from general IE2000 specs) or 255 (from other sources) |
| SFP Ports | None (It has 6 FE RJ45 ports instead of SFP combo ports on this model) |
| RJ45 Ports | 6 FE |
| Total Ports | 6 |
| Flash Memory | 64 MB on-board flash memory |
| Egress Buffer | 2 MB |
| MAC Addresses | 8000 Unicast |
| Forwarding Rate | 5.66 Mpps (with 64-byte packets) or 6.5 Mpps (with 64-byte packets, from other sources) |
| Hardware Feature | IEEE 1588v2 FPGA, Mini-USB connector |
| Power Consumption | 9.5-15 W (for 4-port downlink models, close approximation) |
| Switching Bandwidth | 7.6 Gbps (Maximum) |
| Manufacturing License | LAN Base |
| Warranty | 12 Months Warranty Support (from a reseller) |
| Weight | 2.45 lb (1.11 kg) for the 6 ports chassis |
| Dimensions | 5.1” H x 2.95” W x 4.51” D in (130mm H x 74.9mm W x 115mm D) including DIN rail |
Key Features
The Cisco IE-2000-4T-B is a compact, fixed-port industrial switch featuring 6 Fast Ethernet RJ45 ports and a LAN Base license. It is designed for harsh environments, offering industrial hardening, Layer 2 management capabilities, and support for protocols like REP, EtherNet/IP, and PROFINET MRP. It includes alarm I/O for monitoring external contacts.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Cisco IE-2000-4T-B Industrial Ethernet Switch (IE-2000-4T-B) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Cisco IE-2000-4T-B Industrial Ethernet Switch includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Cisco IE-2000-4T-B Industrial Ethernet Switch compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the IE-2000-4T-B.
