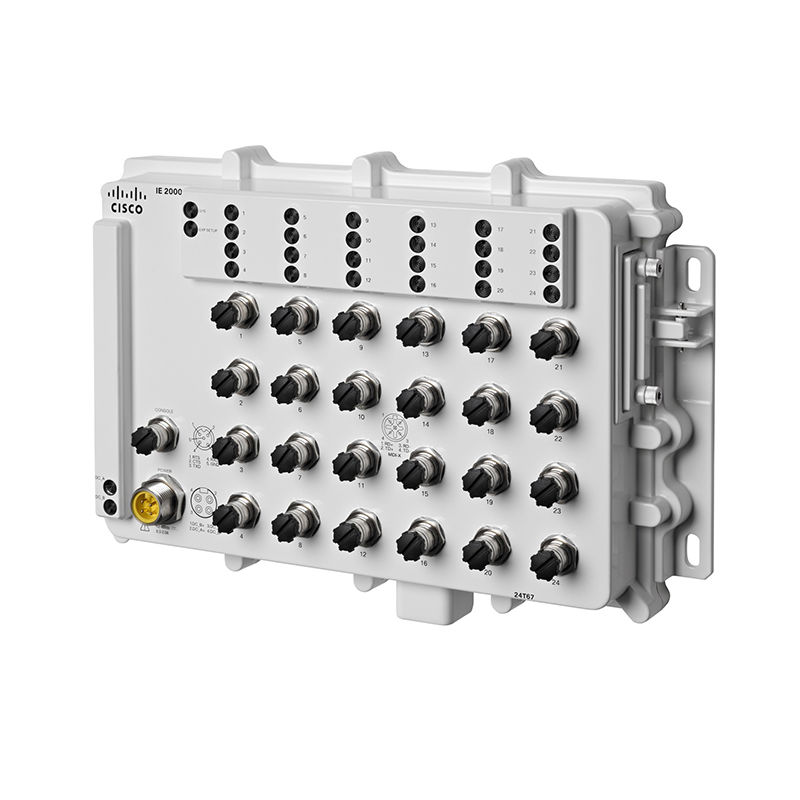

IE-2000-24T67-B, Cisco IE2000 Switch, 24x10/100Base-T, IP67, No Fan & PSU
SKU: IE-2000-24T67-B · MPN: IE-2000-24T67-B · Category: Components
Specifications
| MTBF | ● Mean time between failures: 374,052 hours (42.7 years) |
|---|---|
| Alarm | ● Alarm-one alarm output relay using an M12 A Coded 5 Pin connector (Max. rated: 24VDC @ 1A/48VDC @ 0.5A) |
| Weight | 8.86 lbs. (4.02 kg) |
| Hardware | ● 256MB DRAM with ECC memory ● IEEE 1588v2 FPGA ● 64MB on-board flash memory ● 1GB removable SD flash memory card (optional) |
| Total Ports | 24 |
| Power rating | ● 0.03 KVA |
| 100 MB D-code | 24 |
| Power consumption | ● 12-22W |
| Storage Temperature | ● -40°C to +85°C ● IEC 60068-2-14 ● Altitude: Up to 13,800 feet or 4,200 meters |
| Manufacturing license | LAN Base |
| Operating temperature | ● -40°C to +75°C ● -40°C to +70°C (vented enclosure operating) ● -40°C to +60°C (sealed enclosure operating) ● -34°C to +75°C (200 LFM or more fan- or blower-equipped enclosure operating) ● -40°C to +85°C (type tested to +85°C for 16 hours) ● Altitude: Up to 13,800 feet (4570 meters) |
| Connectors and cabling | Data cable ● Copper 100 Base-T M12 D coded 4-pole (pin) cable connector ● Copper GE M12 X coded-8-pole (pin)-cable connector Alarm cable ● M12 A-Coded 5-Pin Cable Console cable ● M12 A Coded 5-Pin connector Power supply cables ● Power cable for power source, Mini-Change A-Size single-ended cord set, 4 poles, female to pigtail, 16 AWG PVC cable. ● Power cable to IE2000 IP67 switch: Mini-Change A-size double-Ended Cordset, 4 poles male to female. 16 AWG, TPE cable. ● Power cable for AC-DC power source, Mini-change A-size single-ended cord set, 3 pins, female insert on one end to pigtail, 16 AWG PVC cable. ● Power cord from power source to power supply: 2 hole female power cord to open for input DC connector. |
| Dimensions (H x W x D) | 9.5” x 14.76” x 3.2” (241.7 x 374.8 x 81.5 mm) |
| Input voltage supported | ● 9.6-60VDC ● PWR-IE160W-67-DC=: 18-60VDC, 12A |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
