Brand: StarTech.com · SKU: IDE2SAT2 · MPN: IDE2SAT2 · Category: Components

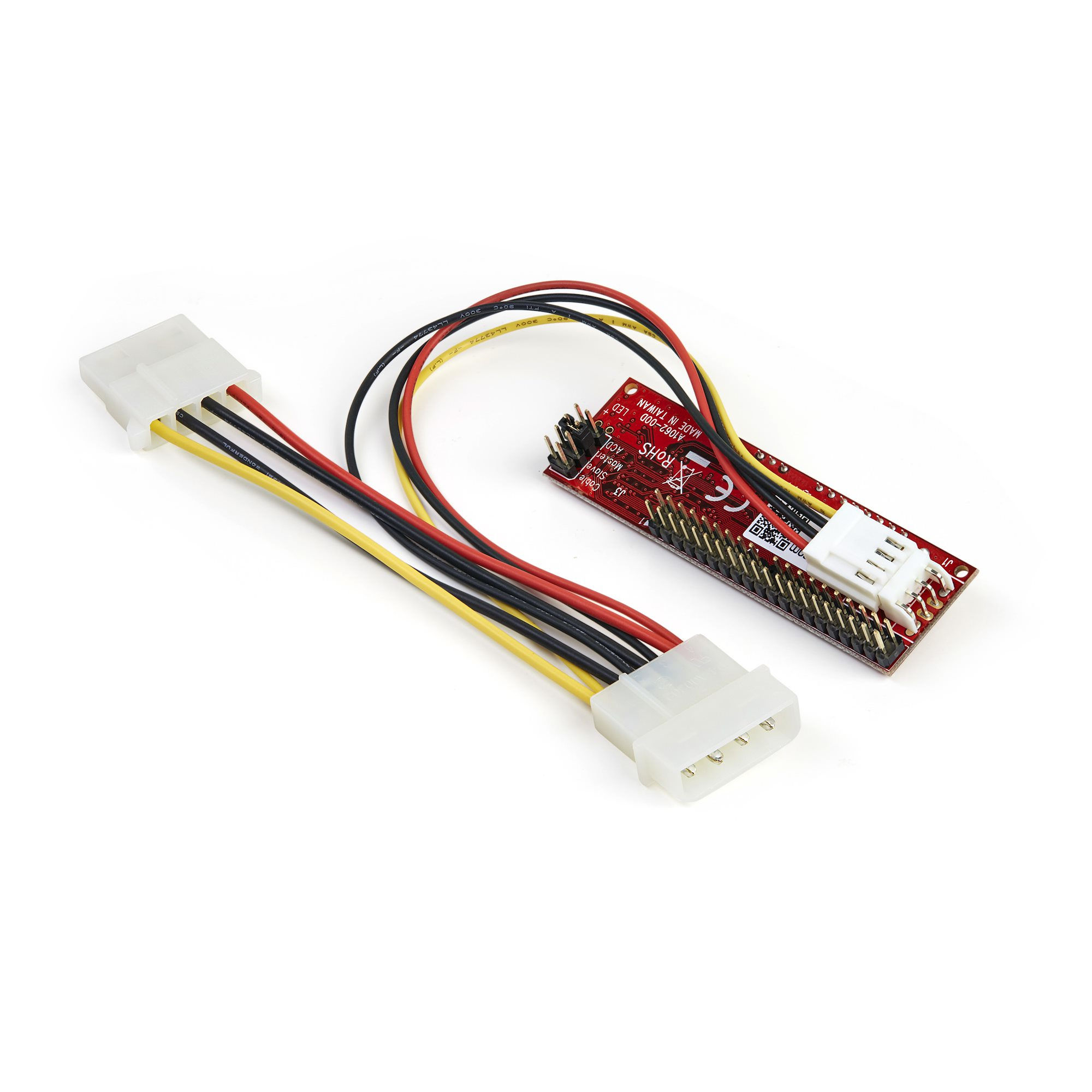

The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port. This is a cost-effective solution that allows you to add newer SATA drives (2.5", 3.5", or 5.25") or optical drives (Blu-ray, DVD, CD-ROM) to an existing legacy motherboard without the need for additional controller cards. The adapter features a Marvell 88SA8052 chipset and provides transfer rates up to 133MB/sec. It is a complete hardware solution that is OS independent and requires no software or drivers for installation. The package includes an LP4 Molex to SP4 power cable to ensure compatibility with older power supplies.
| Humidity | 15~90% RH |
|---|---|
| Interface | IDE (40 Pin, EIDE/PATA) |
| Chipset ID | Marvell - 88SA8052 |
| Drive Size | 2.5in, 3.5in, 5.25in |
| Connector A | 1 - IDE (40 Pin, EIDE/PATA) Female |
| Connector B | 1 - SATA Data & Power Combo (7+15 pin) Receptacle |
| Power Connector | 1 - SP4 (4 pin, Small Drive Power) Male |
| Operating Temperature | 5°C to 50°C (40°F to 122°F) |
| Maximum Data Transfer Rate | 133MB/sec |
| Warranty | 2 Year Warranty |
| Weight | 15 g |
| Dimensions | 75.5 mm x 20 mm x 23 mm |
Bridge the gap between newer SATA technology and legacy IDE motherboards. This adapter provides a simple way to upgrade storage while maintaining existing hardware infrastructure, supporting both hard drives and optical media.
Yes, this StarTech.com 40-Pin IDE PATA to SATA Adapter Converter (IDE2SAT2) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This StarTech.com 40-Pin IDE PATA to SATA Adapter Converter includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the IDE2SAT2.
