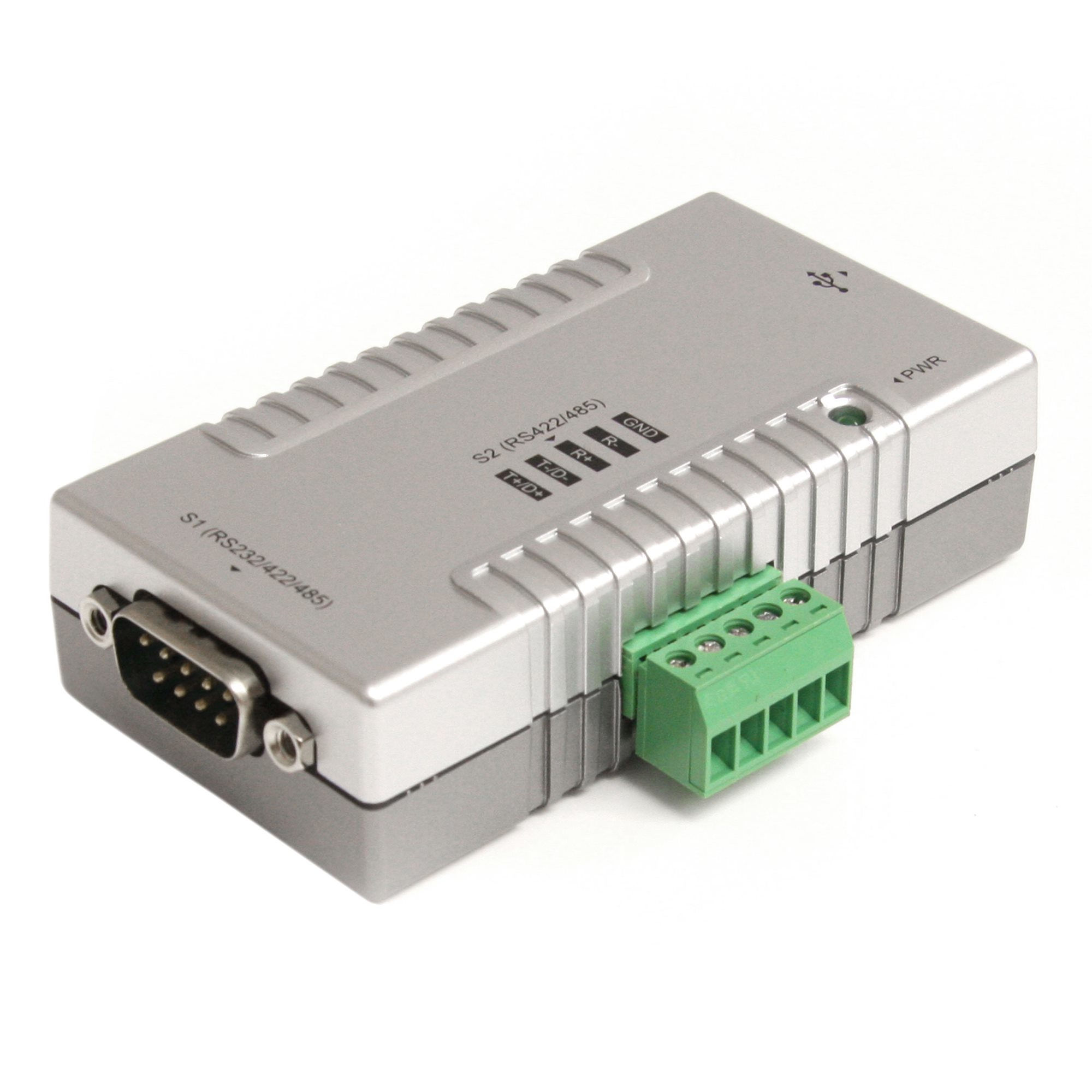

StarTech.com 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention
Brand: StarTech.com · SKU: ICUSB2324852 · MPN: ICUSB2324852 · Category: Components
StarTech.com 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention, USB Type-B, Serial, RS-232/422/485, Grey, Power, FTDI - FT2232H. StarTech.com 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention (part number ICUSB2324852) is an enterprise components product available from Server Tech Central. Key specifications include depth 82.3 mm, width 44.2 mm, height 23 mm, manual Yes, weight 300 g, chipset FTDI - FT2232H, internal No, baud rate 921.6 Kbit/s. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 82.3 mm |
|---|---|
| Width | 44.2 mm |
| Height | 23 mm |
| Manual | Yes |
| Weight | 300 g |
| Chipset | FTDI - FT2232H |
| Internal | No |
| Baud rate | 921.6 Kbit/s |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| Package depth | 208 mm |
| Package width | 144 mm |
| Host interface | USB Type-B |
| LED indicators | Power |
| Output voltage | 5 V |
| Package height | 40 mm |
| Package weight | 310 g |
| Product colour | Grey |
| Cables included | USB Type-A to USB Type-B |
| Drivers included | Yes |
| Output interface | Serial |
| Flow Control type | No, XON/XOFF |
| Quantity per pack | 1 pc(s) |
| Warranty | 3-Year Warranty |
| Weight | 300 g |
| Dimensions | 44.2 mm x 82.3 mm x 23 mm |
Product Description
Add RS232, RS422 and RS485 support to your laptop or desktop computer via USB The ICUSB2324852 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention lets you connect every type of serial device to your USB-enabled computer, whether it be for RS232, RS422, or RS485 communication. The adapter features a 9-pin (DB9) male and a 5-pin terminal block serial connector as well as dip-switch controls for easy port configuration with minimal software requirements. The adapter also supports using 2 ports simultaneously, including with mixed protocols; for example RS-232 on port 1, and RS-485 on port 2, or a number of other combinations. For a convenient, and clean installation in office or industrial settings, the RS232/RS422/RS485 USB Adapter is wall-mountable and fully powered via the host USB connection, providing power to the attached serial device without requiring an external power adapter. Backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage
Key Features
StarTech.com 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention. Host interface: USB Type-B, Output interface: Serial, Serial interface type: RS-232/422/485. Product colour: Grey, LED indicators: Power. Chipset: FTDI - FT2232H, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 128 B. Output voltage: 5 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows...
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention (ICUSB2324852) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ICUSB2324852.
