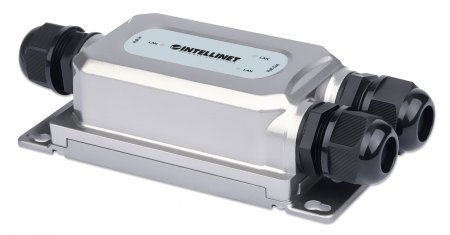

Intellinet 2-Port Outdoor Vandalproof Gigabit PoE++ Extender, Two 30 W Ports, Extends PoE up to 100 m (328 ft.), 60 W Power Budget, IEEE 802.3bt (4PPoE) Compliant, IP67 Waterproof, IK10-rated, Metal Housing
Brand: Intellinet · SKU: ICI-561648 · MPN: 2-Port Outdoor Vandalproof Gigabit PoE++ Extender, Two 30 W Ports, Extends PoE up to 100 m (328 ft.), 60 W Power Budget, IEEE 802.3bt (4PPoE) Compliant, IP67 Waterproof, IK10-rated, Metal Housing · Category: Components
Intellinet 2-Port Outdoor Vandalproof Gigabit PoE++ Extender, Two 30 W Ports, Extends PoE up to 100 m (328 ft.), 60 W Power Budget, IEEE 802.3bt (4PPoE) Compliant, IP67 Waterproof, IK10-rated, Metal Housing, Network repeater, Cat5e, 2048 entries, IP67, 10/100/1000Base-T(X), IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Specifications
| Type | Network repeater |
|---|---|
| Depth | 150 mm |
| Width | 73 mm |
| Height | 44 mm |
| Weight | 353 g |
| Certification | FCC Class A, CE, RoHS |
| Product colour | Grey |
| MAC address table | 2048 entries |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Cable types supported | Cat5e |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -40 - 80 °C |
| Ethernet LAN (RJ-45) ports | 3 |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| International Protection (IP) code | IP67 |
| Power over Ethernet (PoE) ports quantity | 2 |
| Warranty | 3-Year Warranty |
| Weight | 353 g |
| Dimensions | 73 mm x 150 mm x 44 mm |
Product Description
This PoE++ Extender doubles the range of two Gigabit Power over Ethernet connections — even in harsh outdoor conditions The Intellinet Network Solutions 2-Port Outdoor Vandalproof Gigabit PoE++ Extender adds up to 100 m (328 ft.) to the connection distance from a PoE source to one or two output devices via Cat5e or Cat6 cable. This PoE++ (4PPoE) extender does not need an additional power supply since it draws its power from the PoE input. Designed for Outdoor Use This PoE++ extender is the right power and data connector for its suitability to a wide variety of environments. Its weatherproof IP67 (waterproof and dustproof) rating, vast operating temperature range of -20 – 60°C (-4 – 140°F) and vandal-proof IK10 score make the Intellinet Network Solutions 2-Port Outdoor Vandalproof Gigabit Ultra PoE Extender able to withstand harsh conditions. Reduced Wiring Costs This Ultra PoE Extender helps avoid the expense of running AC power lines for a wireless access point, network camera, IP phone, or other compatible device. Simply connect the PoE Extender to the LAN switch port through existing Cat5e/6/6a cables to deliver DC power as well as transfer data. Power over Ethernet 802.3bt Compliant This Ultra PoE Extender supports the IEEE 802.3bt protocol over four pairs (4PPoE), which allows for a power input of 95 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to a connected IEEE 802.3at- or IEEE 802.3af-compliant device. The cable length on both ends can be up to 100 meters (328 ft.), bringing the total distance between PoE source and device to 200 m (656 ft.). Simple Installation This PoE Extender was designed to be as easy as possible to set up and use. All it takes to have it up and running is to connect its PoE In port to your PoE injector or PoE switch and to connect the PoE Out ports to the PoE devices you want to connect (e.g., a VoIP phone and a PoE network camera).
Key Features
Intellinet 2-Port Outdoor Vandalproof Gigabit PoE++ Extender, Two 30 W Ports, Extends PoE up to 100 m (328 ft.), 60 W Power Budget, IEEE 802.3bt (4PPoE) Compliant, IP67 Waterproof, IK10-rated, Metal Housing. Type: Network repeater, Cable types supported: Cat5e, MAC address table: 2048 entries. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Product colour: Grey, Certification: FCC Class A, CE, RoHS. Width: 73 mm, Depth: 150 mm, Height: 44 mm. Compliance certificates: CE, RoHS, Federal Communications Commission (FCC)
Technical Deployment Advisory
Target Personnel
Field Engineers
Infrastructure Fit
Server Fleet Uniformity
"As a genuine Intellinet component, the ICI-561648 ensures 100% compatibility for Server Fleet Uniformity. It is an essential part for Field Engineers tasked with hardware lifecycle maintenance."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Intellinet 2-Port Outdoor Vandalproof Gigabit PoE++ Extender, Two 30 W Ports, Extends PoE up to 100 m (328 ft.), 60 W Power Budget, IEEE 802.3bt (4PPoE) Compliant, IP67 Waterproof, IK10-rated, Metal Housing (ICI-561648) is 100% genuine Intellinet hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Intellinet 2-Port Outdoor Vandalproof Gigabit PoE++ Extender, Two 30 W Ports, Extends PoE up to 100 m (328 ft.), 60 W Power Budget, IEEE 802.3bt (4PPoE) Compliant, IP67 Waterproof, IK10-rated, Metal Housing includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Intellinet 2-Port Outdoor Vandalproof Gigabit PoE++ Extender, Two 30 W Ports, Extends PoE up to 100 m (328 ft.), 60 W Power Budget, IEEE 802.3bt (4PPoE) Compliant, IP67 Waterproof, IK10-rated, Metal Housing compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ICI-561648.
