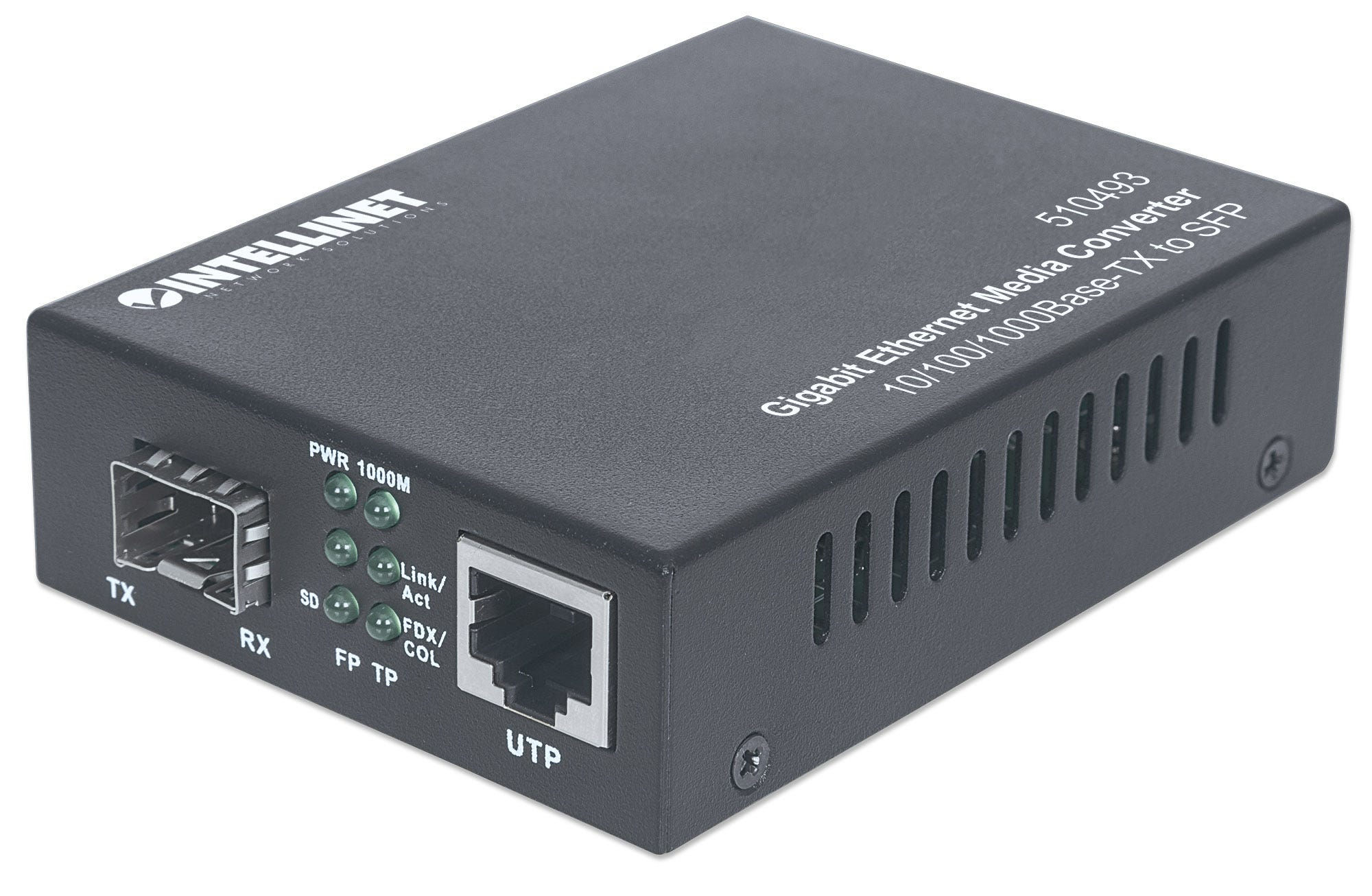

Intellinet Gigabit Ethernet to SFP Media Converter, 10/100/1000Base-Tx to SFP slot, empty
Brand: Intellinet · SKU: ICI-510493 · MPN: Gigabit Ethernet to SFP Media Converter, 10/100/1000Base-Tx to SFP slot, empty · Category: Networking
Intellinet Gigabit Ethernet to SFP Media Converter, 10/100/1000Base-Tx to SFP slot, empty, 1000 Mbit/s, 10Base-T, 100Base-TX, 1000Base-TX, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, Fast Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s, 1000 Mbit/s
Specifications
| Depth | 96 mm |
|---|---|
| Width | 70 mm |
| Height | 26 mm |
| Weight | 170 g |
| Internal | No |
| User guide | Yes |
| Certification | FCC Class A, CE |
| Duplex system | Full |
| Input current | 1.2 A |
| Input voltage | 12 V |
| Auto MDI/MDI-X | Yes |
| LED indicators | Link, Power |
| Product colour | Black |
| Housing material | Metal |
| Data transfer rate | 1000 Mbit/s |
| Fiber ports quantity | 1 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Cable types supported | Cat5e, Fiber |
| Fiber optic connector | SFP |
| External power adapter | Yes |
| Connectivity technology | Wired |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Power consumption (max) | 5 W |
| Warranty | 3-Year Warranty |
| Weight | 170 g |
| Dimensions | 70 mm x 96 mm x 26 mm |
Product Description
The Intellinet Network Solutions Gigabit Ethernet to SFP Media Converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums. Expands the Size of an Existing Network Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers. Enhances the Distance between Networking Devices Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device. Cabling Flexibility Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.
Key Features
Intellinet Gigabit Ethernet to SFP Media Converter, 10/100/1000Base-Tx to SFP slot, empty. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, 1000Base-TX, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z. Maximum transfer distance: 100 m. LED indicators: Link, Power, Product colour: Black, Housing material: Metal. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 12 V, Input current: 1.2 A, Power consumption (max): 5 W
Technical Deployment Advisory
Target Personnel
Network Fabric Engineers
Infrastructure Fit
Secure Campus Backbones
"Scaling a Secure Campus Backbones requires hardware that ensures packet integrity; the Intellinet ICI-510493 is design-optimized for this specific role in the network stack."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Intellinet Gigabit Ethernet to SFP Media Converter, 10/100/1000Base-Tx to SFP slot, empty (ICI-510493) is 100% genuine Intellinet hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Intellinet Gigabit Ethernet to SFP Media Converter, 10/100/1000Base-Tx to SFP slot, empty includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Intellinet Gigabit Ethernet to SFP Media Converter, 10/100/1000Base-Tx to SFP slot, empty compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ICI-510493.
