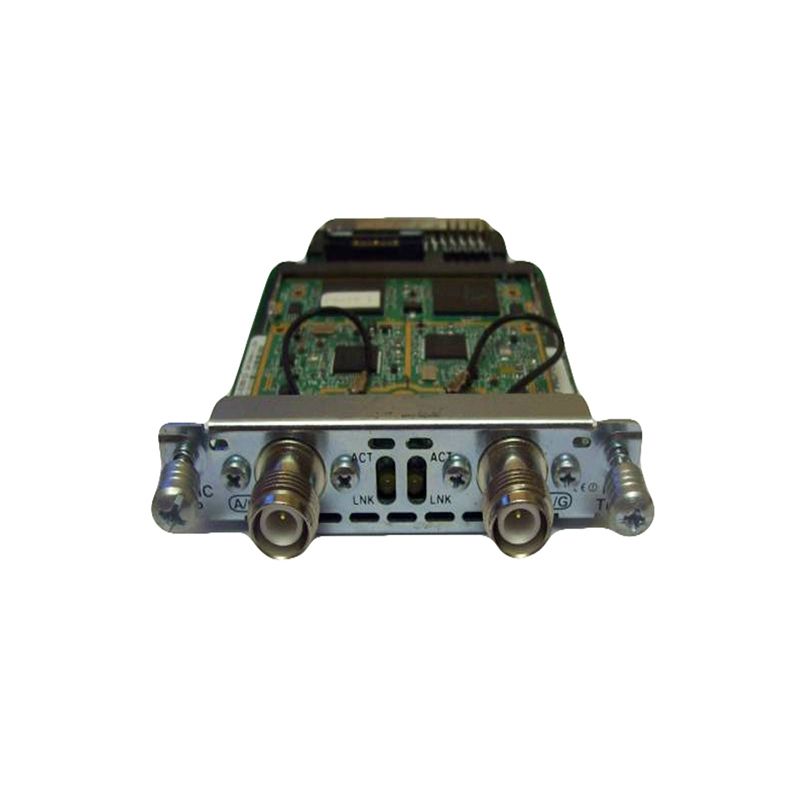

HWIC-AP-AG-B, Cisco HWIC, 2x2.4/5GHz Radios/802.11a/b/g/FCC

Brand: Cisco · SKU: HWIC-AP-AG-B · MPN: HWIC-AP-AG-B · Category: Components

HWIC-AP-AG-B, Cisco HWIC, 2x2.4/5GHz Radios/802.11a/b/g/FCC
$386.40
In Stock • 10 units

AP HWIC, 2 radios( 2.4/5Ghz Radios 802.11 a/b/g) FCC Cisco Router High-Speed WAN Interface card

View Components Products

Specifications

ModelHWIC-AP-AG-B
SSIDs6
Weight0.68 kg
DescriptionCisco 802.11a/b/g Access Point High Speed WAN Interface Card for the Americas (FCC configuration)
Form FactorSingle-wide HWIC form factor
Range NotesIndividual observed performance may differ, since ranges and actual throughput vary based on environmental factors. Measurements based on 2.2 dBi antennas.
IEEE ProtocolsIEEE 802.11a (HWIC-AP-AG-x); IEEE 802.11b/g (HWIC-AP-AG-x), (HWIC-AP-AG-x); IEEE 802.11e QoS*; IEEE 802.11i Wireless Security*; IEEE 802.1X Security; IEEE 802.1p CoS for traffic prioritization; IEEE 802.1Q VLAN (*available via future software upgrade)
Wireless VLANs6
Data Rates Supported802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 802.11b: 1, 2, 5.5, 11 Mbps; 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
Dimensions (W x D x H)3.09 in x 4.90 in x 0.76 in
Typical Range @ 1 MbpsOutdoor: 2000 ft (610 m); Indoor: 300 ft (90 m)
Typical Range @ 11 MbpsOutdoor: 700 ft (213 m); Indoor: 150 ft (45 m)
Typical Range @ 54 MbpsOutdoor: 300 ft (90 m); Indoor: 80 ft (24 m)
Non-overlapping Channels802.11a: up to 12; 802.11b/g: 3
Supported Router PlatformsCisco 1800 (Modular), Cisco 2800 and Cisco 3800 Integrated Services Routers Series: Cisco 1841, 2801, 2811, 2821, 2851, 3825, 3845
Wireless Modulation (802.11a)DBPSK – 1 Mbps; DQPSK – 2 Mbps; CCK – 5.5, 11 Mbps; BPSK – 6, 9 Mbps; QPSK – 12, 18 Mbps; 16-QAM – 24, 36 Mbps; 64-QAM – 48, 54 Mbps
Wireless Modulation (802.11b/g)BPSK – 6, 9 Mbps; QPSK – 12, 18 Mbps; 16-QAM – 24, 36 Mbps; 64-QAM – 48, 54 Mbps
Module Physical Weight (reference)163.29 g (0.36 lb), including HWIC module and swivel dipole antennas
Frequency Bands and Operating ChannelsAmericas (FCC): 2.412–2.462 GHz; 11 channels. 5.15–5.35 GHz, 5.725–5.825 GHz; 12 channels. ETSI: 2.412–2.472 GHz; 13 channels. Japan (TELEC): 2.412–2.472 GHz; 13 channels OFDM. 2.412–2.472 GHz; 13 channels CCK. 5.15–5.25 GHz; 4 channels.
Maximum Average Conducted Power (802.11a)16 dBm (40 mW)
Receive Sensitivity (802.11b, @ FER < 10%)-94 dBm @ 1 Mbps; -93 dBm @ 2 Mbps; -92 dBm @ 5.5 Mbps; -90 dBm @ 11 Mbps
Receive Sensitivity (802.11g, @ FER < 10%)-92 dBm @ 6 Mbps; -90 dBm @ 9 Mbps; -89 dBm @ 12 Mbps; -87 dBm @ 18 Mbps; -85 dBm @ 24 Mbps; -81 dBm @ 36 Mbps; -76 dBm @ 48 Mbps; -73 dBm @ 54 Mbps
Maximum Average Conducted Power (802.11b/g)802.11b HWIC-AP-AG-x: 20 dBm (100 mW); HWIC-AP-G-x: 19 dBm (80 mW); peak conducted power for all HWICs (FCC): over 200 mW; 802.11g: 17 dBm (50 mW). Maximum power setting varies by channel and country regulations.
Receive Sensitivity (802.11a, 5150–5250 MHz, @ FER < 10%)-92 dBm @ 6 Mbps; -90 dBm @ 9 Mbps; -90 dBm @ 12 Mbps; -89 dBm @ 18 Mbps; -84 dBm @ 24 Mbps; -80 dBm @ 36 Mbps; -76 dBm @ 48 Mbps; -73 dBm @ 54 Mbps
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.
