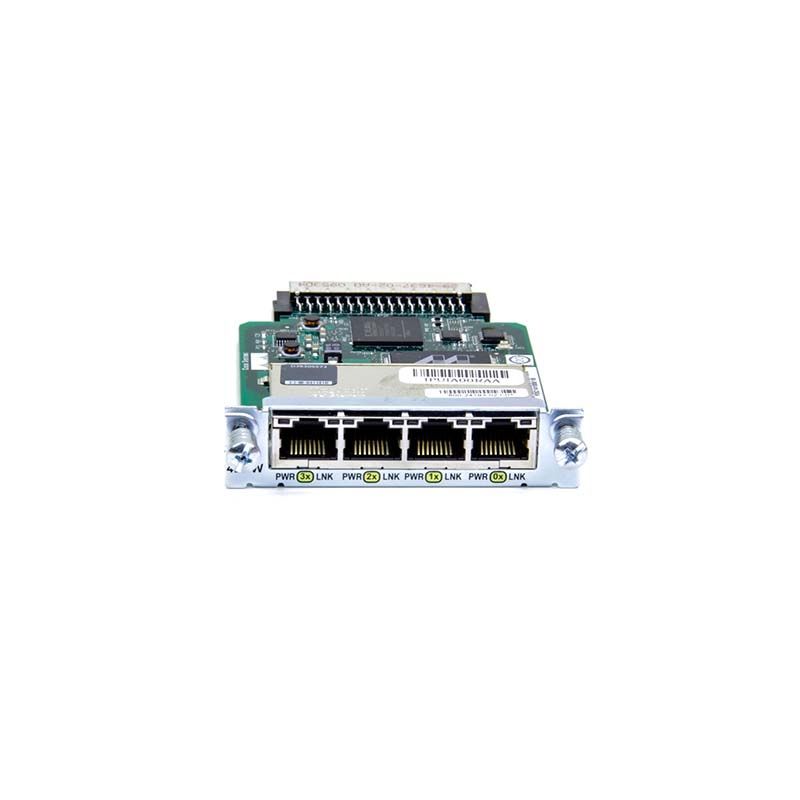

HWIC-4ESW, Cisco HWIC-4ESW, 4x10/100Mbps, Router Module, High-Speed WAN
Brand: Cisco · SKU: HWIC-4ESW · MPN: HWIC-4ESW · Category: Networking
Request for Quote
In Stock • 10 units
4-port single-wide 10/100BASE-T Ethernet switch HWIC
Specifications
| Model | HWIC-4ESW |
|---|---|
| Weight | 0.68 kg |
| Indicators | Link status LED: one LED per port indicating link status; inline power LED: one LED per port indicating inline power status |
| Description | Four port 10/100 Ethernet switch interface card Cisco Router High-Speed WAN Interface card |
| Form Factor | HWIC-4ESW = Single-wide HWIC form factor |
| RFC Support | RFC 2284, PPP Extensible Authentication Protocol (EAP) |
| MIBs (Part 1) | RFC 1213; IF MIB; RFC 2037 ENTITY MIB; CISCO-CDP-MIB; CISCO-IMAGE-MIB; CISCO-FLASH-MIB; OLD-CISCO-CHASSIS-MIB; CISCO-VTP-MIB; CISCO-HSRP-MIB; OLD-CISCO-TS-MIB; CISCO-ENTITY-ASSET-MIB; CISCO-ENTITY-FRU-CONTROL-MIB; BRIDGE MIB (RFC 1493) |
| MIBs (Part 2) | CISCO-VLAN-MEMBERSHIP-MIB; CISCO-VLAN-IFINDEX-RELATIONSHIP-MIB; RMON1-MIB; PIM-MIB; CISCO-STP-EXTENSIONS-MIB; OSPF MIB (RFC 1253); IPMROUTE-MIB; CISCO-MEMORY-POOL-MIB; ETHER-LIKE-MIB (RFC 1643); CISCO-ENTITY-FRU-CONTROL-MIB.my; CISCO-RTTMON-MIB; CISCO-PROCESS-MIB; CISCO-COPS-CLIENT-MIB |
| Module Weight | HWIC-4ESW = 79 grams (0.17 lb) |
| IEEE Protocols | Ethernet: IEEE 802.3, 10BASE-T; Fast Ethernet: IEEE 802.3u, 100BASE-TX; IEEE 802.1D Spanning Tree Protocol; IEEE 802.1p CoS for traffic prioritization; IEEE 802.1Q VLAN; IEEE 802.1X security; IEEE 802.3x full duplex; IEEE 802.3af Power over Ethernet standard |
| DC Power Support | DC system power input available on Cisco 2811/2911, Cisco 2821/2921, Cisco 2851/2951, Cisco 3825/3925, and Cisco 3845/3945 routers; PoE option not available with DC system power input |
| Software Support | Minimum Cisco IOS Software Release 12.3(8)T for Cisco 1841, Cisco 2800 Series, and Cisco 3800 Series routers: IP Base image; minimum Cisco IOS Software Release 15.0(1)M for Cisco 1900 Series, Cisco 2900 Series, and Cisco 3900 Series routers: IP Base License of the Universal image |
| Operating Altitude | Moderate 1.5 °C per 1000 ft |
| Operating Humidity | 10 to 85% noncondensing operating; 5 to 95% noncondensing, nonoperating |
| Target Applications | Data, voice, and video |
| Internal Power Supply | Optional PoE system power supply available for all Cisco 2800 and Cisco 3800 Series routers |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Connectors and Cabling | 10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling; 100BASE-TX ports: RJ-45 connectors, two-pair Category 5 UTP cabling |
| Dimensions (W x D x H) | HWIC-4ESW = 3.08 x 4.74 x 0.76 in. |
| Manageability (Part 1) | SNMP and Telnet interface support for in-band management; CLI management console for out-of-band management; embedded Remote Monitoring (RMON) software agent supporting four RMON groups (history, statistics, alarms, and events) for traffic management, monitoring, and analysis; Switched Port Analyzer (SPAN) port can mirror traffic from one or many ports to another port for monitoring all nine RMON groups with an RMON probe or network analyzer |
| Manageability (Part 2) | Trivial File Transfer Protocol (TFTP) support for centralized software upgrades; Network Timing Protocol (NTP) provides accurate and consistent time stamp to all switches within the intranet; two LEDs per port for link and inline power status; crash information support to generate crash file for troubleshooting; show-interface capabilities provide configuration information for any interface; Response Time Monitoring (RTTMON) MIB to monitor network performance between the HWIC switch and a remote device |
| Nonoperating Temperature | -4 to 149 °F (-20 to 65 °C) |
| Supported Router Platforms | Cisco 1800 (modular), Cisco 2800, and Cisco 3800 Series Integrated Services Routers: Cisco 1841 (supports HWIC-4ESW only; no PoE support), Cisco 2801, Cisco 2811, Cisco 2821, Cisco 2851, Cisco 3825, Cisco 3845; Cisco 1941, Cisco 2901, Cisco 2911, Cisco 2921, Cisco 2951, Cisco 3925, Cisco 3945 |
| External Redundant Power Supply | External RPS2300 optional for Cisco 2800 Series and Cisco 2900 Series routers |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this HWIC-4ESW, Cisco HWIC-4ESW, 4x10/100Mbps, Router Module, High-Speed WAN (HWIC-4ESW) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This HWIC-4ESW, Cisco HWIC-4ESW, 4x10/100Mbps, Router Module, High-Speed WAN includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the HWIC-4ESW, Cisco HWIC-4ESW, 4x10/100Mbps, Router Module, High-Speed WAN compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the HWIC-4ESW.
