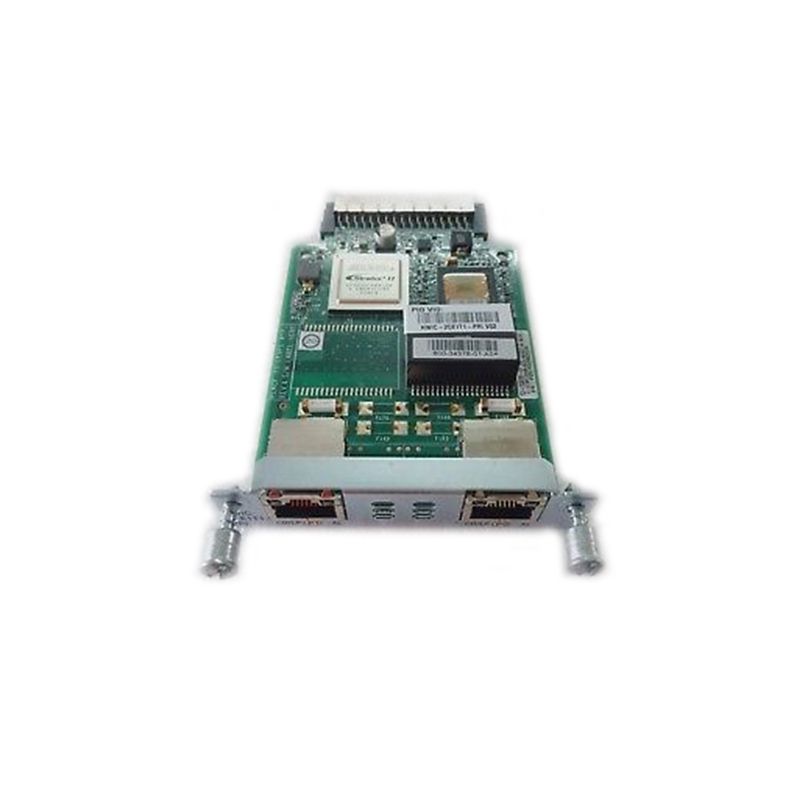

HWIC-2CE1T1-PRI, Cisco HWIC-2CE1T1-PRI Router High-Speed WAN Interface Card, 2xT1/E1 Ports, Channelized, Data Only
Brand: Cisco · SKU: HWIC-2CE1T1-PRI · MPN: HWIC-2CE1T1-PRI · Category: Networking
2 port channelized T1/E1, and PRI HWIC (data only) Cisco Router High-Speed WAN Interface card
Specifications
| Model | HWIC-2CE1T1-PRI |
|---|---|
| Ports | 1, 2, or 8 T1/E1 ports on RJ-48C connectors |
| Weight | 0.55 kg |
| Description | 2-port channelized T1/E1 and PRI HWIC (data only) high-speed WAN interface card for Cisco routers |
| Line Coding | E1: HDB3; T1: AMI and B8ZS |
| LEDs per Port | CD/LP: Off = no carrier detect; Green On = carrier detect; Yellow On = port in loopback mode. AL: Off = no alarms; Yellow On = port in alarm mode |
| Output Levels | E1: short-haul/long-haul; T1 LBO: 0, -7.5, or -15 dB |
| Alarm Detection | Yellow Alarm: receive/send from/to network; Blue Alarm: receive AIS from network; Red Alarm: loss of network signal |
| Framing Formats | E1: CRC4; T1: SF and ESF |
| Relative Humidity | 5% to 95% noncondensing |
| Remote Management | Cisco CNS 2100 Series Intelligence Engine (IE2100); CiscoWorks |
| Signaling Debugging | ISDN Q.921 and Q.931 decode; all other applicable Cisco IOS Software debugs |
| Relevant MIB Support | T1 MIB (RFC1406-MIB); Cisco Integrated DSU/CSU MIB (CISCO-ICSUDSU-MIB) |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Dimensions (H x W x D) | 0.75 x 3.08 x 4.74 in (1.91 x 7.82 x 12.04 cm) |
| Line Bit Rate (per Port) | E1: 2.048 Mbps; T1: 1.544 Mbps |
| Nonoperating Temperature | -40 to 70 °C (-40 to 158 °F) |
| CSU Loopback Modes for T1 CSU | DTE loopback; network loopback; payload loopback |
| LEDs per Module (NM-8CE1T1-PRI) | EN: Off = card not available; On = card enabled |
| Diagnostic Loopback Support (E1) | E1 loopback modes: controller local loopback; interface local loopback |
| Diagnostic Loopback Support (T1) | T1 loopback modes: interface local loopback; interface remote loopback; controller local loopback; controller remote loopback |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this HWIC-2CE1T1-PRI, Cisco HWIC-2CE1T1-PRI Router High-Speed WAN Interface Card, 2xT1/E1 Ports, Channelized, Data Only (HWIC-2CE1T1-PRI) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This HWIC-2CE1T1-PRI, Cisco HWIC-2CE1T1-PRI Router High-Speed WAN Interface Card, 2xT1/E1 Ports, Channelized, Data Only includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the HWIC-2CE1T1-PRI, Cisco HWIC-2CE1T1-PRI Router High-Speed WAN Interface Card, 2xT1/E1 Ports, Channelized, Data Only compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the HWIC-2CE1T1-PRI.
