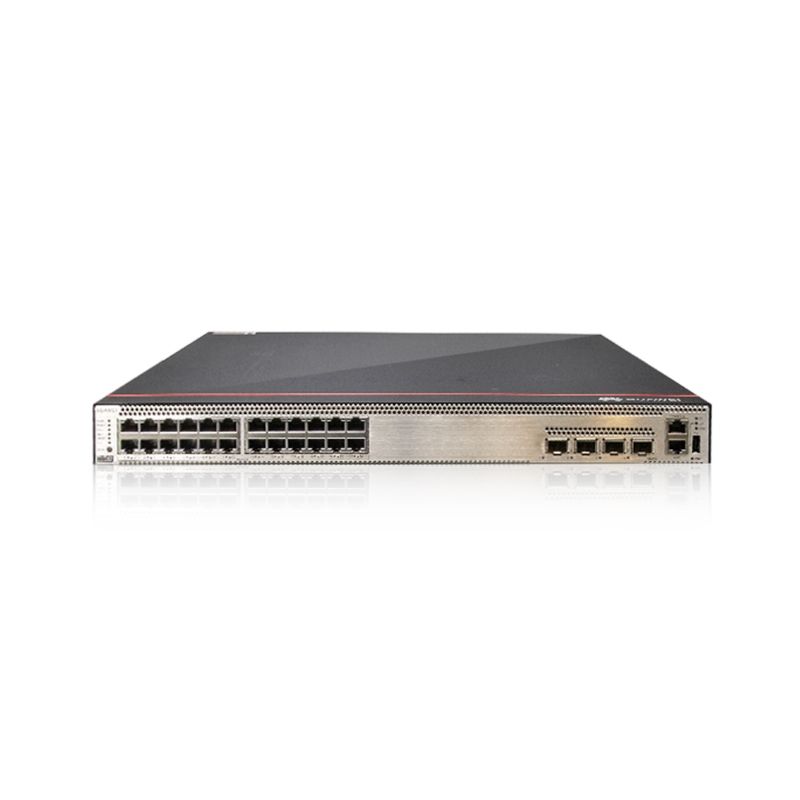

S5736-S24UM4XC, Huawei CloudEngine S5736-S Series Switch, 24xMulti-GE Base-T/4x10GE SFP+
SKU: HW:S5736-S24UM4XC · MPN: HW:S5736-S24UM4XC · Category: Networking
Huawei CloudEngine S5736-S Series Multi-GE Switches S5736-S24UM4XC - 24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 10 GE SFP+
Specifications
| PoE | Supported |
|---|---|
| RTC | Supported |
| USB | Supported |
| Item | Specification |
| Memory | 2 GB |
| RPS input | Not supported |
| MTBF [year] | 59.44 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Console port | RJ45 |
| Flash memory | 1 GB in total. To view the available flash memory size, run the display version command. |
| Certification | EMC certification Safety certification Manufacturing certification |
| Types of fans | Pluggable |
| Airflow direction | Air intake from left,front and right, air exhaustion from behind |
| Power supply mode | Pluggable power supply |
| Chassis height [U] | 1 U |
| Eth Management port | RJ45 |
| Number of card slots | 1 |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Number of power slots | 2 |
| Number of fans modules | 2 |
| Redundant power supply | 1+1 Pluggable AC and DC power modules can be used together in the same switch. |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: –38.4 V DC to –72 V DC |
| Rated input voltage [V] | AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DC |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this S5736-S24UM4XC, Huawei CloudEngine S5736-S Series Switch, 24xMulti-GE Base-T/4x10GE SFP+ (HW:S5736-S24UM4XC) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This S5736-S24UM4XC, Huawei CloudEngine S5736-S Series Switch, 24xMulti-GE Base-T/4x10GE SFP+ includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the S5736-S24UM4XC, Huawei CloudEngine S5736-S Series Switch, 24xMulti-GE Base-T/4x10GE SFP+ compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the HW:S5736-S24UM4XC.
