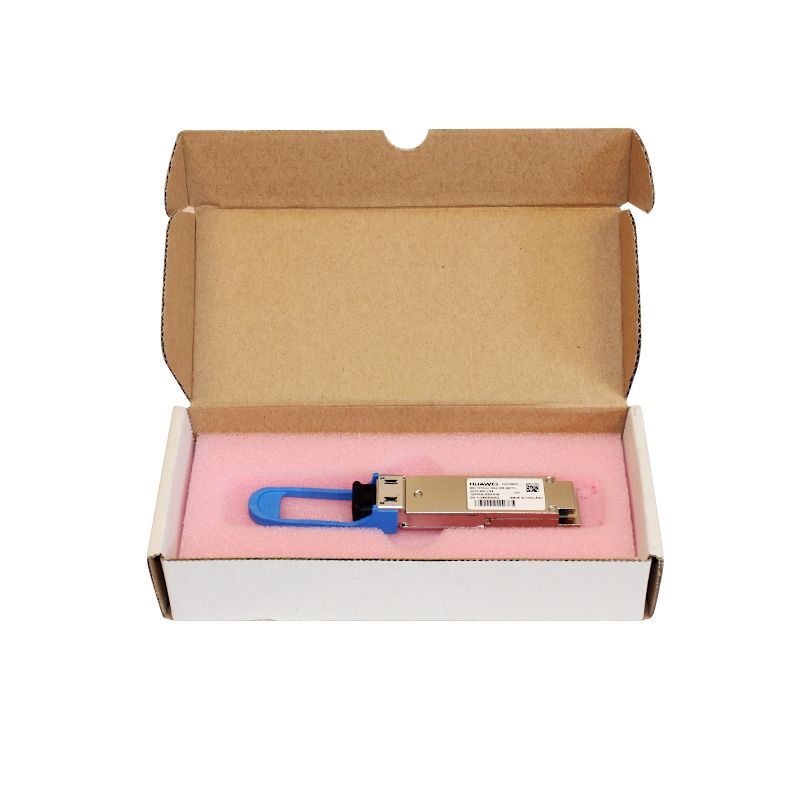

QSFP-40G-LR4, Huawei QSFP+ Optical Module, 40GBASE-LR4/Single Mode/10km LC
Brand: Huawei · SKU: HW:QSFP-40G-LR4 · MPN: HW:QSFP-40G-LR4 · Category: Networking
40GBASE-LR4 optical module -QSFP + -40G-single mode module (1310 nm, 10km, LC)
Specifications
| Model | HW:QSFP-40G-LR4 |
|---|---|
| Weight | 0.2 kg |
| Data Rate | 40Gbps |
| Interface | QSFP+ |
| Compliance | MSA, RoHS, IEC |
| Part Number | 02310MHS |
| Connector Type | LC |
| Overload Power | 3.3 dBm |
| Version Support | Supported in V100R001C00 and later versions |
| Extinction Ratio | ≥ 3.5 dB |
| Center Wavelength | 1271 nm, 1291 nm, 1311 nm, 1331 nm |
| Transmission Speed | 40GE |
| Fiber End-face Type | PC or UPC |
| Standards Compliance | 40GBASE-LR4 |
| Operating Temperature | 0°C to 70°C |
| Transceiver Form Factor | QSFP+ |
| Applicable Cable and Max. Transmission Distance | Single-mode fiber (G.652) 9 μm: 10 km |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this QSFP-40G-LR4, Huawei QSFP+ Optical Module, 40GBASE-LR4/Single Mode/10km LC (HW:QSFP-40G-LR4) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This QSFP-40G-LR4, Huawei QSFP+ Optical Module, 40GBASE-LR4/Single Mode/10km LC includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the QSFP-40G-LR4, Huawei QSFP+ Optical Module, 40GBASE-LR4/Single Mode/10km LC compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the HW:QSFP-40G-LR4.
