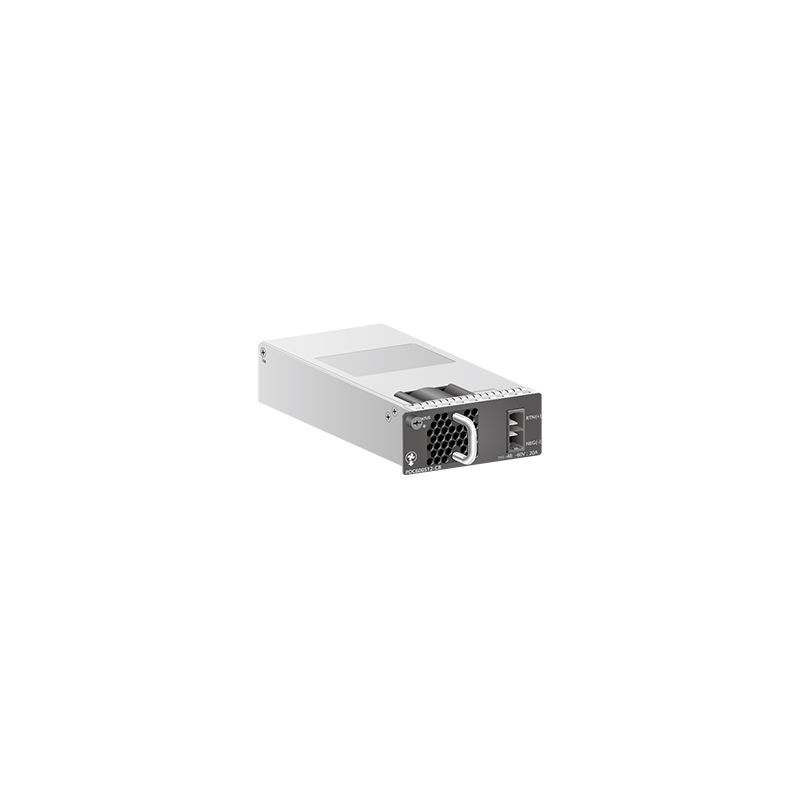

PDC600S12-CF, Huawei Power Module, 600W/Front to Back/Panel Intake
SKU: HW:PDC600S12-CF · MPN: HW:PDC600S12-CF · Category: Components
600W DC Power Module(Front to Back,Power panel side intake)
Specifications
| MTBF | 2,000,000 hours |
|---|---|
| Type | DC Power Module |
| Cooling | Forced air cooling |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | 3 years |
| Dimension | 100mm x 60mm x 40mm |
| Compliance | CE, RoHS |
| Efficiency | 94% typical |
| Application | Telecommunication, Data Center, Industrial Control |
| Power Rating | 600W |
| Product Name | PDC600S12-CF |
| Product Type | DC Power Module |
| Airflow Design | Power panel side intake |
| Connector Type | Terminal block |
| Cooling Method | Front to Back |
| Output Voltage | 12V DC |
| Safety Standard | IEC/EN60950-1 |
| Input Voltage Range | 36V - 75V DC |
| Protection Features | Over Voltage, Over Current, Over Temperature |
| Storage Temperature | -40??C to 125??C |
| Operating Temperature | -40??C to 85??C |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this PDC600S12-CF, Huawei Power Module, 600W/Front to Back/Panel Intake (HW:PDC600S12-CF) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This PDC600S12-CF, Huawei Power Module, 600W/Front to Back/Panel Intake includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the PDC600S12-CF, Huawei Power Module, 600W/Front to Back/Panel Intake compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the HW:PDC600S12-CF.
