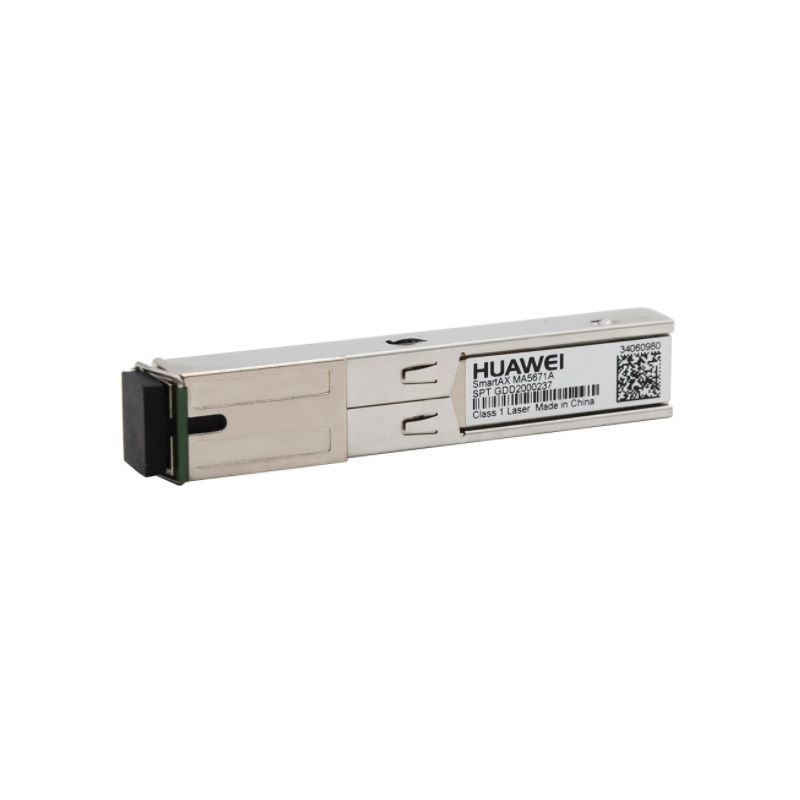

MA5671A, Huawei MA5671 Series GPON ONU, SFP, 2.488G/1.244G, SC/APC, 20km
SKU: HW:MA5671A · MPN: HW:MA5671A · Category: Networking
GPON ONU equipment-SFP-1490nm(rx)/1310nm(tx)-2.488G(rx)/1.244G(TX)-0.5dBm-5dBm--27dBm-SC/APC-20km-Air ONU--40~85degC
Specifications
| NNI | GPON |
|---|---|
| UNI | / |
| GPON Port | Port type: SC/APC Standard compliance: ITU-T G.984, Class B+ Maximum transmission distance: 20 km Transmission rate: RX: 2.488 Gbit/s; TX: 1.244 Gbit/s Optical receiver sensitivity: –27 dBm Overload optical power: –8 dBm |
| Operating Humidity | 5–95% RH (non-condensing) |
| System Power Supply | 3.3 V |
| Operating Temperature | –40°C to +85°C |
| Dimensions (H x W x D) | 14.1 x 12.5 x 72 mm |
| Maximum Power Consumption | ≤ 2 W |
| Weight (Without Power Adapter ） | Approximately 19 g |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MA5671A, Huawei MA5671 Series GPON ONU, SFP, 2.488G/1.244G, SC/APC, 20km (HW:MA5671A) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MA5671A, Huawei MA5671 Series GPON ONU, SFP, 2.488G/1.244G, SC/APC, 20km includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MA5671A, Huawei MA5671 Series GPON ONU, SFP, 2.488G/1.244G, SC/APC, 20km compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the HW:MA5671A.
