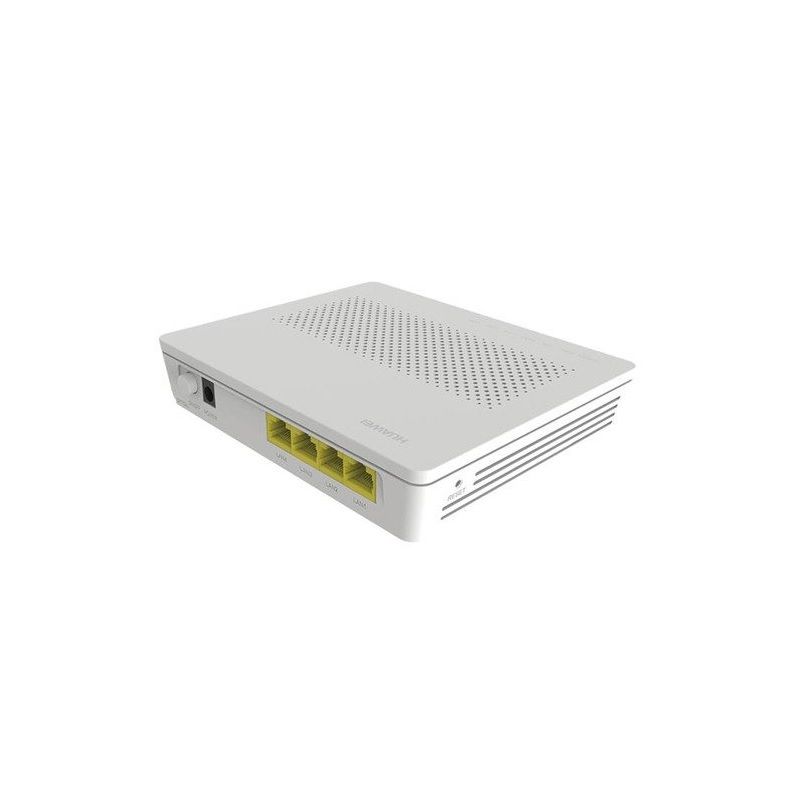

HG8540M, Huawei EchoLife Series GPON Terminal, SC/UPC, CN Power Supply
SKU: HW:HG8540M · MPN: HW:HG8540M · Category: Components
EchoLife HG8540M-GPON terminal-SC/UPC-Chinese power supply
Specifications
| GPON | Class: B+ Operating wavelength: DS 1490 nm, US 1310 nm The sensitivity of the receiver: -27 dBm |
|---|---|
| IPv6 | IPv6/IPv4 dual stack and DS-Lite |
| LEDs | POWER/PON/LOST/LAN |
| VLAN | VLAN filtering. Transparent VLAN transmission |
| Ethernet | 1 GPON port (SC/UPC) 1 port 10/100/1000MbE (RJ45) 3 ports 10/100MbE (RJ45) |
| Security | Filtering of MAC addresses |
| USB port | None |
| Multicast | IGMP snooping: v1/v2/v3. IGMP Proxy. Dynamically controlled multicast |
| Dimensions | 30 x 156 x 125 mm |
| VoIP ports | None |
| Power input | 100 - 240 V AC, 50 - 60 Hz |
| PON standard | GPON |
| Connection type | GPON (SC/UPC) |
| Number of LAN ports | 1x 10/100/1000BaseTX (RJ45), 3x 10/100BaseTX (RJ45) |
| System power supply | from 11 to 14VDC. 0,5А |
| Permissible air humidity | 5%-95% RH non-condensing |
| Static power consumption | 6W |
| Maximum power consumption | 9,2W |
| Wireless network standards | None |
| Permissible operating temperature | 0 to 40 degrees C |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this HG8540M, Huawei EchoLife Series GPON Terminal, SC/UPC, CN Power Supply (HW:HG8540M) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This HG8540M, Huawei EchoLife Series GPON Terminal, SC/UPC, CN Power Supply includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the HG8540M, Huawei EchoLife Series GPON Terminal, SC/UPC, CN Power Supply compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the HW:HG8540M.
