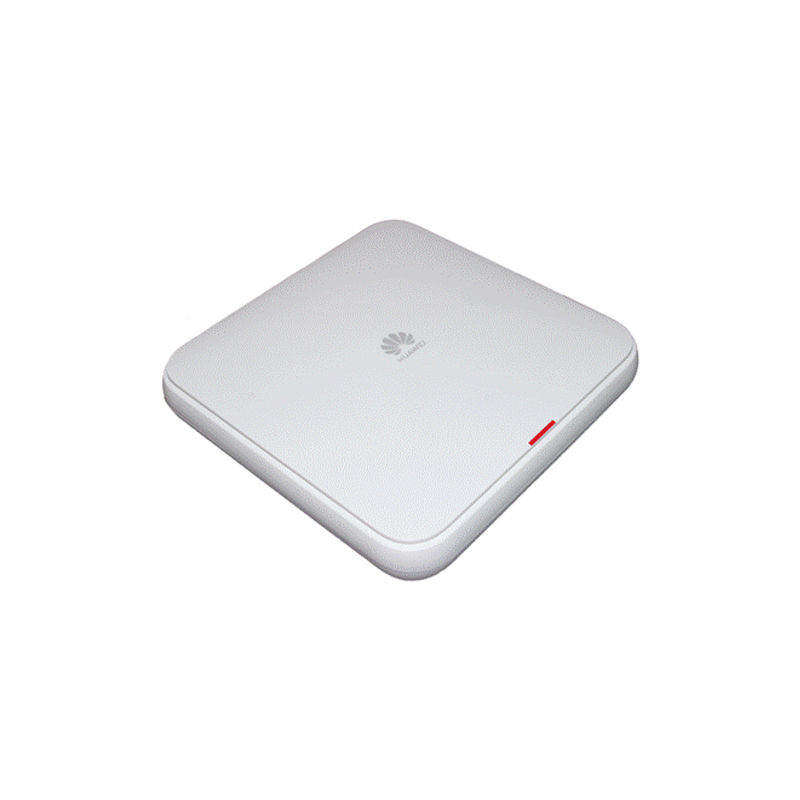

AirEngine 5760-10, Huawei AirEngine Series Access Point, 2.4G 2x2 + 5G 2x2, 11ax, Built-in Antenna

SKU: Huawei-AirEngine-5760-10 · MPN: Huawei-AirEngine-5760-10 · Category: Networking

AirEngine 5760-10, Huawei AirEngine Series Access Point, 2.4G 2x2 + 5G 2x2, 11ax, Built-in Antenna
$386.40
In Stock • 10 units

Huawei AireEngine 5760-10 mainframe (11ax, indoor, 2.4G 22 + 5G 22 dual bands, built-in antenna, GE, USB, BLE)

View Wireless APs Products

Specifications

EMFCENELEC EN 62311 CENELEC EN 50385 OET65 RSS-102 FCC Part1&2 FCC KDB Series
RoHSDirective 2002/95/EC & 2011/65/EU
WEEEDirective 2002/96/EC & 2012/19/EU
ReachRegulation 1907/2006/EC
Weight1.05 kg
Altitude– 60 m to +5000 m
Power input• DC: 12 V ± 10% • PoE power supply: In compliance with 802.3at
Antenna gain2.4G: 3.5 dBi 5G: 5 dBi NOTE 1. The gains above are the single-antenna peak gains. 2. The equivalent antenna gain after all 2.4 GHz or 5 GHz antennas are combined is 1 dBi in 2.4 GHz or 2 dBi in 5 GHz.
Antenna typeBuilt-in adaptive array antennas (smart antennas)
EMC standardsEN 301 489-1 EN 301 489-17 ETSI EN 60601-1-2 FCC Part 15 ICES-003 YD/T 1312.2-2004 ITU k.20 GB 9254 GB 17625.1 AS/NZS CISPR22 EN 55022 EN 55024 CISPR 22 CISPR 24 IEC61000-4-6 IEC61000-4-2
LED indicatorIndicates the power-on, startup, running, alarm, and fault states of the system.
IEEE standardsIEEE 802.11a/b/g IEEE 802.11n IEEE 802.11ac IEEE 802.11ax IEEE 802.11h IEEE 802.11d IEEE 802.11e IEEE 802.11k IEEE 802.11u IEEE 802.11v IEEE 802.11w IEEE 802.11r
Interface type1 x 10/100/1000M self-adaptive Ethernet interface (RJ45 x 2) 1 x USB interface
Power increment1 dBm
Radio standardsETSI EN 300 328 ETSI EN 301 893 RSS-210 AS/NZS 4268
Safety standardsUL 62368-1 EN 62368-1 IEC 62368-1 GB 4943 EN 60950-1 UL 60950-1 CAN/CSA 22.2 No.60950-1 IEC 60950-1
Built-in BluetoothBLE5.0
Operating humidity5% to 95% (non-condensing)
Security standards802.11i, Wi-Fi Protected Access 2(WPA2), WPA 802.1X Advanced Encryption Standards(AES), Temporal Key Integrity Protocol(TKIP) EAP Type(s)
External IoT module1 x USB External IoT module (supporting ZigBee and RFID)
Storage temperature– 40 ° C to +70 ° C
Atmospheric pressure53 kPa to 106 kPa
Operating temperature– 10 ° C to +50 ° C
Dimensions (H x W x D)47 mm x 200 mm x 200 mm
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this AirEngine 5760-10, Huawei AirEngine Series Access Point, 2.4G 2x2 + 5G 2x2, 11ax, Built-in Antenna (Huawei-AirEngine-5760-10) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This AirEngine 5760-10, Huawei AirEngine Series Access Point, 2.4G 2x2 + 5G 2x2, 11ax, Built-in Antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the AirEngine 5760-10, Huawei AirEngine Series Access Point, 2.4G 2x2 + 5G 2x2, 11ax, Built-in Antenna compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the Huawei-AirEngine-5760-10.
