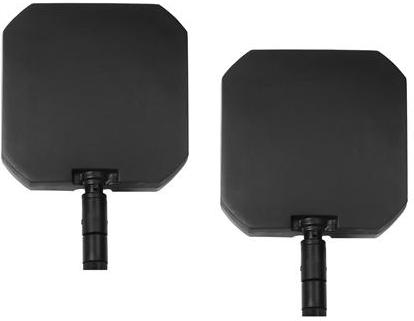

Vertiv Avocent HGA51G-DIR30 network antenna Directional antenna RP-SMA 8 dBi
Brand: Vertiv · SKU: HGA51G-DIR30 · MPN: HGA51G-DIR30 · Category: Components
Vertiv Avocent HGA51G-DIR30, 8 dBi, 5.8 GHz, 40°, 25°, Directional antenna, RP-SMA. Vertiv Avocent HGA51G-DIR30 network antenna Directional antenna RP-SMA 8 dBi (part number HGA51G-DIR30) is an enterprise components product available from Server Tech Central. Key specifications include depth 38 mm, width 114 mm, height 267 mm, weight 680 g, purpose Indoor & outdoor, antenna type Directional antenna, polarization Horizontal polarization, certification UL, cUL, FCC, CE. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 38 mm |
|---|---|
| Width | 114 mm |
| Height | 267 mm |
| Weight | 680 g |
| Purpose | Indoor & outdoor |
| Antenna type | Directional antenna |
| Polarization | Horizontal polarization |
| Certification | UL, cUL, FCC, CE |
| Frequency band | 5.8 GHz |
| Product colour | Black |
| Dimensions (WxDxH) | 114 x 38 x 267 mm |
| Compatible products | MPX1500T, MPX1500R, MPX1000T, MPX1000R |
| Antenna connector type | RP-SMA |
| Antenna gain level (max) | 8 dBi |
| Storage temperature (T-T) | -20 - 50 °C |
| Maximum operating distance | 305 m |
| Operating temperature (T-T) | 0 - 40 °C |
| Vertical beam width (5 GHz) | 25° |
| Horizontal beam width (5 GHz) | 40° |
| Warranty | 3-Year Warranty |
| Weight | 680 g |
| Dimensions | 114 mm x 38 mm x 267 mm |
Product Description
Extend wireless audio and video up to 1000 feet (305 m) line-of-sight with this optional directional antenna using the Emerge MPX HD multipoint extender. The Avocent Emerge HGA51G-DIR30 directional antennas work together with the MPX HD multipoint extender to provide line-of-sight extended distance capability when required by an installation. The Emerge HGA51G-DIR30 directional antenna works by focusing the energy of the antenna signal into an intensified unidirectional beam. In line-of-sight applications the directional antenna allows the MPX HD multipoint extender receiver to be placed up to 1000 feet from the transmitter. Optional Directional Antenna The optional HGA51G-DIR30 directional antenna ships with two antennas, one antenna for the device transmitter, and a second antenna for the device receiver. The directional antennas work in the 802.11a band and provide frequency ranges of 5.150 GHz to 5.825 GHz. Applications requiring extended distance benefit from using the directional antenna as it allows the user to install a display system without running wires around a room, or incur the expense of having to open walls to run conduit.
Key Features
Vertiv Avocent HGA51G-DIR30. Antenna gain level (max): 8 dBi, Frequency band: 5.8 GHz, Horizontal beam width (5 GHz): 40°. Antenna type: Directional antenna, Antenna connector type: RP-SMA, Polarization: Horizontal polarization. Certification: UL, cUL, FCC, CE. Width: 114 mm, Depth: 38 mm, Height: 267 mm. Dimensions (WxDxH): 114 x 38 x 267 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Vertiv Avocent HGA51G-DIR30 network antenna Directional antenna RP-SMA 8 dBi (HGA51G-DIR30) is 100% genuine Vertiv hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Vertiv Avocent HGA51G-DIR30 network antenna Directional antenna RP-SMA 8 dBi includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Vertiv Avocent HGA51G-DIR30 network antenna Directional antenna RP-SMA 8 dBi compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the HGA51G-DIR30.
