Brand: Dell · SKU: H710P · MPN: Varies by Part Number (e.g., 0N3V6G, TY8F9) · Category: Components

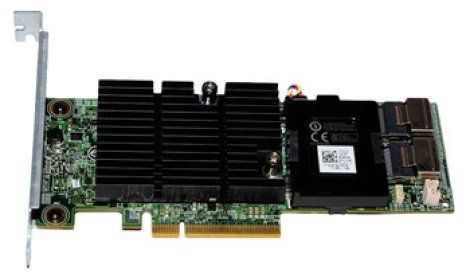

The Dell PERC H710P is a mid-range Internal RAID solution based on LSI's Thunderbolt (2208) ROC. It offers dual PPC 800 MHz cores and 6Gb/s SAS support. The adapter includes 1 GB of integrated 1333 MHz DDR3 cache and operates on the PERC 8.0 FW Stack. It supports RAID Levels 0, 1, 10, 5, 50, 6, and 60. Some variants (like those with P/N 0TY8F9, Rev D1 chipset) can support PCIe 3.0 x8, while others (like P/N 0N3V6G, Rev B0) support PCIe 2.0 x8. It works with SATA, SAS, and SSD drives and supports up to thirty-two drives across its eight internal ports. It also supports Self-Encrypting Drives (SED) and Non-Volatile Cache (NVCache) technology for power-loss data protection.
| Processor | LSI LSISAS2208 (Dual PPC 800 MHz cores) |
|---|---|
| Connectors | 8 internal ports, (2) 26-pin 4x Shielded Mini MultiLane SAS (SFF-8088) mentioned for external |
| PCI Support | PCI-Express 2.0 x8 (Some variants support PCIe 3.0 x8) |
| Cache Memory | 1GB NV (Non-Volatile) DDR3 |
| Controller Type | Internal RAID Controller |
| Interface Speed | 6Gb/s SAS/SATA |
| Max Drives Supported | Up to 32 drives |
| RAID Levels Supported | 0, 1, 10, 5, 50, 6, 60 |
| Warranty | Varies (e.g., 90 Days, 1 Year, 5 Years mentioned across different sellers/conditions) |
| Weight | 3.00 LBS (as per one listing) |
| Dimensions | N/A (Mini Mono form factor mentioned) |
The Dell PERC H710P is a high-performance, internal RAID controller designed for Dell PowerEdge 12th generation servers. It features 1GB of flash-backed cache, dual processor cores, and supports a wide array of RAID levels for robust data protection and performance. Its 6Gb/s SAS interface ensures fast data transfer rates, making it suitable for demanding database and streaming environments.
Yes, this Dell PERC H710P Integrated RAID Controller (H710P) is 100% genuine Dell hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Dell PERC H710P Integrated RAID Controller includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the H710P.
